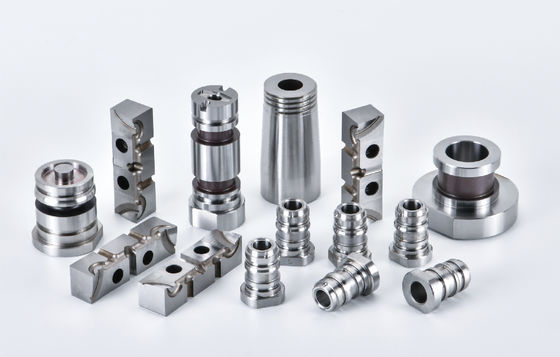

Cavity Insert & Sleeve for Plastic Injection Molds
Product Overview
A cavity insert & sleeve set is a precision mold component combination used to form critical geometry while improving mold serviceability and long-term stability. The cavity insert creates key external or functional surfaces of the molded part, while the sleeve provides guidance, protection, and controlled clearance around mating components—helping maintain repeatable alignment and reducing wear in high-cycle production.
We manufacture custom cavity inserts and sleeves strictly to customer drawings. For injection molds that require tight tolerances, clean shut-offs, and consistent part quality, we focus on the essentials: datum accuracy, fit control, surface finish, hardness, and interchangeability—so inserts can be replaced quickly and perform consistently across multi-cavity molds.
Product Description
A cavity insert is a replaceable forming component installed on the cavity side (fixed half) or integrated into a cavity plate to shape the molded part's outer features. Using inserts allows mold makers to replace wear-prone or design-critical areas without reworking the full mold block.
A sleeve (often used as a guiding or protective element) is typically paired with a pin/core/interface component to stabilize movement, manage wear, and keep a controlled fit over long production cycles. Depending on the mold design, sleeves can also help control shut-off behavior and reduce galling at sliding surfaces.
Typical Functions
- Maintain precise shut-off and sealing performance (design-dependent)
- Improve mold maintenance efficiency through replaceable components
- Protect high-wear areas and extend mold service life
- Support stable assembly fit via controlled datums and interfaces
- Provide consistent performance across multi-cavity tooling
Common Design Features
- Locating shoulders/diameters for repeatable installation
- High-finish forming areas on the cavity insert (as specified)
- Sleeve guiding surfaces with controlled clearance and wear zones
- Optional grooves, ports, or interface features per mold design
Materials and Treatments
Material selection depends on corrosion risk, wear conditions, required polish level, and expected cycle count. Typical choices include stainless mold steels for corrosion resistance and polish stability, and tool steels for wear resistance and toughness. Heat treatment and optional coatings can be applied to meet your durability and release requirements.
Applications
Cavity insert & sleeve components are used in plastic injection molds for:
- Insert-based mold designs requiring replaceable forming sections
- High-cycle molds where wear management and maintenance speed matter
- Multi-cavity tooling requiring consistent cavity-to-cavity performance
- Mold refurbishment and spare parts replacement programs
- Molds with tight shut-offs or precision interfaces that demand stable fits
(Exact molded products vary by customer design; we manufacture to your drawings and mold architecture.)
Precision & Manufacturing Capabilities
Manufacturing Processes
- Precision CNC milling/turning for profiles and interfaces
- Grinding for critical fits, datums, and sealing lands
- EDM / wire EDM for special geometry and sharp features (as required)
- Heat treatment coordination for hardness and dimensional stability
- Polishing/fine finishing for forming surfaces
- Set matching and consistency control for multi-cavity orders
Key Quality Controls
- Datum-based machining for repeatable installation and interchangeability
- Fit tolerance control between sleeve interfaces and mating components
- Surface finish management for forming and sliding areas
- Flatness/parallelism control, where relevant to mold closing and shut-off
- Consistency checks across multiple pieces (sampling or 100% inspection options)
Inspection & Documentation
- Dimensional inspection reports available (key features or full report)
- Material certificates and heat treatment records upon request
- Part marking and traceability options for set management
Customer Value for Insert-Based Mold Maintenance
- Faster maintenance and lower downtime - Replaceable cavity inserts and sleeves allow targeted replacement without reworking large mold blocks, keeping production schedules stable.
- Better part consistency over long runs - Controlled datums and stable fit interfaces reduce variation that can lead to flash, mismatch, or dimensional drift.
- Longer mold life with wear protection - Sleeves protect wear-prone guiding and interface zones, helping reduce galling and extending service intervals.
- More predictable production performance - High-quality finishing and correct hardness improve release stability and reduce unexpected stoppages.
What We Need for Quotation
To quote cavity inserts and sleeves accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawings (PDF/DWG)
- Component list and quantity (insert + sleeve, number of sets)
- Material requirements (or operating conditions for recommendation)
- Heat treatment/target hardness specification
- Surface finish requirement (Ra / polishing level for forming zones)
- Critical tolerances (datums, fits, shut-off dimensions, runout if applicable)
- Mold interface details (locating diameters/shoulders, retention method, mating sizes)
- Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If these are replacement parts, providing mating plate and component interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Do you manufacture strictly to customer drawings and tolerances?
Yes. We manufacture according to your drawings, GD&T, and datum references. If tolerances are not specified, we can propose a practical tolerance plan for approval.
Are you a manufacturer or a trading company?
We are a custom precision mold components manufacturer with CNC machining, EDM (as needed), grinding, and finishing capabilities.
Can you provide inspection reports and material certificates?
Yes. Dimensional inspection reports and material/heat treatment certificates can be provided upon request.
Why use a cavity insert instead of machining the cavity directly in the mold plate?
Inserts improve maintainability—wear-prone or design-critical areas can be replaced or updated without reworking the entire plate, reducing downtime and cost.
What is the role of the sleeve in this system?
The sleeve typically provides guidance and wear protection, maintaining controlled clearance and helping stabilize interfaces over high-cycle operation.
Can you supply matched sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key dimensions.
Engineering Contact
Send your drawings and indicate critical shut-offs, fit clearances, and surface finish requirements. Our engineers will review manufacturability and propose a production plan for stable insert performance and long service life.
