Hardened Steel Mold Inserts for Custom Injection Molds
Product Overview
Hardened steel mold inserts are precision tooling components used in custom injection molds where wear resistance, dimensional stability, and long service life are required. Compared with pre-hardened or softer materials, hardened inserts are better suited for high-cycle production, tight tolerances, and demanding molding conditions that can cause rapid wear at forming edges, shut-offs, and sliding interfaces.
We manufacture custom hardened steel mold inserts strictly to customer drawings, focusing on the key requirements that determine molding performance: datum accuracy, fit control, concentricity/runout, surface finish, and stable heat treatment results. Whether used as core inserts, cavity inserts, or wear-zone inserts (design-dependent), our parts are produced for repeatable installation and reliable long-run output.
Product Description
A mold insert is a replaceable forming or functional component installed into a mold plate. Inserts are widely used because they simplify maintenance: the wear-prone or design-critical area can be replaced without reworking the entire mold block.
"Hardened steel" inserts are produced from tool steels that undergo heat treatment to reach a specified hardness, improving resistance to:
- Edge wear at parting lines and shut-offs
- Erosion from high-flow gates or abrasive resins (project-dependent)
- Galling and friction at contact interfaces
- Dimensional drift during long production runs
Common Hardened Insert Forms

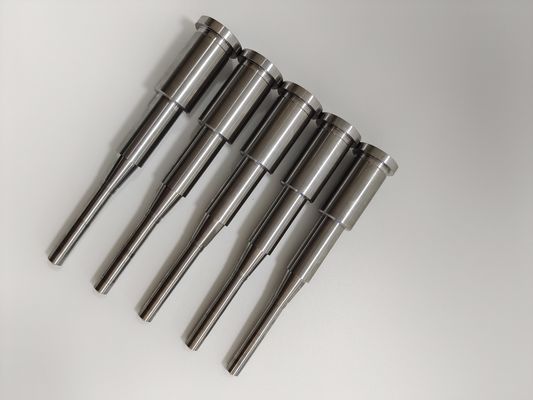

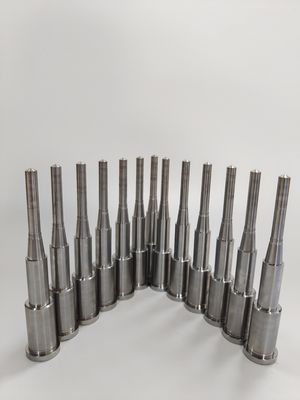

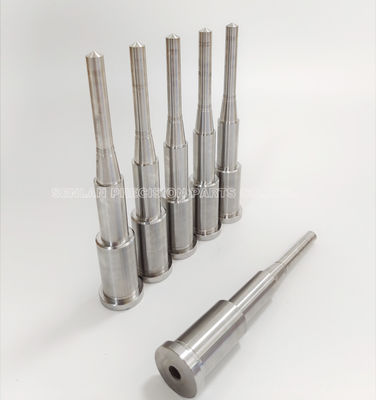

- Core inserts / core pins for internal geometry forming
- Cavity inserts for external surfaces and cosmetic features
- Wear inserts at shut-offs, slides, and high-contact zones
- Inserts with shoulders, locating diameters, or retention features for repeatable assembly
Heat Treatment and Stability Considerations
For hardened inserts, heat treatment is not only about reaching hardness—it is also about maintaining dimensional stability and minimizing distortion. We coordinate the full process route (machining allowance, heat treatment, stress relief where needed, and post-HT finishing) based on your tolerance requirements.
Applications
Hardened steel mold inserts are used in custom injection molds for:
- High-cycle production molds requiring long wear life
- Molds with tight shut-offs and precision parting lines
- Inserts in high-stress or high-wear areas (gates, edges, sliding interfaces)
- Multi-cavity molds requiring consistent insert-to-insert repeatability
- Maintenance programs using interchangeable spare inserts
(End products vary by customer design; we manufacture to your mold architecture and drawings.)
Precision & Manufacturing Capabilities
Hardened inserts often require post-heat-treatment finishing to achieve final tolerances and surface quality.
Manufacturing Processes
- CNC turning/milling for profiles and interfaces
- Heat treatment coordination for target hardness and stability
- Grinding for critical fits, datums, and sealing lands
- EDM / wire EDM for special geometries (as required)
- Polishing / fine finishing for forming surfaces
- Set matching and consistency control for multi-piece orders
Key Quality Controls
- Datum-based machining to ensure repeatable installation
- Fit tolerance control (locating diameters/shoulders) for interchangeability
- Concentricity/runout control for coaxial features (where applicable)
- Flatness/parallelism control for interface surfaces (as required)
- Surface finish management to support release stability and wear life
- Inspection strategy options (sampling or 100% inspection) based on your requirements
Inspection & Documentation
- Dimensional inspection reports available (key dimensions or full report)
- Material certificates and heat treatment records upon request
- Marking/traceability options for cavity and set management
Customer Value for Long-Run Mold Reliability
- Longer service life and fewer rebuilds - Hardened inserts resist wear at edges and shut-offs, helping maintain stable performance over long cycles.
- Better dimensional stability in production - Proper heat treatment and post-HT finishing help maintain critical dimensions and reduce drift.
- Lower downtime through replaceable insert design - When wear occurs, inserts can be replaced quickly—reducing maintenance time and protecting production schedules.
- More consistent output in multi-cavity molds - Matched hardened insert sets reduce cavity-to-cavity variation and improve yield in high-volume production.
What We Need for Quotation
To quote hardened steel mold inserts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Insert type/location (core/cavity/wear insert) and quantity (single or sets)
- Material requirement (or operating conditions for recommendation)
- Heat treatment / target hardness specification
- Critical tolerances and GD&T (datums, fits, runout, shut-off dimensions)
- Surface finish requirement for forming areas (Ra / polishing level)
- Mold interface details (locating diameter/shoulder, retention method, mating dimensions)
- Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If this is a replacement insert, providing the mating plate interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
What's the advantage of hardened inserts compared with pre-hardened steel?
Hardened inserts generally offer higher wear resistance and longer service life in high-cycle molds, especially at edges, shut-offs, and wear zones.
Will heat treatment cause distortion?
Heat treatment can cause dimensional change if not managed properly. We plan machining allowances and post-HT finishing steps to achieve final tolerances.
Can you supply matched sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key features.
Do you provide inspection reports and heat treatment records?
Yes. Inspection reports and material/heat treatment certificates are available upon request.
Send us your STEP/2D drawings, insert quantities, target hardness, tolerance/finish requirements, and required delivery date. We'll reply quickly with a clear quotation, lead time, and available quality documentation options for hardened steel mold inserts.
