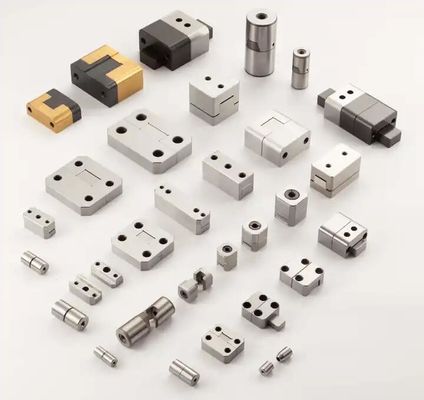

PL & SSI Standard Square Interlocks - Injection Mold Side Lock

Product Overview

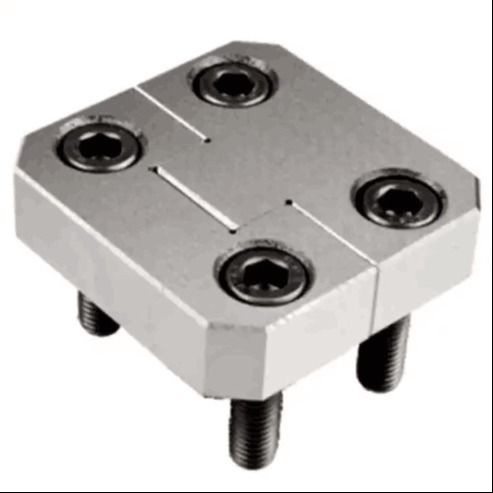

The PL / SSI standard square interlock side lock is a precision locating block designed for accurate positioning and alignment of plastic injection molds.
Manufactured according to PL / SSI standards or strictly to customer drawings, this mold positioning component ensures repeatable mold closing accuracy, improved lateral stability, and reliable performance in multi-cavity, high-cycle injection molding applications for packaging and medical products.

Key Features & Technical Advantages

• Manufactured to PL / SSI standard or built-to-print specifications

• Square interlock side lock design for precise mold positioning

• Improves lateral alignment and reduces mold shifting

• Enhances cavity-to-cavity consistency in multi-cavity molds

• Suitable for high-cycle and continuous injection molding

• Compatible with automated molding and high-output production lines

Applications & Industries

This square interlock locating block is widely used in injection molds for:

• Bottle caps and closure molds

• Packaging containers and functional plastic components

• Medical disposable and syringe-related molds

• Injection molds requiring accurate side locking and positioning

Typical customers include packaging manufacturers, cap and closure producers, medical consumable factories, and OEM injection mold makers.

Mold Structure & Design Description

The square interlock side lock is installed on the side of the mold base to control lateral movement during mold closing and injection.
Its interlocking structure ensures precise alignment between mold halves, helping prevent offset, reduce flash, and improve overall mold stability.
Design considerations include interlock clearance, wear resistance, load distribution, and compatibility with multi-cavity mold structures.

Manufacturing & CNC Machining Capability

All locating blocks and side lock components are manufactured in-house using precision CNC machining and controlled finishing processes.

Manufacturing capabilities include:

• Precision CNC milling and turning

• Tight tolerance control on interlock and contact surfaces

• Precision grinding for accurate fit and repeatability

• Stable machining processes for standard and custom mold components

In-house inspection equipment is used throughout production to ensure dimensional accuracy and functional consistency.

Custom Development & OEM Cooperation Process

We provide full OEM and built-to-print manufacturing support for mold locating blocks and side lock components:

1. Review of PL / SSI standard requirements or customer drawings

2. Engineering evaluation and manufacturability confirmation

3. Precision CNC machining and finishing

4. Dimensional and functional inspection

5. Packaging and delivery for overseas mold assembly

All products are manufactured strictly according to customer specifications or applicable standards.

Quality Control & Export Experience

Quality control is integrated throughout the manufacturing process, including:

• Incoming raw material inspection

• In-process dimensional verification

• Final inspection prior to shipment

Our mold locating components are widely supplied for export-oriented packaging and medical mold projects, supporting overseas mold assembly and international manufacturing standards.

Related Products (Internal Links)

• Precision Mold Locating Units

• Injection Mold Square Interlocks

• Multi-Cavity Injection Mold Components

• CNC Machined Mold Standard Parts

Frequently Asked Questions (FAQ)

Q1: Can you manufacture PL / SSI square interlock side locks according to customer drawings?
Yes. All locating blocks and side locks can be manufactured strictly according to customer drawings or standard specifications.

Q2: Are these side locks suitable for multi-cavity injection molds?
Yes. They are designed to maintain stable lateral positioning and repeatability in multi-cavity mold systems.

Q3: What materials and surface treatments are available?
Material selection and surface treatments can be customized based on mold design and operating conditions.

Q4: Do you support overseas mold projects and export delivery?
Yes. Our mold positioning components are commonly supplied for export mold projects and overseas injection molding production lines.

Request a Technical Quotation

Please send us your drawings or PL / SSI standard requirements to receive a professional technical evaluation and quotation for custom injection mold locating blocks and square interlock side locks.
