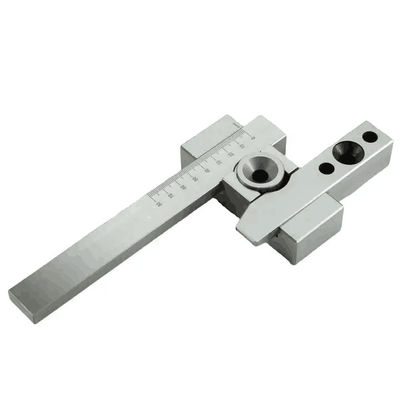

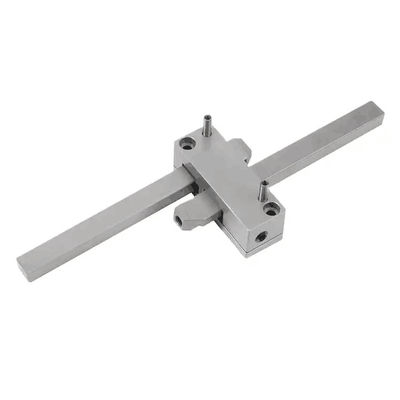

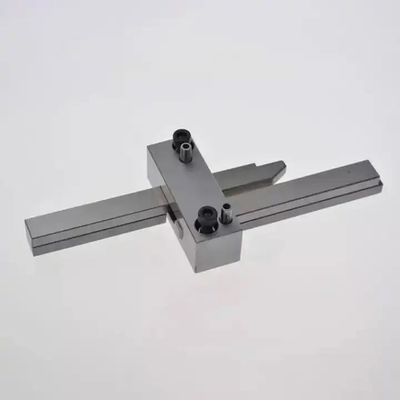

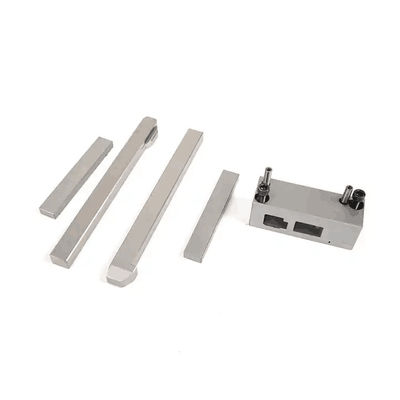

GS Series Latch Locks – Two-Stage Opening Mold Locking Unit

The DIN GS latch lock unit is a high-performance mold locking accessory designed for secure and reliable mold closure in plastic injection molds.
Manufactured according to DIN standards or built-to-print specifications, this latch lock ensures precise mold locking and easy mold assembly, making it ideal for high-cycle, multi-cavity molding applications in packaging, medical, and industrial sectors.

• Manufactured to DIN standards or built-to-print specifications

• High-performance locking mechanism for secure mold closure

• Easy mold assembly and disassembly for quick cycle time

• Made from durable, wear-resistant materials for long-lasting performance

• Suitable for multi-cavity molds and high-cycle molding applications

• Compatible with automated injection molding systems

• Precision CNC machining for tight tolerance control and reliable functionality

The DIN GS latch lock unit is widely used in plastic injection molds for:

• Bottle caps and closures

• Packaging containers and thin-wall plastic components

• Medical disposables and syringe-related products

• Injection molds requiring secure locking and easy mold assembly

Typical customers include packaging manufacturers, cap and closure producers, medical consumable factories, and OEM injection mold makers.

The DIN GS latch lock unit is designed to provide a secure locking mechanism that holds the mold halves in place during injection molding cycles.
It features a positive-locking system that ensures stable mold closure, reducing the risk of mold misalignment and defects in the molded parts.
Key design considerations include tolerance control, fit accuracy, and compatibility with multi-cavity molds to ensure smooth operation and repeatable locking performance.

All latch lock units are manufactured using precision CNC machining and high-strength materials to meet industry standards.

Manufacturing capabilities include:

• CNC milling and turning of mold components

• High-quality steel and wear-resistant alloys for durability

• Tight tolerance control for precise fit and locking functionality

• Precision grinding to ensure smooth, reliable operation

In-house inspection ensures dimensional accuracy and consistent performance during manufacturing.

We offer full OEM and built-to-print services for custom latch lock units:

1. Review of DIN standards or customer drawings

2. Engineering evaluation and manufacturability confirmation

3. CNC machining and component finishing

4. Dimensional and functional inspection to ensure proper locking performance

5. Packaging and shipping for overseas mold assembly

All products are custom-manufactured to customer specifications or standard mold requirements.

Quality control is embedded throughout the entire manufacturing process:

• Incoming raw material inspection

• In-process checks for dimensional and functional accuracy

• Final inspection to verify locking mechanism function and fit

Our latch lock units are widely supplied for export-oriented mold projects, supporting overseas mold assembly and global production lines.

• Injection Mold Positioning Components

• Precision Mold Core and Cavity Components

• Multi-Cavity Injection Mold Parts

• CNC Machined Mold Standard Components

Q1: Can you manufacture latch lock units according to customer drawings?
Yes, we provide custom manufacturing based on customer drawings or DIN standards.

Q2: What materials are used for latch lock units?
We use high-strength, wear-resistant materials suitable for high-cycle injection molds, ensuring durability and reliability.

Q3: Are these latch locks suitable for multi-cavity molds?
Yes, the DIN GS latch lock units are designed to function in multi-cavity molds, ensuring secure locking and smooth mold operation.

Q4: Do you support overseas mold projects and export delivery?
Yes, we support overseas mold assembly and international shipping for our mold locking components.

Please send us your drawings or standard mold requirements to receive a detailed technical evaluation and quotation for custom DIN GS latch lock units for plastic injection molds.
