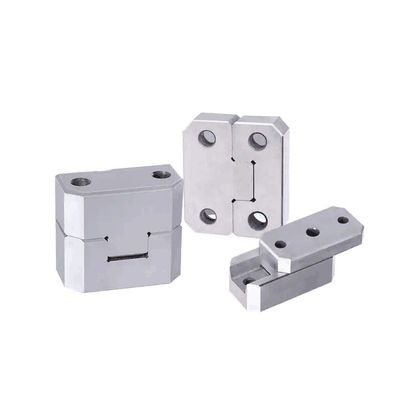

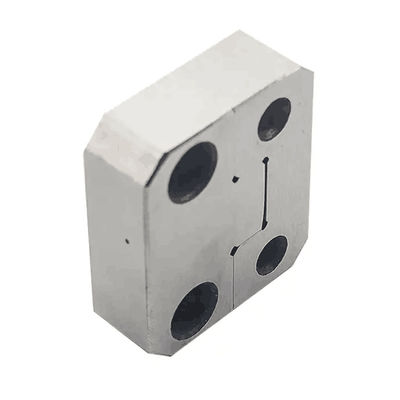

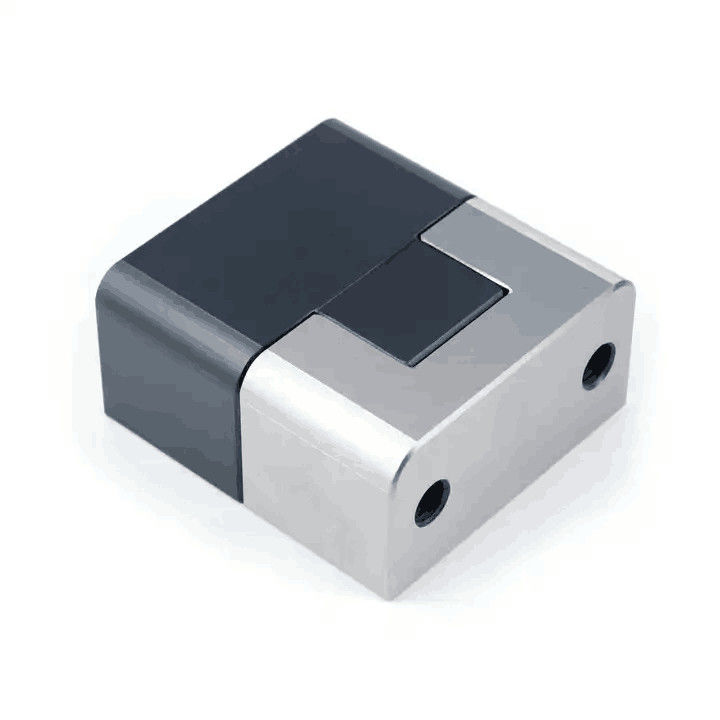

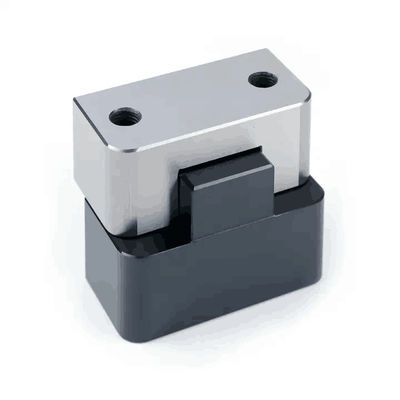

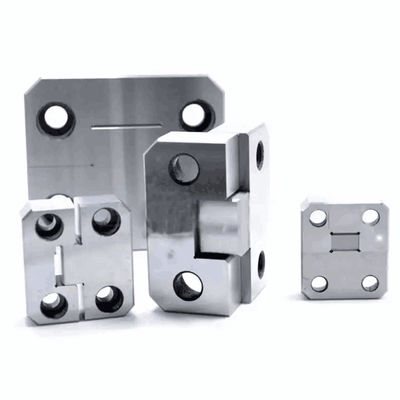

BGS Series Square Interlocks - Precision Locating Blocks for Injection Molds

The BGS square interlock positioning block is a precision mold locking component used in plastic injection molds to ensure precise mold alignment and secure mold closure.
Manufactured according to customer specifications or standard mold requirements, these locating blocks provide reliable mold positioning, ensuring high performance in multi-cavity, high-cycle injection molding applications for packaging, medical, and industrial products.

• Manufactured to custom specifications or standard mold requirements (built-to-print)
• Square interlock design for secure mold positioning and alignment
• Durable, high-strength materials for long-lasting performance
• Provides stable mold closure and prevents misalignment during injection cycles
• Ideal for use in multi-cavity molds and high-cycle molding operations
• Precision CNC machining for tight tolerance control and reliability
• Enhanced wear resistance to ensure smooth operation and minimal maintenance

The BGS square interlock positioning block is widely used in plastic injection molds for:

• Bottle caps and closures
• Packaging containers and thin-wall plastic parts
• Medical disposables and syringe-related products
• Injection molds requiring secure mold positioning and alignment

Typical customers include packaging manufacturers, cap and closure producers, medical consumable factories, and OEM injection mold makers.

The BGS square interlock positioning block is integrated into the mold structure to ensure precise mold alignment during mold opening and closing.
The square interlock design locks the mold halves securely in place, ensuring repeatable and consistent mold positioning throughout the injection cycle.
Key design considerations include tolerance control, material selection, and compatibility with multi-cavity molds, ensuring the locking component performs consistently in high-cycle molding operations.

All positioning blocks are manufactured using precision CNC machining and high-quality materials to meet the highest standards for mold components.

Manufacturing capabilities include:

• CNC milling and turning for mold components
• Material selection for strength and durability
• Precision grinding to ensure smooth, accurate mold positioning
• Tight tolerance control to ensure proper fit and performance

In-house quality control ensures that all parts meet dimensional accuracy and functional performance.

We provide full OEM and built-to-print services for custom BGS square interlock positioning blocks:

1. Review of customer drawings or standard mold specifications
2. Engineering evaluation and manufacturability assessment
3. Precision CNC machining and component finishing
4. Dimensional and functional inspection for accurate fit and alignment
5. Packaging and shipping for overseas mold assembly

All products are custom-manufactured according to customer requirements or standard mold specifications.

Quality control is integrated throughout the entire manufacturing process:

• Incoming raw material inspection
• In-process checks for dimensional accuracy and mold functionality
• Final inspection to ensure the positioning blocks meet specifications and performance standards

Our BGS square interlock positioning blocks are widely used in export-oriented mold projects, supporting overseas mold assembly and global production standards.

• Injection Mold Positioning Components
• Mold Locking Mechanisms
• Multi-Cavity Mold Parts
• CNC Machined Mold Standard Components

Q1: Can you manufacture positioning blocks according to customer drawings?
Yes, we provide custom-built positioning blocks based on customer drawings or standard mold requirements.

Q2: What materials are used for the BGS square interlock positioning blocks?
We use high-strength, durable materials that are designed for high-cycle injection molding and long-term mold performance.

Q3: Are these positioning blocks suitable for multi-cavity molds?
Yes, the BGS square interlock positioning blocks are designed for use in multi-cavity molds, ensuring secure alignment and consistent mold performance.

Q4: Do you support overseas mold projects and export delivery?
Yes, we offer global shipping and support overseas mold assembly for our mold components.

Please send us your drawings or standard mold requirements to receive a detailed technical evaluation and quotation for custom BGS square interlock positioning blocks for plastic injection molds.
