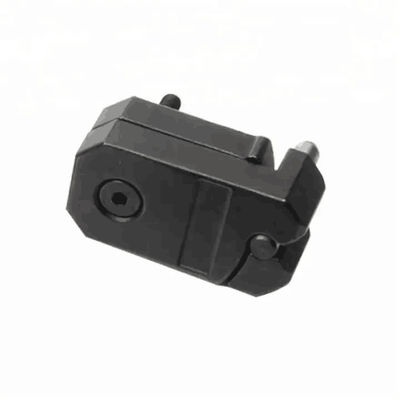

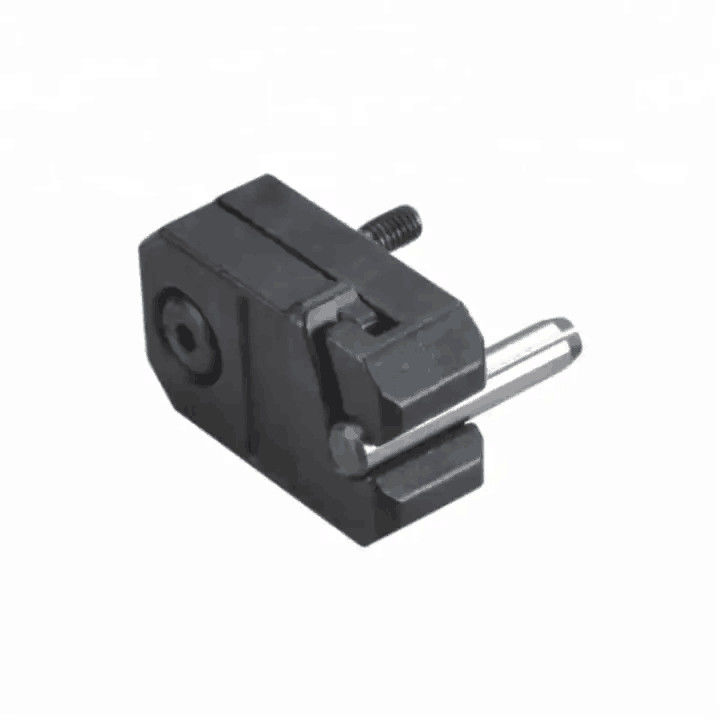

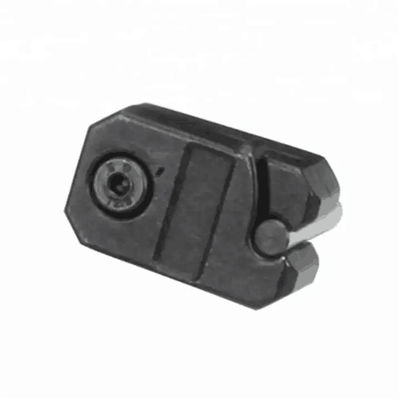

PSM PSL Slide Retainers - Precision Positioning Units for Plastic Injection Molds

The PSM PSL Model Slide Retainer is an essential mold component designed for precise slide retention in plastic injection molds. Manufactured to DME standards, these retainers ensure smooth, reliable operation during injection molding processes, making them ideal for multi-cavity molds used in high-cycle applications for industries such as packaging, medical devices, and consumer goods.

• Manufactured to DME standards for consistent performance and precision

• CNC machined for tight tolerances and high accuracy

• Durable materials designed for long-lasting wear resistance

• Provides secure slide retention and smooth operation during molding cycles

• Ideal for use in multi-cavity molds and high-cycle injection molding applications

• Corrosion-resistant coatings available for extended mold life

• Easy integration into existing mold systems for improved operational efficiency

The PSM PSL Model Slide Retainer is used in a variety of plastic injection molding applications, including:

• Bottle caps and closures

• Packaging containers and thin-wall plastic components

• Medical disposables and syringe-related components

• Injection molds that require precise slide retention and secure mold closure

These components are used by manufacturers in the packaging, medical, and industrial sectors, as well as OEM injection mold makers.

The PSM PSL Model Slide Retainer is integrated into the injection mold to securely retain the mold slides during the injection process.
The component is engineered to provide smooth, repeatable movement while ensuring secure mold alignment and efficient part ejection.
Key design considerations include:

• Positive slide retention for accurate positioning and stable mold operation

• Durable, high-strength materials for wear resistance under high pressures

• Low friction surfaces for efficient operation with minimal wear

• Compatibility with multi-cavity and complex mold configurations

• Easy integration into existing mold setups

These features ensure reliable mold operation and consistent part quality throughout the production process.

The PSM PSL Model Slide Retainer is produced using precision CNC machining and high-quality materials to meet DME standards and customer specifications.

Manufacturing capabilities include:

• CNC turning and milling for high-precision mold components

• Material selection for optimal strength, durability, and wear resistance

• Tight tolerance control to ensure a secure fit and stable operation in high-cycle molding

• Precision grinding to ensure smooth sliding and low friction

In-house quality control ensures that each component meets dimensional accuracy and performance standards.

We provide OEM and built-to-print services for custom slide retainers:

1. Review of customer drawings or industry standards (such as DME)

2. Engineering evaluation and manufacturability confirmation

3. CNC machining, material selection, and component finishing

4. Dimensional and functional inspection to ensure the retainers meet all specifications

5. Packaging and shipping for overseas mold assembly

All products are custom-manufactured according to customer specifications or standard mold requirements.

Quality control is integrated into every phase of the manufacturing process:

• Incoming raw material inspection to ensure top-quality materials

• In-process checks to monitor dimensional accuracy and slide retention functionality

• Final inspection to ensure the components meet performance and reliability standards

Our PSM PSL Model Slide Retainers are widely used in export-oriented mold projects, supporting global production standards and overseas mold assembly.

• Injection Mold Positioning Components

• Plastic Injection Mold Parts

• CNC Machined Mold Components

• Multi-Cavity Injection Mold Parts

Q1: Can you manufacture slide retainers based on customer drawings?
Yes, we offer custom-built slide retainers based on customer drawings or industry standards such as DME.

Q2: What materials are used for the PSM PSL Model Slide Retainers?
We use high-strength materials designed for high-cycle injection molding, ensuring wear resistance and long-term durability.

Q3: Are these slide retainers compatible with multi-cavity molds?
Yes, the PSM PSL Model Slide Retainers are designed to function in multi-cavity molds, ensuring precise slide retention and stable mold operation.

Q4: Do you support overseas mold projects and export delivery?
Yes, we have extensive experience supporting overseas mold assembly and offering international shipping for our mold components.

Please send us your drawings or standard mold requirements to receive a detailed technical evaluation and quotation for custom PSM PSL Model Slide Retainers for plastic injection molds.
