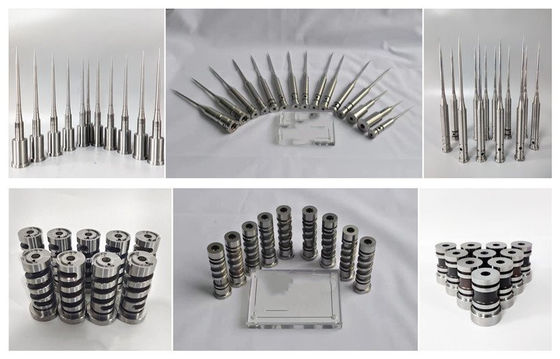

Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components

Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components
Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components
Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components

Large Image :  Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-20working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components

Description
Mold Parts: Core Pins Material: Stavax
Usage: Medical Mold Parts Color: Silver
Cavity: Multi-cavity Mold Parts Processing: EDM
Tolerence: +/-0.005mm Surface Treatment: Polishing
Highlight:

Nitriding Mold Parts

,

Stavax Core Pins

,

0.01mm Concentricity Plastic Mold Parts

Nitriding Mold Parts Jet Cooling Core Pins 0.01mm Concentricity For Plastic Mold Parts
Core pins are under high thermal stress during the casting process, especially in small diameter applications where they frequently suffer breakage, sticking, and adherence to casting metal.
Specification Of Mold Core Pin
Material Carbide, ASP23, SKD11, SKD61, HSS, M2, D2, SUJ2, S45C etc
Standard DIN, MISUMI, EDM, MOELLER, HASCO etc
Size Depend on your drawings or products standard
Place of origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.002mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Purchase Core Pins Process Chart
Production Process Description
1. 3D Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations Including the price of mold components for cores & cavities, weight of product, payment, lifetime, delivery, etc.
3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold components Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start production
5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot We provide the moulds Components test samples for confirmation (about 1-2piece), then, get your signature sample, mass production
7. Package Cartons box for parts, or as your requirement
8. Delivery Deliver goods by air or by sea. Express
Frequently Asked Questions
Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock, or 16-23 days if the goods are not in stock, depending on quantity and your customization needs.
Q2: Do You Have Any Office In My Country?
A: We have no office in other countries now, but with 15 years of development, we have become one of the leading manufacturers for plastic mold parts in Dongguan city, exporting to nearly 35 countries. Each component is tested through strict quality control before delivery.
Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as special reports you require from third party inspection companies.
Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal.
Nitriding Mold Parts Jet Cooling Core Pins with 0.01mm Concentricity for Plastic Mold Components 0
