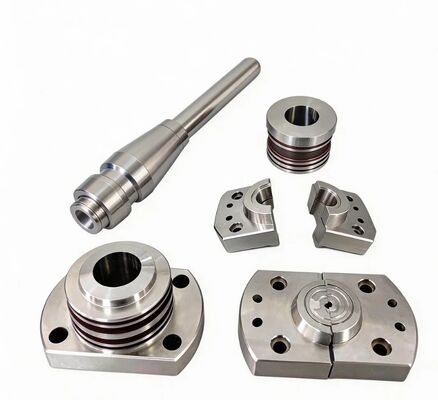

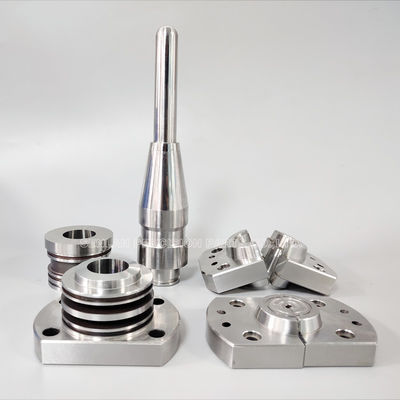

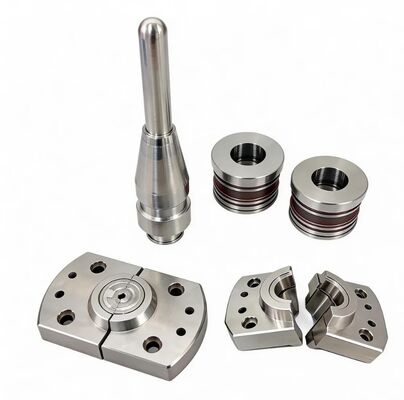

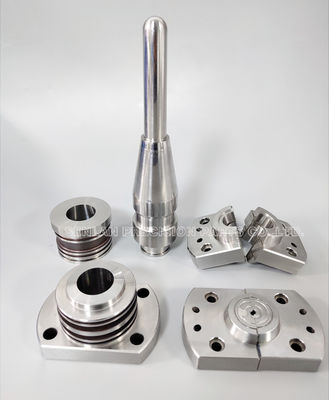

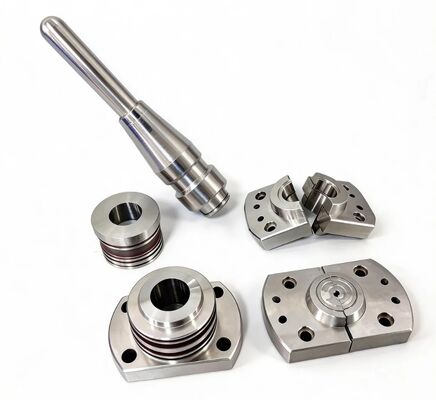

H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance

H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance
H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance
H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance

Large Image :  H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-399
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

H13 PET Preform Mold Assembly Components with Corrosion Resistance, High Toughness, and Thermal Fatigue Resistance

Description
Parts Name: Precision Mold Components Material: S136
Hardness: 48-52HRC Process: CNC Turning
Application: Plastic Mould Size: Customized
Highlight:

Pet Preform Precision Mold Core Inserts

,

High Precision S136 Cavity Inserts

,

Pet Preform Precision Mold Components

H13 PET Preform Mold Assembly Components
Precision mold assembly components designed for PET preform injection molds, manufactured from H13 tool steel for superior toughness and thermal fatigue resistance.
Product Overview
PET preform molds require precisely matched assembly components to maintain stable dimensional control, reliable alignment, and consistent production performance. Our H13 PET preform mold assembly components are custom-manufactured for injection mold systems where toughness, thermal fatigue resistance, and long service life are essential.
H13 tool steel reduces chipping risk, supports stable shut-offs, and maintains performance over high cycle counts. Components are manufactured strictly to customer drawings with controlled processes for fit, datums, concentricity, and surface integrity.
Assembly Components
A preform mold assembly consists of precision components that work together to form critical features and maintain alignment:
  • Core-side forming components (core elements and interfaces)
  • Cavity/neck-related interfaces and supporting plates
  • Retainers, sleeves, bushings, and alignment-related parts
  • Shut-off and sealing interface components
  • Mounting plates or precision interface blocks
Why H13 Tool Steel
H13 is ideal for assemblies where repeated cycling and contact stress can cause damage:
  • High toughness to resist cracking and edge chipping
  • Strong thermal fatigue resistance for repeated heating/cooling cycles
  • Good wear performance after proper heat treatment
  • Stable long-run behavior when heat treatment and finishing are controlled
Final hardness, tolerances, and surface finish are produced to your drawing and application requirements.
Applications
  • PET preform mold tooling and replacement component sets
  • High-cycle injection molds requiring tough, durable assembly parts
  • Molds with tight shut-offs and repeated thermal cycling
  • Maintenance programs using interchangeable spare assemblies
Exact mold architecture varies by customer design; we manufacture to your drawings and interface requirements.
Manufacturing Capabilities
Assembly components require tight tolerances and controlled post-heat-treatment finishing:
Manufacturing Processes
  • CNC milling and turning for profiles and interfaces
  • Heat treatment coordination for target hardness and stability
  • Grinding for critical datums, fits, and sealing lands
  • EDM / wire EDM for special geometry (as required)
  • Surface finishing and polishing where functional surfaces demand it
  • Matching and verification for multi-piece assembly interfaces
Quality Controls
  • Datum-based machining to maintain assembly alignment
  • Concentricity/runout control for coaxial features
  • Flatness/parallelism control for plate interfaces
  • Fit tolerance control to reduce hand fitting and ensure interchangeability
  • Inspection strategy options (sampling or 100% inspection)
Customer Benefits
  • More stable assembly fit and reduced downtime - Accurate interfaces reduce hand fitting and enable quick component replacement
  • Longer service life in high-cycle production - H13 toughness protects stress-prone zones and supports long-run stability
  • Better dimensional consistency - Stable datums and controlled fits help maintain critical dimensions and reduce drift
  • Predictable maintenance - Matched component sets simplify spare management and reduce replacement variability
Quotation Requirements
To provide an accurate quotation for H13 preform mold assembly components, please provide:
  • 3D CAD (STEP/IGES) and 2D drawings (PDF/DWG)
  • Assembly component list and quantities
  • Material requirement: H13 (confirm acceptable equivalents if any)
  • Heat treatment/target hardness specification
  • Surface finish requirements for functional zones (Ra / polishing level)
  • Critical tolerances and GD&T (datums, fits, runout, sealing/shut-off zones)
  • Mold interface details (locating features, retention method, mating dimensions)
  • Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
  • Lead time and packaging requirements
For replacement components, providing mating interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Is H13 suitable for PET preform mold assembly components?
H13 is widely used for mold components that require toughness and thermal fatigue resistance under repeated cycling. Suitability depends on your mold design and operating conditions, but it is a common and proven option.
Will heat treatment affect assembly fit?
Heat treatment can cause dimensional change if not managed. We plan machining allowances and post-heat finishing to achieve final tolerances.
Can you supply matched sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key assembly interfaces.
Do you provide inspection reports and certificates?
Yes. Inspection reports, material certificates, and heat treatment records are available upon request.
Send us your STEP/2D drawings, assembly part list, quantities, target hardness, tolerance/finish requirements, and required delivery date. We'll reply quickly with a clear quotation, lead time, and available quality documentation options for H13 PET preform mold assembly components.
