H13 PET Preform Mold Assembly Components
Precision-engineered mold assembly components designed for PET preform injection molds, manufactured from H13 tool steel for superior toughness and thermal fatigue resistance.
Product Overview
PET preform molds require precisely matched assembly components to maintain dimensional stability, reliable alignment, and consistent production performance. Our H13 PET preform mold assembly components are custom-manufactured for injection mold systems where toughness, thermal fatigue resistance, and long service life are essential.
H13 tool steel reduces chipping risk, supports stable shut-offs, and maintains performance over high cycle counts. Components are manufactured to customer drawings with controlled processes for fit, datums, concentricity, and surface integrity.
Typical Assembly Components

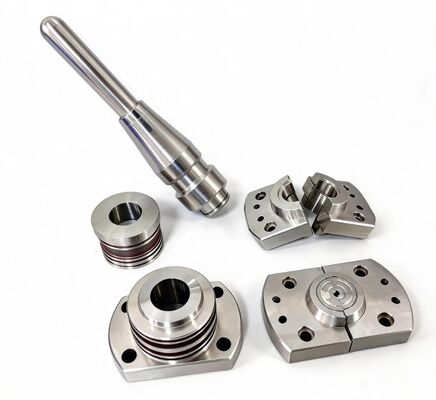

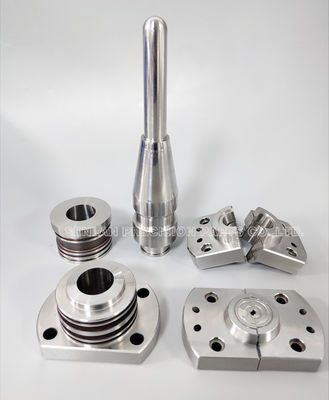

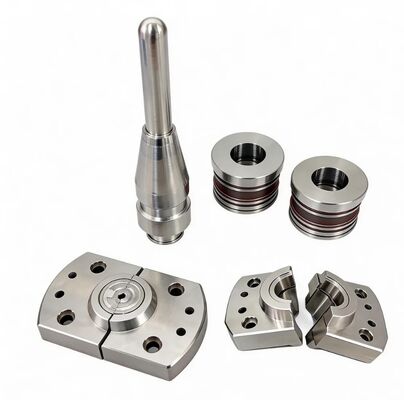

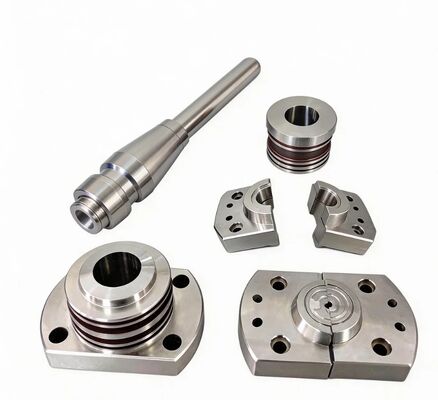

- Core-side forming components (core elements and interfaces)
- Cavity/neck-related interfaces and supporting plates
- Retainers, sleeves, bushings, and alignment-related parts
- Shut-off and sealing interface components
- Mounting plates or precision interface blocks
H13 Steel Advantages
- High toughness to resist cracking and edge chipping
- Strong thermal fatigue resistance for repeated heating/cooling cycles
- Excellent wear performance after proper heat treatment
- Stable long-run behavior with controlled heat treatment and finishing
Manufacturing Focus
We prioritize controlled datum relationships, repeatable fit surfaces, stable shut-offs, and consistency across sets for multi-cavity tooling to ensure optimal assembly performance.
Applications
- PET preform mold tooling and replacement component sets
- High-cycle injection molds requiring tough, durable assembly parts
- Molds with tight shut-offs and repeated thermal cycling
- Maintenance programs using interchangeable spare assemblies
Precision Manufacturing Capabilities
Manufacturing Processes
- CNC milling and turning for profiles and interfaces
- Heat treatment coordination for target hardness and stability
- Grinding for critical datums, fits, and sealing lands
- EDM / wire EDM for special geometry (as required)
- Surface finishing and polishing for functional surfaces
- Matching and verification for multi-piece assembly interfaces
Quality Controls
- Datum-based machining to maintain assembly alignment
- Concentricity/runout control for coaxial features
- Flatness/parallelism control for plate interfaces
- Fit tolerance control to ensure interchangeability
- Inspection strategy options based on requirements
Inspection & Documentation
- Dimensional inspection reports available
- Material certificates and heat treatment records upon request
- Part marking/traceability options for cavity and set management
Customer Value & Benefits
Stable Assembly Fit
Accurate interfaces reduce hand fitting and enable quick component replacement, minimizing downtime.
Extended Service Life
H13 toughness protects stress-prone zones and ensures long-run stability under repeated cycles.
Dimensional Consistency
Stable datums and controlled fits maintain critical dimensions and reduce production drift.
Predictable Maintenance
Matched component sets simplify spare management and ensure interchangeability during replacements.
Quotation Requirements
To provide an accurate quotation for H13 PET preform mold assembly components, please provide:
- 3D CAD (STEP/IGES) and 2D drawings (PDF/DWG)
- Assembly component list and quantities
- Material requirement: H13 (confirm acceptable equivalents if any)
- Heat treatment/target hardness specification
- Surface finish requirements for functional zones
- Critical tolerances and GD&T specifications
- Mold interface details and mating dimensions
- Inspection/documentation needs
- Lead time and packaging requirements
Frequently Asked Questions
Is H13 suitable for PET preform mold assembly components?
H13 is widely used for mold components requiring toughness and thermal fatigue resistance under repeated cycling. It's a common and proven option for PET preform molds.
Will heat treatment affect assembly fit?
Heat treatment can cause dimensional changes if not properly managed. We plan machining allowances and post-heat finishing to achieve final tolerances.
Can you supply matched sets for multi-cavity molds?
Yes. We manufacture matched sets with controlled variation and provide inspection data for key assembly interfaces.
Do you provide inspection reports and certificates?
Yes. Inspection reports, material certificates, and heat treatment records are available upon request.
Ready to Get Started?
Send us your STEP/2D drawings, assembly part list, quantities, target hardness, tolerance/finish requirements, and required delivery date. We'll reply quickly with a clear quotation, lead time, and available quality documentation options.
