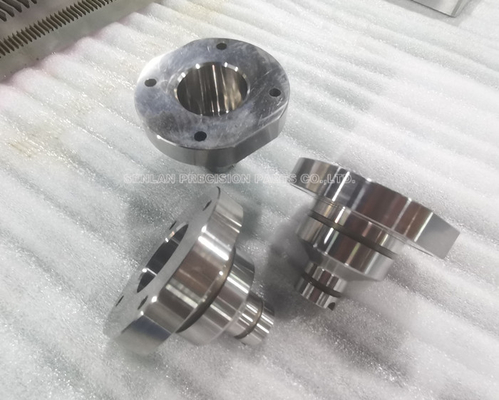

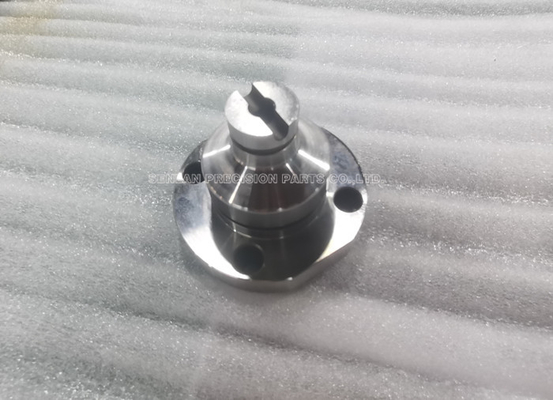

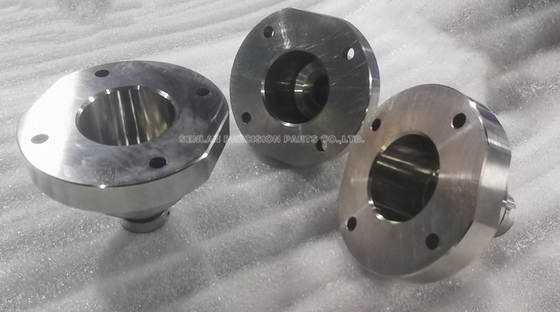

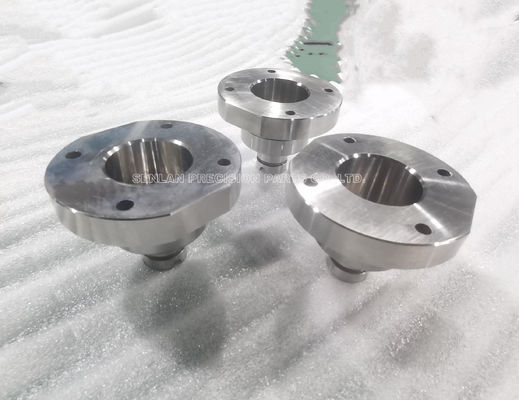

1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner

1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner
1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner 1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner 1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner 1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner

Large Image :  1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-20working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner

Description
Parts Name: Gate Insert Mold Parts Hardness: 48~54 HRC
Tolerence: +/-0.01-0.005mm Color: Silver
Usage: Medical Tube Bottle Embryo / Cosmetic Packing Process: EDM
Highlight:

1.2344ESR Precision Mold Parts

,

Gate Insert Precision Mold Parts

,

EDM Processing Precision Mould Parts

1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner
The gate is the critical opening in a mold through which molten plastic is injected into the final part, serving as the boundary between the finished product and scrap material. The gate's location, size, and shape significantly impact both the structural integrity and visual appearance of manufactured components.
Specifications
Parameter Details
Material SKD11, SKD61, HSS, M2, D2, SUJ2, S45C, 1.2344ESR
Standard DIN, MISUMI, EDM, MOELLER, HASCO etc
Size Custom according to drawings or product standards
Place of Origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.005mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on order quantity. Shipping via DHL, UPS, FEDEX, TNT or Ocean Shipping
Production Process
Process Step Description
3D Design/Samples For Quotation Quotation based on 3D drawings or samples
Negotiations Discussion of pricing, product weight, payment terms, lifetime, delivery schedules
Purchasing Order Order confirmation after customer approves mold design and quotation
Making Mold Components DFM, mold flow analysis, and production after drawing confirmation
Production Schedule Weekly progress updates with photos provided to customer
Sample Shoot Test samples (1-2 pieces) provided for customer confirmation and signature
Package Carton box packaging or custom packaging as required
Delivery Shipping via air or sea express
Manufacturing Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop Lathe JINGCHENG YB-15 0.05mm 4 China
Desktop Lathe JINGCHENG YB-25 0.05mm 2 China
OD Grinder HOTMAN FX-03 0.002mm 5 China
ID Grinder HOTMAN FX-05 0.002mm 3 China
Centerless Grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM Drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Frequently Asked Questions
Q1: How Long Will It Take To Receive The Goods?
Typically 2-5 days for in-stock items, or 16-23 days for custom orders depending on quantity and specific requirements.
Q2: Do You Have Offices In Other Countries?
We currently do not have international offices, but as a leading manufacturer in Dongguan with 15 years of experience, we export to nearly 35 countries. All components undergo strict quality control before delivery.
Q3: Can You Provide Quality Reports?
Yes, we provide material reports, dimensional reports, heat treatment reports, and can arrange third-party inspection reports as required.
Q4: Do You Accept D/A Payment Terms?
Currently we accept TT (Telegraphic Transfer), L/C at sight, and Paypal payments.
