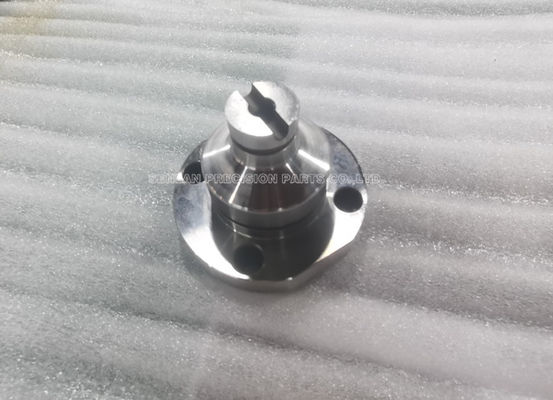

1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications

1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications
1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications 1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications 1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications 1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications

Large Image :  1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-20working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

1.2344ESR Material Gate Insert Mold Parts with EDM Processing for Hot Runner Applications

Description
Parts Name: Gate Insert Mold Parts Hardness: 48~54 HRC
Tolerence: +/-0.01-0.005mm Color: Silver
Usage: Medical Tube Bottle Embryo / Cosmetic Packing Process: EDM
Highlight:

1.2344ESR Precision Mold Parts

,

Gate Insert Precision Mold Parts

,

EDM Processing Precision Mould Parts

1.2344ESR Material Gate Insert Precision Mold Parts EDM Processing For Hot Runner
The "gate" is the opening in a mold through which the molten plastic is injected into the final part. It is the boundary between part and scrap. The location, size, and shape of the gate can have a significant effect on everything from the structural integrity to the visual appearance of a finished piece.
Specification Of Precision Gate Insert Mould Parts
Material SKD11, SKD61, HSS, M2, D2, SUJ2, S45C, 1.2344ESR
Standard DIN, MISUMI, EDM, MOELLER, HASCO etc
Size Depend on your drawings or products standard
Place of origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.005mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Purchase Precision Gate Insert Mould Parts Process Chart
Plastic Mold Components Production Process Description
1. 3D Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations Including the price of mold components for cores & cavities, weight of product, payment, lifetime, delivery, etc.
3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold components Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start production
5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot We provide the moulds Components test samples for confirmation (about 1-2piece), then, get your signature sample, mass production
7. Package Cartons box for parts, or as your requirement
8. Delivery Deliver goods by air or by sea. Express
Manufacturing Precision Gate Insert Mould Parts Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
Desktop lathe JINGCHENG YB-25 0.05mm 2 China
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3 China
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Frequently Asked Questions
Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock. or it is 16-23 days if the goods are not in stock, it is according to quantity and your customization need
Q2: Do You Have Any Office In My Country?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturer for plastic mold parts in dongguan city, which has exported the goods to nearly 35 countries, each components was tested through the strict quality control system before delivery, and we never get any complaint from clients yet
Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as the special report you require from the third party inspection company
Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal
