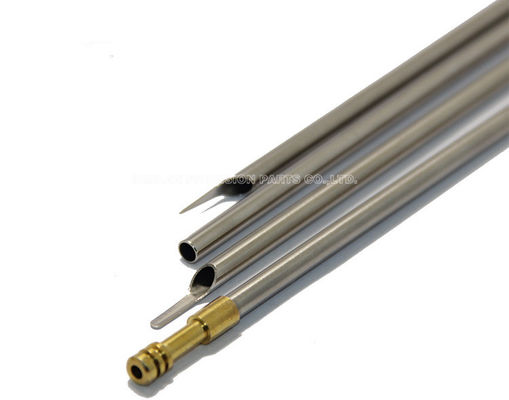

SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components

SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components
SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components

Large Image :  SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-17working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

SKD61/SKH51 Material Mold Core Pin with +/-0.005mm Tolerance for Medical Injection Mold Components

Description
Material: SKD61/SKH51 Tolerance: +/-0.005mm
Color: Silver Application: Medical
Size: Customized Surface Treatment: Polishing
Type: Injection Mold Hardness: 48~54 HRC
Highlight:

Stavax CNC Medical Parts

,

SKD61 CNC Medical Parts

,

Scalpel Precision Mould Parts

China Manufacturer Non Standard Stavax CNC Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts
A Mold Core Pin is an extended or male portion of the mold which creates the internal surface used in plastic injection molding, often in the medical industry. This particular Mold Core Pin is used for injection molding medical pipettes used in fluid sampling. Mold Core Pins are usually made of M2 steel, High-Strength H13, or other tool steel. They require a certain level of toughness and must withstand misalignment in the molding process without breaking. The successful use of Mold Core Pins depends largely on the grinding process and essential manufacturing points.
Specification Of Mold Core Pin
Material Carbide, ASP23, SKD11, SKD61, HSS, M2, D2, SUJ2, S45C etc
Standard DIN, MISUMI, EDM, MOELLER, HASCO etc
Size Depend on your drawings or products standard
Place of origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.002mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Manufacturing Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
Desktop lathe JINGCHENG YB-25 0.05mm 2 China
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3 China
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Purchase Core Pins Process Chart
Production Process Description
1. 3D Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations Including the price of mold components for cores & cavities, weight of product, payment, lifetime, delivery, etc.
3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold components Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start production
5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot We provide the moulds Components test samples for confirmation (about 1-2piece), then, get your signature sample, mass production
7. Package Cartons box for parts, or as your requirement
8. Delivery Deliver goods by air or by sea. Express
Frequently Asked Questions
Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock, or 16-23 days if the goods are not in stock, depending on quantity and your customization needs.
Q2: Do You Have Any Office In My Country?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturers for plastic mold parts in Dongguan city. We have exported goods to nearly 35 countries, with each component tested through strict quality control systems before delivery.
Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as special reports you require from third party inspection companies.
Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, and Paypal.
