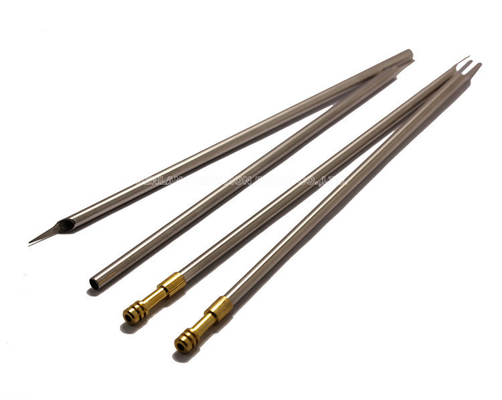

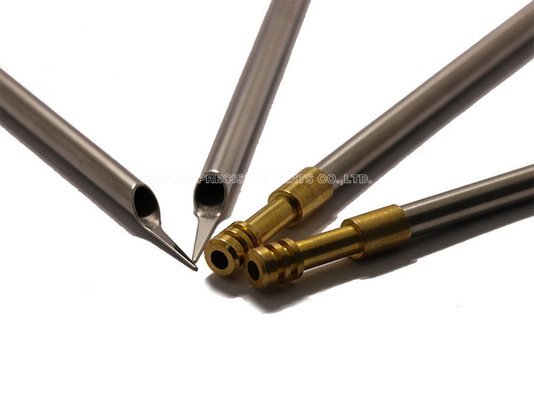

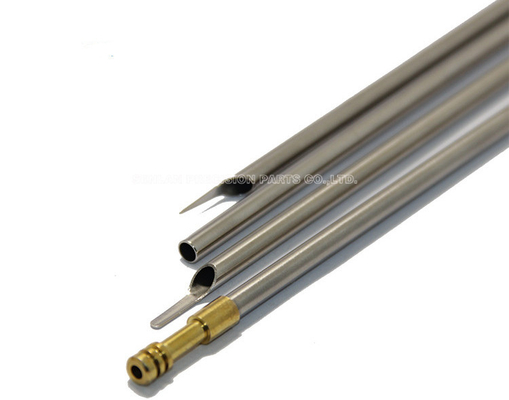

China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts

China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts
China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts

Large Image :  China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-17working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts

Description
Material: SKD61/SKH51 Tolerance: +/-0.005mm
Color: Silver Application: Medical
Size: Customized Surface Treatment: Polishing
Type: Injection Mold Hardness: 48~54 HRC
High Light:

Stavax CNC Medical Parts

,

SKD61 CNC Medical Parts

,

Scalpel Precision Mould Parts

China Manufacturer Non Standard Stavax Cnc Machining Scalpel Head Machining Medical Mold Parts Medical Spare Parts



A Mold Core Pin is an extended or male portion of the mold which creates the internal surface used in plastic injection molding often in the medical industry. this particular Mold Core Pin is used for injection molding medical pipettes used in fluid sampling. A Mold Core pin is usually made of M2 steel, High‐Strength H13, or other tool steel. Mold Core Pin need a certain level of toughness, but they also need to withstand a certain amount of misalignment in the molding process without breaking. In addition, the successful use of Mold Core Pin depends largely on the grinding process and on this essential points.



Specification Of Mold Core Pin:



Material Carbide, ASP23, SKD11, SKD61, HSS, M2, D2, SUJ2, S45C ect
Standard DIN, MISUMI, EDM, MOELLER, HASCO ect
Size Depend on your drawings or products standard
Place of origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.002mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.



Manufactuing Equipment



CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
YB-25 0.05mm 2
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
618 0.001mm 2
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan





Purchase Core Pins Process Chart:



Plastic Mold (Moulds) Components

Production Process

Description
1. 3d Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations

Including the price of mold components

for cores & cavities, weight of product, payment, lifetime, delivery, etc.

3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold(moulds) components

Confirm drawing, start to do DFM, mold flows and mold detail agreed

with the customer, start production

5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot

We provide the moulds Components test samples for confirmation (about 1-2piece), then,

get your signature sample, mass production

7. Package Cartons box for parts, or as your requiretment
8. Delivery Deliver goods by air or by sea. Express





FAQ:



Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock. or it is 16-23 days if the goods are not in stock, it is according to quantity and your customization need



Q2: Do You Have Any Office In My Country ?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturer for plastic mold parts in dongguan city, which has exported the goods to nearly 35 countries, each components was tested through the strict quality control system before delivery, and we never get any complaint from clients yet



Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as the special report you require from the third party inspection company



Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal
