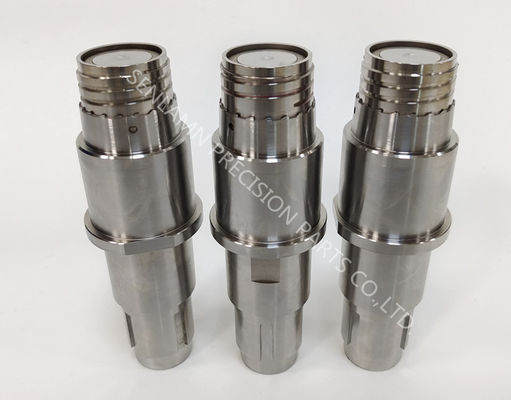

S136 Threaded Core Inserts for Bottle Cap Injection Molds
Thread accuracy is one of the most critical quality factors in bottle cap production. Even minor variation in thread profile, pitch, or concentricity can lead to cross-threading, leakage, inconsistent torque, or assembly failure on automated capping lines. Our S136 threaded core inserts are precision mold components manufactured for bottle cap injection molds, designed to deliver stable thread forming, consistent cavity-to-cavity performance, and reliable long-run durability.
S136 is a stainless mold steel widely specified for cap molds thanks to its corrosion resistance, surface stability, and good polishability—valuable for molds running in humid environments, with frequent cleaning, or long production cycles. We manufacture threaded cores to customer drawings with strict control of thread geometry, datums, runout, and fit interfaces, supporting both new mold builds and replacement spare sets.
Product Description
A threaded core insert is the forming core component that creates the internal thread (or threaded engagement features) inside a bottle cap. Depending on the cap design and mold architecture, threaded cores may be used with unscrewing systems, collapsible mechanisms, or other demolding approaches. Regardless of the ejection method, the threaded core must maintain precise geometry and surface finish to ensure repeatable cap performance.
What the threaded core typically controls
- Internal thread profile, pitch, and lead-in geometry
- Thread-to-axis alignment for smooth assembly and stable torque
- Functional sealing-related inner features (design-dependent)
- Locating and retention datums for repeatable installation into the core plate
Key design and manufacturing priorities
- Accurate thread form with controlled crest/root definition
- Consistent thread geometry across multi-cavity sets
- Controlled concentricity/runout between the thread and locating datums
- Surface finish optimized to reduce sticking, wear, and thread damage
- Stable fit surfaces to support interchangeability and fast maintenance
Why S136 is commonly chosen
S136 offers performance advantages for threaded cores in cap molds:
- Better resistance to corrosion and surface oxidation that can affect release and thread quality
- Stable surface condition over long cycles, reducing maintenance interruptions
- Good finishing capability for smooth thread surfaces and consistent demolding
Applications
S136 threaded core inserts are used in bottle cap injection molds, including:
- Multi-cavity cap molds requiring consistent internal thread quality
- High-volume production molds where thread variation impacts yield and capping line stability
- Spare core programs for preventive maintenance and rapid replacement
- New cap mold builds using stainless cores for long-run reliability
Precision & Manufacturing Capabilities
Threaded core inserts demand both high geometric accuracy and strong set-to-set consistency—especially in high-cavity molds.
Manufacturing processes
- Precision CNC turning for locating and interface geometry
- Thread machining to specified profile and tolerance
- Grinding for critical fits and datum surfaces (as required)
- EDM / wire EDM for special details (project-dependent)
- Heat treatment coordination for target hardness and stability
- Fine finishing/polishing for thread surfaces and functional zones

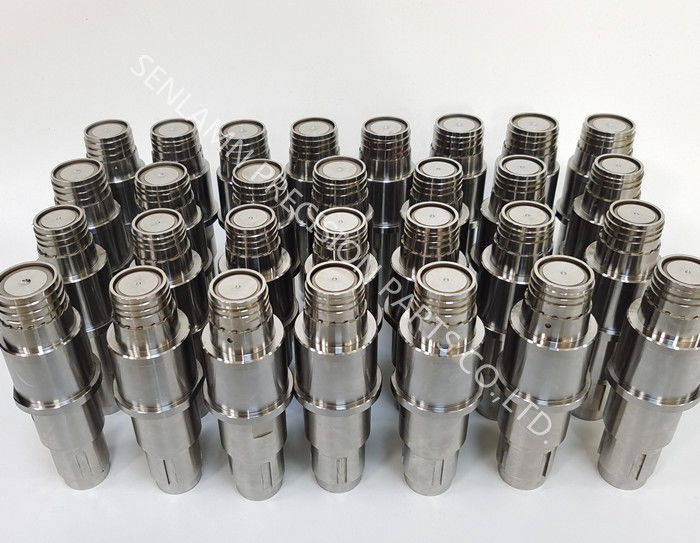

- Set matching and consistency control for multi-cavity orders
Key quality controls for threaded cores
- Verification of thread pitch/profile features per drawing requirements
- Concentricity/runout control between threads and locating datums
- Fit tolerance control for drop-in assembly and interchangeability
- Surface finish management to reduce galling and improve release behavior
- Consistency checks across multi-piece sets (sampling or 100% inspection options)
Inspection & documentation
- Dimensional inspection reports available (key dimensions or full report)
- Material certificates and heat treatment records upon request
- Serial marking/traceability options for multi-cavity set management
Why It Matters for Bottle Cap Thread Quality
Fewer capping issues and higher line stability
Accurate thread geometry supports consistent torque and smooth capping on automated lines, reducing rejects and downtime.
Higher yield in multi-cavity production
Matched threaded core sets reduce cavity-to-cavity variation and improve overall production consistency.
Less wear-related thread degradation
Material selection, heat treatment, and surface finish control help maintain thread integrity over long cycles.
Faster maintenance with interchangeable spare cores
Replaceable threaded cores enable quick replacement without reworking the entire mold stack, lowering downtime and protecting production schedules.
What We Need for Quotation
To quote S136 threaded core inserts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Quantity (single pieces or multi-cavity sets)
- Confirm material: S136 (or accepted equivalents)
- Heat treatment / target hardness requirement
- Thread specification details (profile, pitch, tolerance, lead-in requirements)
- Critical tolerances (runout/concentricity, datums, fit surfaces)
- Surface finish requirement for thread and sealing-related areas
- Mold interface details (locating diameter/shoulder, retention method)
- Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If replacing existing threaded cores, providing the mating core plate interface dimensions helps ensure drop-in compatibility.
FAQ
Why is threaded core accuracy so critical in cap molds?
Because thread variation affects assembly torque, sealing reliability, and automated capping line performance. Small deviations can cause cross-threading or leakage.
Can you manufacture multi-cavity threaded core sets with matched consistency?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key thread and datum features.
How do you prevent runout issues on threaded cores?
By controlling datum references during machining, managing coaxial features, and verifying concentricity/runout against specified tolerances during inspection.
Do you provide polishing for thread surfaces?
Yes. Finishing and polishing can be applied according to your requirements to improve release behavior and surface stability.
Do you provide material certificates and inspection reports?
Yes. Material certificates, heat treatment records, and inspection reports are available upon request.
Need a reliable supplier for S136 threaded core inserts for bottle cap injection molds?
Send us your STEP/2D drawings, thread specifications, quantity, tolerance and finish requirements, target hardness, and lead time. We'll respond quickly with a clear quotation and quality documentation options.
