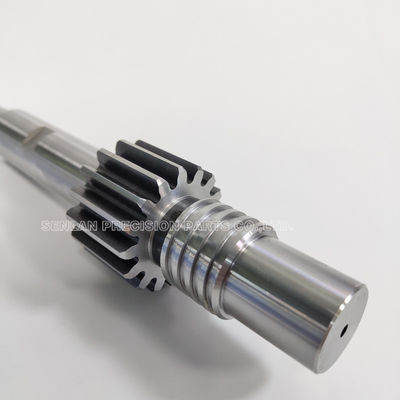

Threaded Core (Unscrewing Core) for Injection Molds
Product Overview
Threaded cores are precision-molded components used to form true internal threads in injection-molded parts. Unlike standard cores, a threaded core must maintain accurate thread geometry while working with an unscrewing or rotary demolding mechanism to release the molded part without damaging the threads.
Our threaded core (threaded core pin / threaded core insert) components are custom-manufactured to customer drawings with strict control of thread profile, concentricity to the rotation axis, fit interfaces, and surface finish. For high-volume molds, consistent thread quality is essential to avoid assembly issues such as cross-threading, torque variation, leakage, or capping/closing failures.
Product Description
A threaded core is the forming element that creates the thread inside (or sometimes outside) a molded part. In most cases, threaded cores operate as part of an unscrewing system, where the core rotates during ejection to demold the threaded feature cleanly.
What a Threaded Core Must Control
- Thread profile, pitch, and lead-in geometry
- Coaxial alignment between the thread and the core's rotation datums
- Stable installation fits into the mold base or core plate
- Smooth surface finish to reduce sticking, galling, and thread damage
- Mechanical interface features for the drive system (design-dependent)

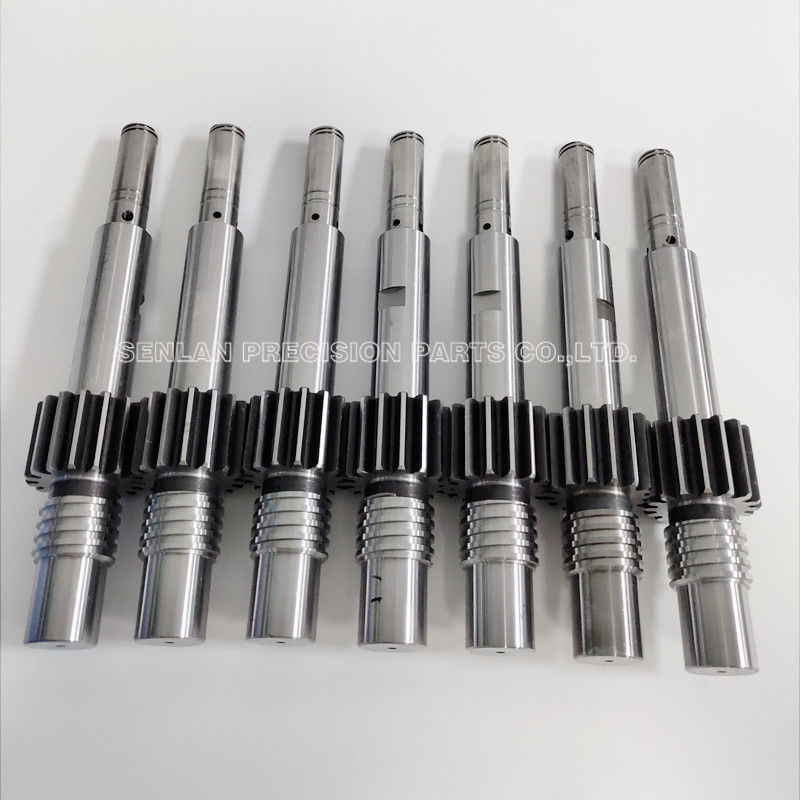

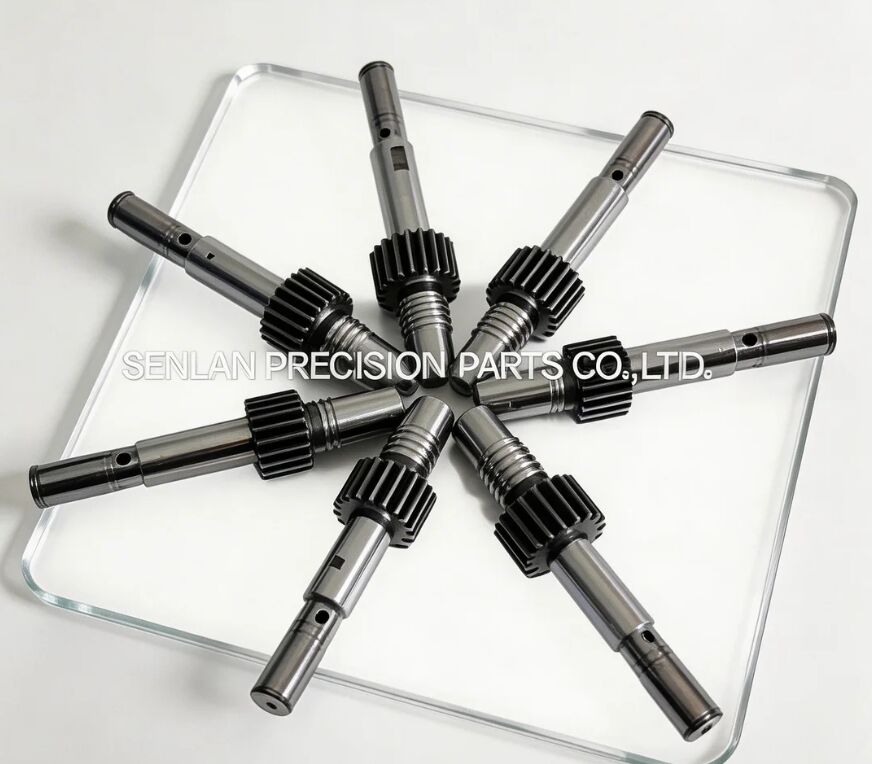

Typical Threaded Core Construction
Depending on the mold design, a threaded core may include:
- Thread-forming section (internal thread profile)
- Locating shoulders/diameters for repeatable installation
- Drive-interface features (gear seat, keyways, coupling section, splines, etc.)
- Wear zones optimized for long-cycle rotation and sliding contact
Material and Treatment Considerations
Threaded cores are often produced from tool steels selected for wear resistance and dimensional stability under repeated cycles. Heat treatment and optional surface treatments/coatings may be specified based on:
- Resin type (filled/abrasive materials)
- Required thread surface quality and demolding behavior
- Production volume and expected service life
- Operating temperature and lubrication strategy
Applications
Threaded cores are used in injection molds for parts that require true thread demolding, including:
- Unscrewing injection molds (rotary demolding systems)
- Multi-cavity molds requiring consistent internal thread quality
- High-volume production molds where thread stability affects assembly and leakage performance
- Spare core programs for preventive maintenance and fast replacement
(Exact end products vary by customer design; we focus on the mold function and threaded feature requirement.)
Precision & Manufacturing Capabilities
Threaded cores require both forming precision and mechanical alignment precision. We control the parameters that directly affect molding results and unscrewing stability.
Manufacturing Processes
- Precision CNC turning/milling for datums and interfaces
- Thread machining to the specified profile and tolerance
- Grinding for critical fits and rotation datums (as required)
- EDM / wire EDM for interface features (project-dependent)
- Heat treatment coordination for hardness and stability
- Fine finishing/polishing for thread surfaces and wear zones
- Set matching for multi-cavity threaded core orders
Key Quality Controls
- Thread profile verification per drawing requirements
- Concentricity/runout control between threads and rotation datums
- Fit tolerance control for installation and guiding interfaces
- Surface finish management to reduce galling and improve release
- Consistency control across matched sets (sampling or 100% inspection options)
Inspection & Documentation
- Dimensional inspection report available (key features or full report)
- Material certificates and heat treatment records upon request
- Serial marking/traceability options for cavity/set management
Why It Matters / Customer Value for Thread Quality & Unscrewing Stability
More reliable assembly and consistent torque
Accurate thread geometry reduces cross-threading risk and stabilizes torque performance in automated assembly lines.
Fewer rejects and less downtime
Stable runout control and good surface finish help prevent thread damage, sticking, and unscrewing mechanism issues.
Longer service life under repeated rotation
Correct material selection, heat treatment, and wear-zone finishing reduce wear and maintain thread quality over long runs.
Faster maintenance with interchangeable spares
Replaceable threaded cores allow quick replacement without major mold rework, supporting predictable maintenance schedules.
What We Need for Quotation
To quote threaded cores accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Thread specification (profile, pitch, tolerance, lead-in requirements)
- Mold demolding method (unscrewing/rotary system) and drive interface details
- Material requirement (or resin/production conditions for recommendation)
- Heat treatment/target hardness specification
- Surface finish requirement for the thread and wear zones
- Quantity (single pieces or multi-cavity sets)
- Inspection/document requirements (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If this is a replacement part, providing the mating interface dimensions (rotation datums, drive seat, locating shoulders) helps ensure drop-in compatibility.
Frequently Asked Questions
Why do threaded parts require an unscrewing core?
Many thread designs cannot be stripped from a straight core without damaging the thread. An unscrewing core rotates to demold the threaded feature cleanly.
What causes cross-threading or inconsistent torque in molded parts?
Common causes include thread profile deviation, runout relative to the rotation axis, poor surface finish, wear, or misalignment in the unscrewing mechanism.
Can you supply matched threaded core sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled cavity-to-cavity consistency and provide inspection data for key thread and datum features.
Do you support drive-interface features (gear seat, coupling section, etc.)?
Yes. We manufacture to your drawing, including the drive and locating interface features required by the unscrewing system.
Do you provide inspection reports and material certificates?
Yes. Inspection reports and material/heat treatment certificates are available upon request.
Engineering
Send your drawings and specify the thread requirements, rotation datums, and drive-interface features. Our engineers will review manufacturability and provide a production plan to ensure stable unscrewing performance and thread consistency.
