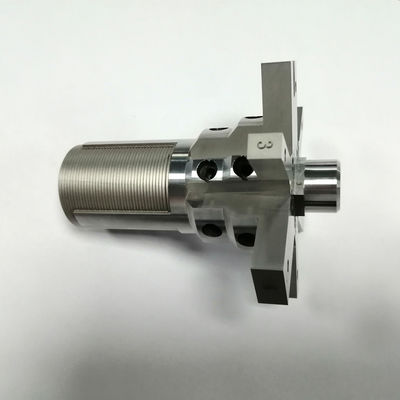

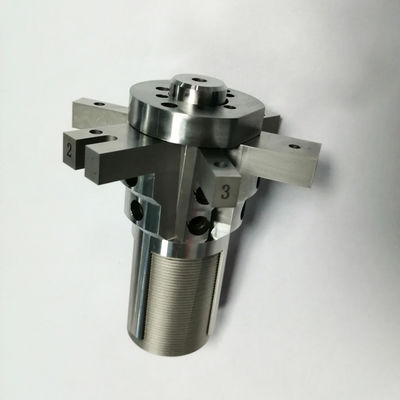

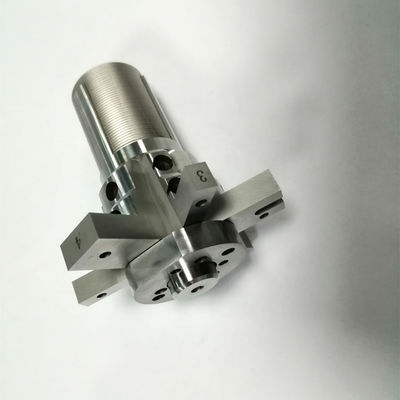

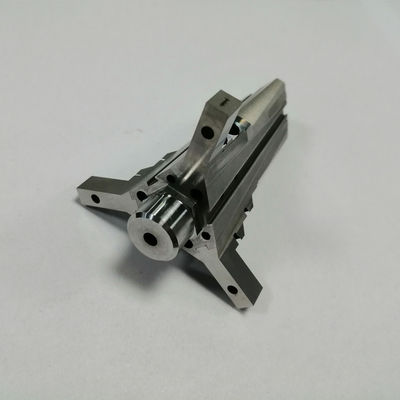

HRC58 Hardness Mold Core Insert with ±0.003mm Accuracy for Customizable Plastic Injection Mold

The Mold Core and the cavity that constitute the part of the molded article that becomes an undercut are divided, and then designed and fabricated.

• The Removable Mold Core Inserts that are prepared by dividing the mold are taken out from the mold along with the molded product at the time of ejecting the molded article.
• The Removable Mold Core Insert is removed from the molded article by a manual operation.
• The Removable Mold Insert is installed in the mold manually at the time of the next molding.
• In other words, with a Removable Mold Core Insert structure, it is not possible to carry out continuous injection molding, and the method is that of forming the undercut shape semi-automatically using manual operations additionally.
• There are also some cases in which the Removable Mold Core Insert is pushed out from the mold by an ejector pin.
• In order to position the Removable Mold Core Insert, a key structure or a knock pin structure is used in some cases.
• There are cases in which the molding is done after pre-heating the Removable Mold Core Insert.
• There is also the method of molding which makes the semi-automatic molding more efficient by preparing two Removable Mold Core Inserts, and inserting them alternately into the mold.
• In order to ensure that the direction of inserting the removable insert is not mistaken, there is also the technique of using a direction determining structure.
• The key point is to design the escape and the clearance so as to make it easy to install and remove the removable inserts.
• There is also the management aspect of provisionally preparing the trial mold with a removable insert structure, thereby obtaining time for developing a mold structure such as the slide core structure that can permit continuous molding.

• Professional Manufacture: We have advanced equipment and a manufacturing team consisting of experienced workers who guarantee product quality.
• After-Sales Service: Our after-sales service team is always on standby to help you solve any problem - we serve you 24/7.
• OEM/ODM Service: We provide customized processing services for customers to realize your ideas.
• Competitive Price: Since we have our own factory, we can offer you the most satisfactory price with high quality.

Senlan Precision Mold Co., Ltd specializes in plastic mold components manufacturing. Our company covers an area of 2000 square meters and we possess imported processing and testing equipment. Currently, we have more than 80 employees, including more than 50 senior technical personnel who form a design and manufacturing team with strong technological competence and have established a perfect production process and quality control system.

Facing fierce market competition, quality, delivery time, and customer satisfaction are solid foundations and powerful guarantees of good cooperation between customers and us. So far, we have established good relationships with many foreign enterprises from Japan, Europe, and America.

To serve customers better in the competitive plastic mold components market, our company has brought in a series of advanced production equipment and is strengthening quality control capability while implementing ISO9000 system to elevate product quality.
