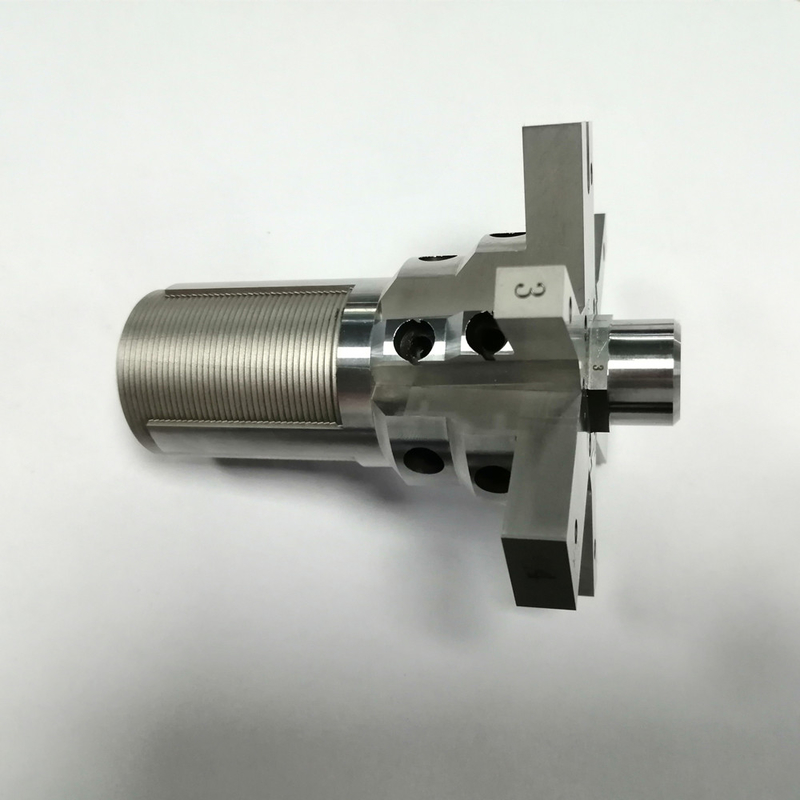

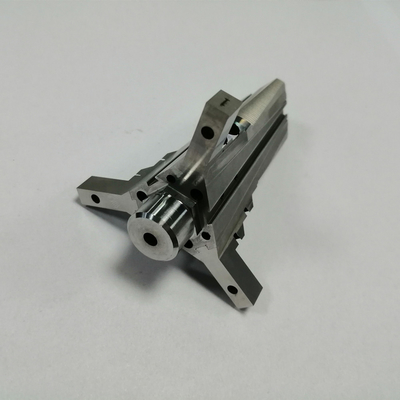

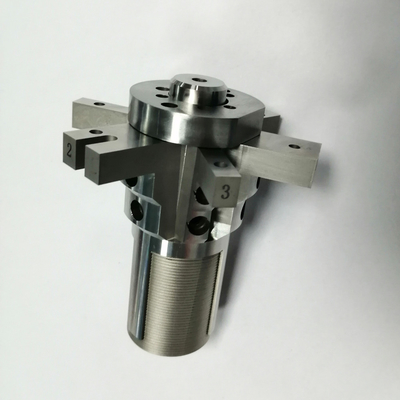

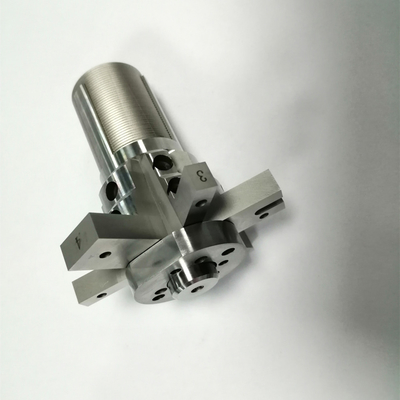

1.2108 Die Steel Components For Packaging Plastic Mould Tooling

1.2108 Die Steel Components For Packaging Plastic Mould Tooling
1.2108 Die Steel Components For Packaging Plastic Mould Tooling
1.2108 Die Steel Components For Packaging Plastic Mould Tooling 1.2108 Die Steel Components For Packaging Plastic Mould Tooling 1.2108 Die Steel Components For Packaging Plastic Mould Tooling 1.2108 Die Steel Components For Packaging Plastic Mould Tooling 1.2108 Die Steel Components For Packaging Plastic Mould Tooling

Large Image :  1.2108 Die Steel Components For Packaging Plastic Mould Tooling

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

1.2108 Die Steel Components For Packaging Plastic Mould Tooling

Description
Hardness: HRC58 Accuracy: +/-0.003mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Mold Core Insert
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: 1.2108 Die Steel Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Customize
Feature: Durable Usage: Bottle Caps Mold Insert
High Light:

1.2108 Die Steel Components

,

1.2108 Die Steel Plastic Mould Tooling

,

HRC 58 Plastic Mould Tooling

1.2108 Die Steel Components For Packaging Plastic Mould Tooling



EDM 1.2108 Die Steel Mold Core Insert Components for Packaging Plastic Mould Tooling



What Is The Removable Mold Core Insert:



The Mold Core and the cavity that constitute the part of the molded article that becomes an undercut are divided, and then designed and fabricated


1. The Removable Mold Core Inserts that are prepared by dividing the mold are taken out from the mold along with the molded product at the time of ejecting the molded article.
2. The Removable Mold Core Insert is removed from the molded article by a manual operation.
3. The Removable Mold Insert is installed in the mold manually at the time of the next molding.
4. In other words, with a Removable Mold Core Insert structure, it is not possible to carry out continuous injection molding, and the method is that of forming the undercut shape semi-automatically using manual operations additionally.
5. There are also some cases in which the Removable Mold Core Insert is pushed out from the mold by an ejector pin.
6. In order to position the Removable Mold Core Insert, a key structure or a knock pin structure is used in some cases.
7. There are cases in which the molding is done after pre-heating the Removable Mold Core Insert.
8. There is also the method of molding which makes the semi-automatic molding more efficient by preparing two Removable Mold Core Inserts, and inserting them alternately into the mold.
9. In order to ensure that the direction of inserting the removable insert is not mistaken, there is also the technique of using a direction determining structure.
10. The key point is to design the escape and the clearance so as to make it easy to install and remove the removable inserts.
11. There is also the management aspect of provisionally preparing the trial mold with a removable insert structure, thereby obtaining time for developing a mold structure such as the slide core structure that can permit continuous molding





Specification Of Mold Core Insert:



Item
Value
Place of Origin
China
Brand Name
Customized
Shaping Mode
Plastic Injection Mould
Product
Medical, Cosmetics, Daily Packaging etc
Model Number
Customized
Process
CNC/Milling/Grinding/WEDM/PG/EDM
Material
Steel, Brass, Alloy...
Dimension
Customized Size
Tolerance
±0.002mm
Application
Machine & Mold Component
MOQ
1 Pcs
Surface
Natural, Polished, Coating or as customized





Why Choose Us:



1. Professional Manufacture

We have advanced equipment and a manufacturing team consist of experienced workers, they guarantee the quality of product



2. After-Sales Service

Our after-sales service team is always standby to help you sovle any problem, we can serve you in 7/24hours



3. OEM/ODM Service

We provide customized processing services for customers, we will realize your idea



4. Competitive Price

Since we have our own factory, we can give you a most satisifactory price with high quality





Our Company:


Senlan Precision Mold Co., Ltd  specializes in Plastic mold components manufacturing. our company covers an area of 2000 square and we have imported possessed processing and testing equipment. our company has more than 80 employees currently, including more than 50 senior technical personnel they who possessed a team of design and manufacturing with strong technological competence and established perfect production process and quality control system


Facing to the fierce market competition, quality, delivery time and customer satisfaction are solid foundations and powerful guarantees of good cooperation between customers and us. so far, we have entered into good relationships with many foreign enterprises from Japan, Europe and America


Facing with fierce competitions and challenges in the plastic mold components market. to serve the customers better, our company brought a series of advanced production equipment and is strengthening quality control capability, carrying our ISO9000 system to elevate product quality





FAQ:



Q1: Are You A Trading Company Or A Manufacturer?

A: We are a factory.

Q2: How Long Is Your Delivery Time?
A: Around 15 days

Q3: Do You Provide Samples? Is It Free Or Extra?
A: Yes, we provide samples, these samples are redundant, but very cheap

Q4: What Is In The Quote?
A: Product standard: model + size or drawing

Q5: How To Guarantee The Quality?
A: We have a quality control department to control the quality from the start of production to the completion of the product.

Q6: If The Quality Of The Goods You Produce Is Poor, Can We Refund Our Funds?
A: In fact, we will not have the opportunity to produce inferior products. At the same time, we produce high-quality products.until you are satisfied.If you want to learn more, you can choose online consultation
