Precision Guide Posts for Plastic Injection Molds in SKD11 Material with 48~52 HRC Hardness and Customized Sizes

Guide posts (leader pins) are alignment components that ensure the moving and fixed halves of an injection mold close accurately, smoothly, and repeatedly. When alignment is stable, parting lines stay consistent, cavities close evenly, and sensitive mold components—such as cores, cavities, slides, lifters, and shut-offs—are protected from impact and premature wear.

Our precision guide posts for plastic injection molds are manufactured to customer drawings for reliable fit with guide bushings and repeatable mold closing performance. We focus on the characteristics that matter most for alignment parts: straightness, diameter tolerance, surface hardness, and low-friction finish, helping mold builders maintain stable production and reduce maintenance caused by misalignment.

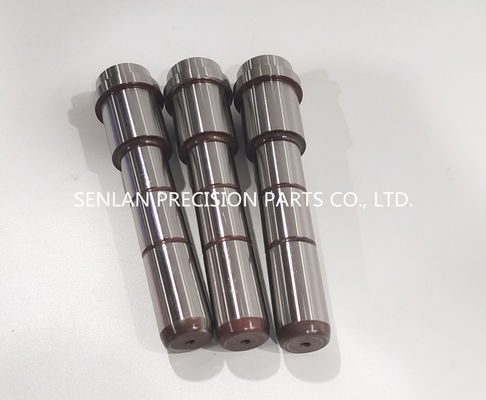

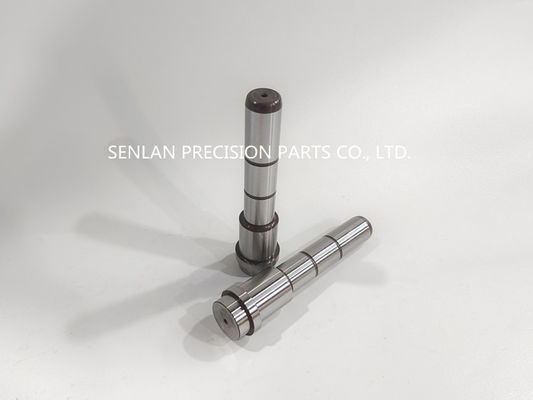

A guide post is a hardened, precision-ground cylindrical pin installed in one mold half (commonly the moving side) that mates with a guide bushing in the opposite half. Together they guide mold closing and opening, maintaining accurate alignment throughout each cycle.

• Control mold alignment during closing/opening
• Reduce mismatch and protect cavity/core edges and shut-offs
• Improve repeatability for high-cavity molds and tight-tolerance parts
• Support stable performance of slides, lifters, and other moving mechanisms

• Standard straight guide posts with head/shoulder retention
• Stepped guide posts for specific mounting structures
• Custom lead-in tips and relief features for smoother engagement
• Surface-treated or coated posts for enhanced wear resistance

Guide posts typically require a hard wear-resistant surface and a stable core to withstand repeated sliding contact with bushings. Depending on mold requirements, guide posts may be produced from bearing steels or tool steels with heat treatment and optional surface treatments to improve wear life and corrosion resistance.

Precision guide posts are used in plastic injection molds where repeatable alignment is critical, including:

• Multi-cavity molds requiring consistent parting line control
• Molds with slides/lifters where alignment impacts mechanism life
• Tight-tolerance molds where mismatch or flash must be minimized
• High-cycle production molds needing durable guidance components
• Mold refurbishment and replacement programs for worn leader pins

• Precision CNC machining for mounting features and shoulders
• Centerless grinding for critical diameters and straightness
• Heat treatment coordination for surface hardness and stability
• Fine finishing/polishing to reduce friction and wear
• Optional surface treatments/coatings (project-dependent)

• Diameter tolerance control for proper fit with bushings
• Straightness control to prevent binding and uneven wear
• Surface finish management for low friction and consistent sliding
• Hardness verification (per specified requirement)
• Lead-in geometry and shoulder dimensions for repeatable installation

• Dimensional inspection report available (key dimensions)
• Material certificate and heat treatment record upon request
• Marking/traceability options if required for maintenance control

To quote precision guide posts accurately, please provide:

• Drawing (2D) and/or 3D CAD (STEP/IGES)
• Quantity and required lead time
• Guide post standard (if following HASCO/DME/etc.) or custom dimensions
• Critical sizes: diameter, length, shoulder/head details, lead-in geometry
• Fit requirement with bushing (clearance/interference specification if defined)
• Material requirement (or operating conditions for recommendation)
• Heat treatment/hardness requirement
• Surface finish or coating requirement (if specified)
• Inspection/document needs (report format, traceability)

If replacing existing guide posts, sharing the bushing ID and mold plate interface details helps confirm correct fit.
