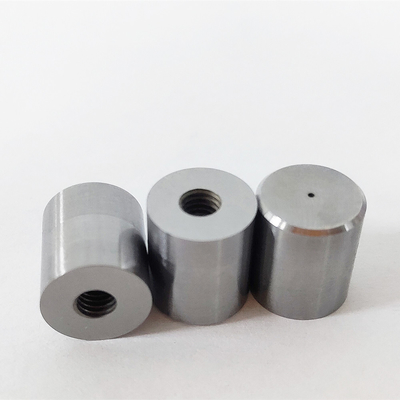

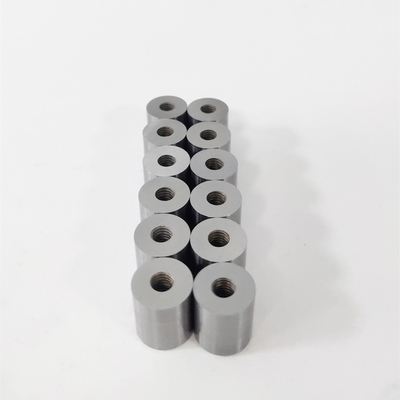

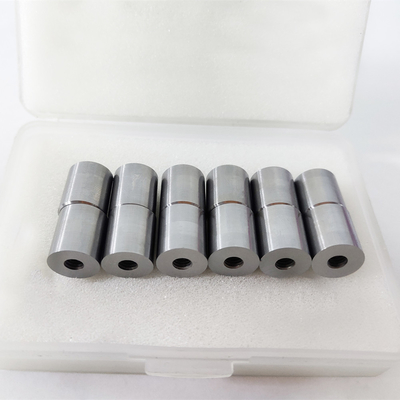

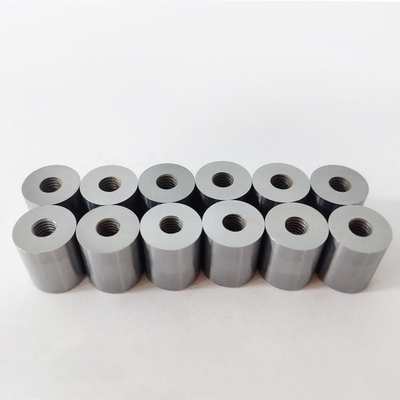

Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap

Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap
Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap
Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap

Large Image :  Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap

Description
Hardness: HRC56 Accuracy: +/-0.003mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Mold Core Insert
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: Skh51 Die Steel Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Customize
Feature: Durable Usage: Bottle Caps Mold Insert
High Light:

Polished Skh51 Mold Core Insert

,

Precision Mould Parts Core Insert

,

Precision Mold Components Core Insert

Surface Coated Skh51 High Speed Mold Core Insert for Beverage Plastic Bottle Cap



Mold Core Insert and Cavity Plates :



Every mould consists of two plates called Mold Core Insert and cavity plate. Into one plate is sunk the cavity which shapes the outside form of the moulding and is therefore known as the cavity plate. Similarly the core which projects from the Mold Core Insert plate forms the inside shape of the moulding. when the mould is closed , the two plates come together forming a space between the cavity and core which is the impression


The moulding, as it cools, will shrink on to the core and remain with it, as the mould opens. this will occur irrespective of whether the Mold Core  Insert is in the fixed half or the moving half. However, this shrinkage on to the core means that some form of ejector system is almost certainly necessary. Motivation for this ejector system is easily provided if the Mold Core Insert is in the moving half





Specification Of Mold Core Insert Components:



Product Name
Mold Core Insert
Materials
SKD61/SKH51/SKD11/SKH40/ASP23/ASP30/D2/A2 etc.
Hardness
50~60HRC
Standard
DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO ect
Tolerance
±0.002mm
Coating
TiCN, TiN, Aitain, Ticrn, nitriding, Black coating etc available
Production Address
Dongguan, Guangdong, China
Lead Time
Sampling: 7-10 workdays
Normal making: 10-12 workdays
Complex design/making: 15-20 workdays
Order Process
Customer inquiries → Provide Spec./CAD/3D drawing → Engineer check and quote → Offer PI → Customer Send PO → 35% advanced
payment (100% for First time cooperation) → Factory production process → QC passed √ → Packing and deliver at the first time → Fly to customers' hands soon!
After-sell Service
Contact Senlan if have any question after receiving the samples and products, our team will try best to offer you the best quality





Quality Assurance:



1. High-precision measuring equipment.

2. Strict process comtrol that make sure every part OK

3. FMEA(Failure Mode Effects Analysis)

4. FAL(First Article Inspection)

5. SPC(Statistical Process Control)





Packaging Details:



1. Each parts in plastic bag

2. Carton box,rust protection and suitable for shipment.

3. We can pack lit as per your request.





FAQ:



Q1: Where Can I Get Product&price Information?
A: Pls feel free to contact us Send us e-mail, we will contact you as we receive your mail

Q2: Can You Do OEM/ODM?
A: Senlan accept all OEM/ODM orders, just give us your design or tell us your requirements, we will make samples for you soon

Q3: Can You Do Design For Me?
A : We have 15 years experienced designers, according to your requirement, we can add your company logo, website, phone number or any of your ideas on the products or on the box...we will submit the quotation in 4 hours if getting detailed information during working days. In order to quote for your earlier, please provide us the following information together with your inquiry:
1) 3D Step of files and 2D Drawings

2) Material requirement
3) Surface treatment

4) Quantity(per order/per month/annual)
5) Any special demands or requirements such as packing, labels, delivery,etc

Q4: Can You Supply Me Samples?
A: Yes, we can do 3D printing or vaccum casting sample for customer

Q5: What Should We Do If We Receive Defective Products
A: If receive defective product, please send us the photos, we will feedback to our enginners and QC department and solve the problems ASAP

Q6: What Is Your Terms Of Payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance
