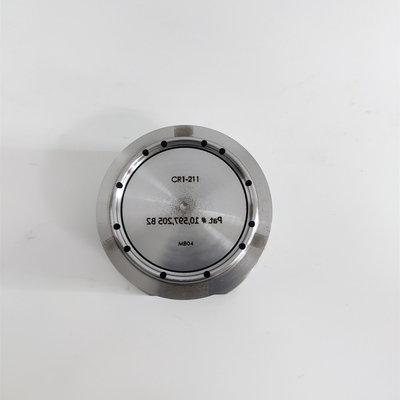

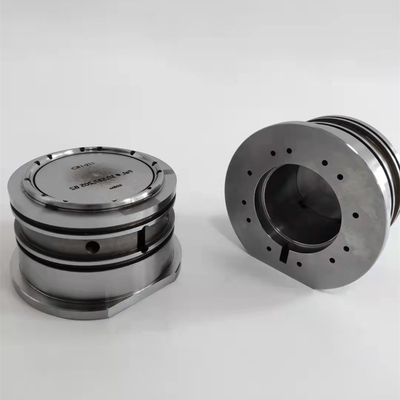

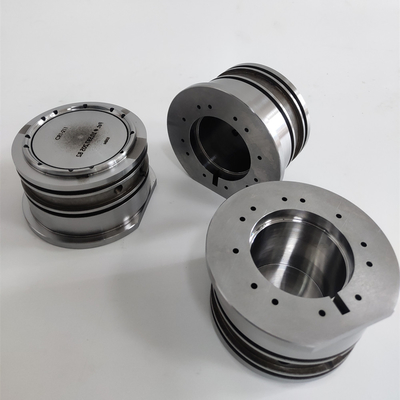

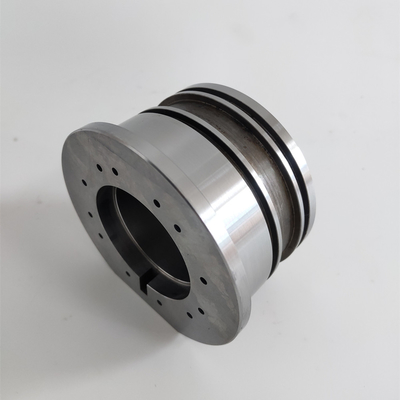

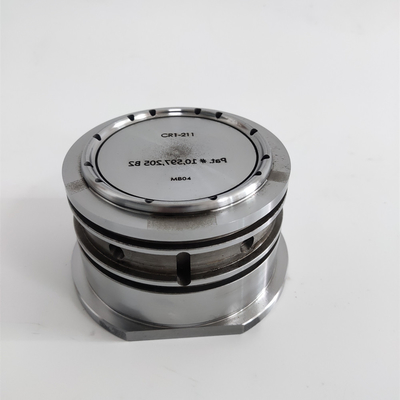

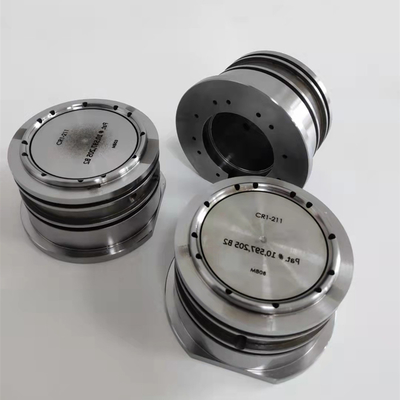

HRC58 High Flatness S136 Core Insert with Precision Inner Grinding

HRC58 High Flatness S136 Core Insert with Precision Inner Grinding
HRC58 High Flatness S136 Core Insert with Precision Inner Grinding
HRC58 High Flatness S136 Core Insert with Precision Inner Grinding HRC58 High Flatness S136 Core Insert with Precision Inner Grinding HRC58 High Flatness S136 Core Insert with Precision Inner Grinding HRC58 High Flatness S136 Core Insert with Precision Inner Grinding HRC58 High Flatness S136 Core Insert with Precision Inner Grinding HRC58 High Flatness S136 Core Insert with Precision Inner Grinding HRC58 High Flatness S136 Core Insert with Precision Inner Grinding

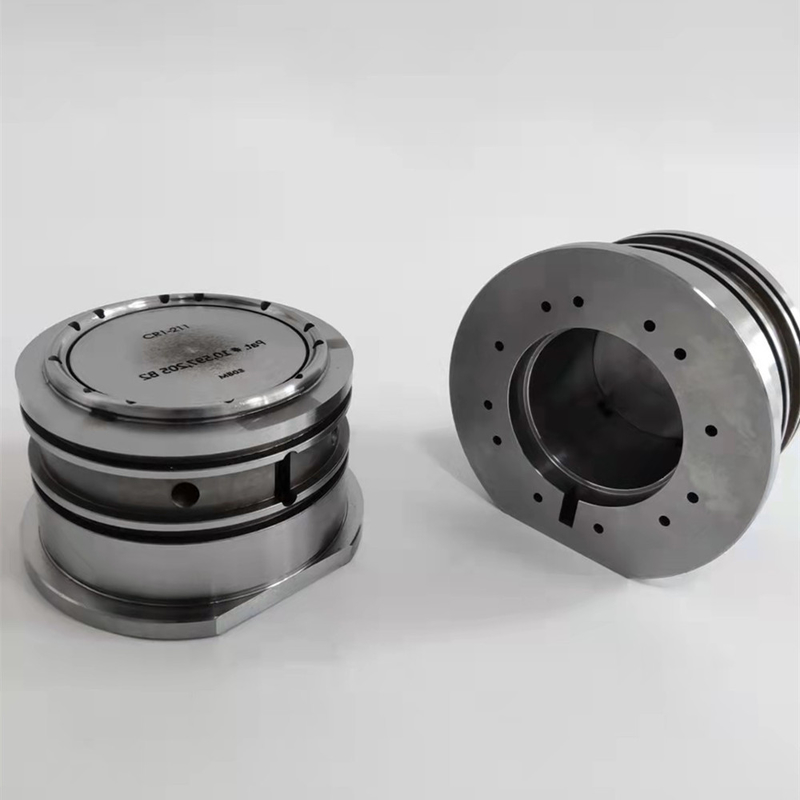

Large Image :  HRC58 High Flatness S136 Core Insert with Precision Inner Grinding

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Model Number: CI-003
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

HRC58 High Flatness S136 Core Insert with Precision Inner Grinding

Description
Hardness: HRC58 Accuracy: +/-0.005mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Core Insert
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: S136 Steel Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Black
Feature: Durable Usage: Injection Plastic Mold Parts
Delivery Time: 5-20 Days
High Light:

High Flatness S136 Core Insert

,

Plastic Injection Bottle Cap Core Insert

,

S136 Steel HRC58 Core Insert

What Is Core Insert Molding


Core Insert Molding (or “Core Insert Moulding”) is the process of molding plastic around an Core Insert that is placed into the injection mold



This Core Insert is typically a metal insert but may also be a made of plastic.the Core Insert is placed into the mold by one of two methods:
1. By robotic insert loading
2. By manual loading



Both of the above methods use a fixture to Core Insert the part to ensure the accuracy of placement



Because gravity aids in the Core Insert Molding process, vertical injection molding presses are often utilized. however, horizontal injection molding presses may also be used





Specification:



Business Type
Factory/Manufacturer
Material
Copper, Brass, Stainless steel,Tungsten, Steel and others as per requirements
Equipment
Wire Cutter, Mirror Spark Machine, Carved high-speed CNC processing center, CNC hammocks, High-precision heartless grinder, Milling machine, Outer diameter grinding puncher, Polishing machine etc
Quotation
According to your drawing (size, material, processing content, etc)
Processing
CNC turning, milling, drilling, CNC Milling, Wire cutting etc
Testing Equipment
CMM triple metameter, Projector, Nikon tool microscope, Caliper, Surface Roughness meter etc
Tolerance/Surface Roughness
+/-0.005 - 0.01mm(Custonize avaiable)丨Ra0.2 - Ra3.2(Custonize avaiable)
Application
Medical, Consumer, Home appliance, Cosmetics, Daily Packaging etc
Surface Treatment
Coating, zinc/chrome/silver/gold Plating, Polish, Nitriding, Blacking, Painting, Heat treatment etc
Size
Depends on your drawing or product standards
Drawing Format
Jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. etc or samples.
QC
100% inspection before shipment, product OK rate 99.8%
Samples Leading Time:
7~15days







Packaging&Delivery



QC System
100% inspection before shipment.
Packaging
Standard package, Pallet or container, As per customized specifications
Delivery Date
7-30 working days based on quantity
Payment Terms
<USD500.00 100% T/T
≥USD500.00 30% T/T deposit, 70% balance before shipment; T/T, L/C&D/P is acceptable
Shipment Terms
1)≤100kg: express& air freight priority
2) >100kg: sea freight priority
3) As per customized specifications







FAQ:



Q: What do you need to provide a quote?

A: Please kindly send us the drawing or sample of your product. Details below should be included,

1.Materials 2. Surface Finish 3. Tolerance 4. Quantity 5.other special requirements



Q: How long is your delivery time?

A: Generally within 2 days of inventory.It is 7-30 days produce an order from MOQ to 40HQ container. But the exact delivery time might be depend on different quantity.



Q: Do you provide samples ? Is it free or extra ?

A: Yes, we are honored to offer you samples or raw material for quality inspection,but do not pay the cost of freight.



Q: How does your factory do regarding quality control?

A: Quality is priority. Senlan always attach great importance to quality control from the very beginning to the end of the production. Before processing we need to test the material first. During the processing we use bar code to tracking the proceeding. Every product will be fully polished and we will do 100% quality inspection before shipment.



Q:What's your warranty terms?

A:We provide free replacement of our parts in case of any unnormal broken within 6 months. The lifespan of parts mainly depends on its material and consumption rate, also correct using method.
