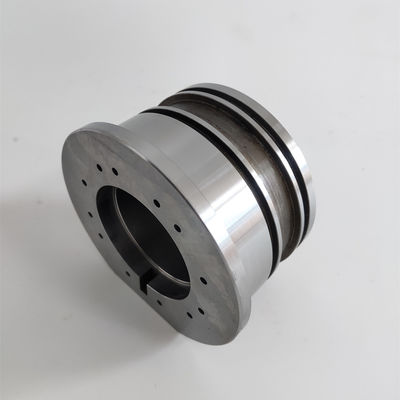

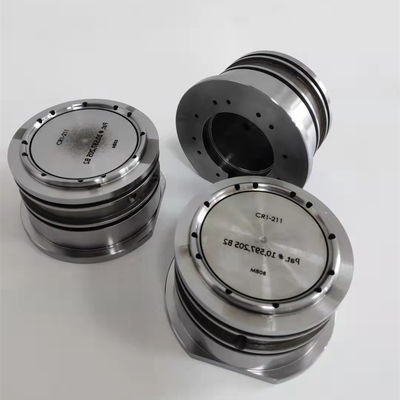

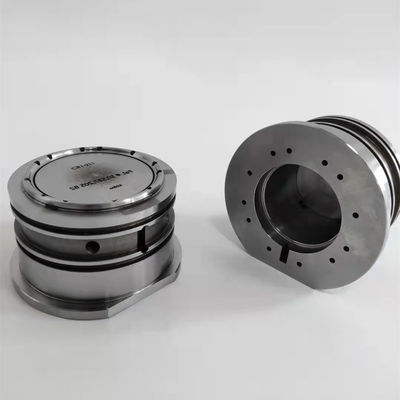

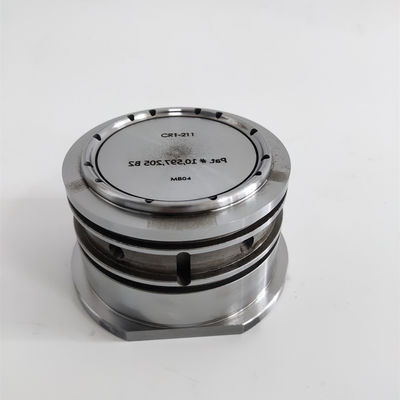

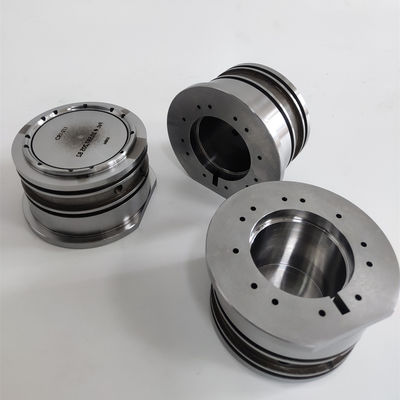

HRC58 High Flatness S136 Core Insert with Precision Inner Grinding
What Is Core Insert Molding
Core Insert Molding (or "Core Insert Moulding") is the process of molding plastic around a core insert that is placed into the injection mold. This core insert is typically a metal component but may also be made of plastic.
The core insert is placed into the mold using one of two methods:
- Robotic insert loading
- Manual loading
Both methods use fixtures to position the core insert, ensuring accurate placement.
Since gravity aids in the core insert molding process, vertical injection molding presses are often utilized. However, horizontal injection molding presses may also be used.
Specifications
| Business Type |
Factory/Manufacturer |
| Material |
Copper, Brass, Stainless steel, Tungsten, Steel and others as per requirements |
| Equipment |
Wire Cutter, Mirror Spark Machine, Carved high-speed CNC processing center, CNC hammocks, High-precision heartless grinder, Milling machine, Outer diameter grinding puncher, Polishing machine etc |
| Quotation |
According to your drawing (size, material, processing content, etc) |
| Processing |
CNC turning, milling, drilling, CNC Milling, Wire cutting etc |
| Testing Equipment |
CMM triple metameter, Projector, Nikon tool microscope, Caliper, Surface Roughness meter etc |
| Tolerance/Surface Roughness |
+/-0.005 - 0.01mm (Customize available) | Ra0.2 - Ra3.2 (Customize available) |
| Application |
Medical, Consumer, Home appliance, Cosmetics, Daily Packaging etc |
| Surface Treatment |
Coating, zinc/chrome/silver/gold Plating, Polish, Nitriding, Blacking, Painting, Heat treatment etc |
| Size |
Depends on your drawing or product standards |
| Drawing Format |
Jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. etc or samples |
| QC |
100% inspection before shipment, product OK rate 99.8% |
| Samples Leading Time |
7~15 days |
Packaging & Delivery
| QC System |
100% inspection before shipment |
| Packaging |
Standard package, Pallet or container, As per customized specifications |
| Delivery Date |
7-30 working days based on quantity |
| Payment Terms |
<USD500.00: 100% T/T
≥USD500.00: 30% T/T deposit, 70% balance before shipment
T/T, L/C & D/P acceptable
|
| Shipment Terms |
1) ≤100kg: express & air freight priority
2) >100kg: sea freight priority
3) As per customized specifications
|
Frequently Asked Questions
Q: What do you need to provide a quote?
A: Please kindly send us the drawing or sample of your product. Details below should be included:
- Materials
- Surface Finish
- Tolerance
- Quantity
- Other special requirements
Q: How long is your delivery time?
A: Generally within 2 days for inventory items. It takes 7-30 days to produce an order from MOQ to 40HQ container. The exact delivery time depends on the quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we are honored to offer you samples or raw material for quality inspection, but customers are responsible for freight costs.
Q: How does your factory do regarding quality control?
A: Quality is our priority. We attach great importance to quality control from beginning to end of production. Before processing, we test materials first. During processing, we use barcodes to track progress. Every product is fully polished and undergoes 100% quality inspection before shipment.
Q: What's your warranty terms?
A: We provide free replacement of our parts in case of any abnormal breakage within 6 months. The lifespan of parts mainly depends on material, consumption rate, and correct usage methods.
