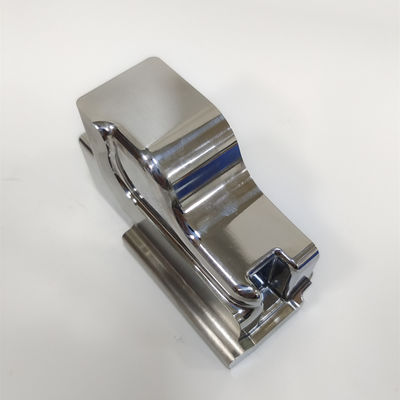

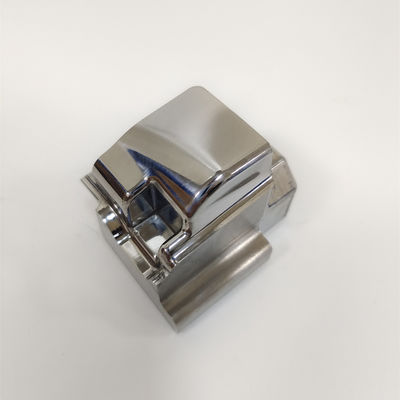

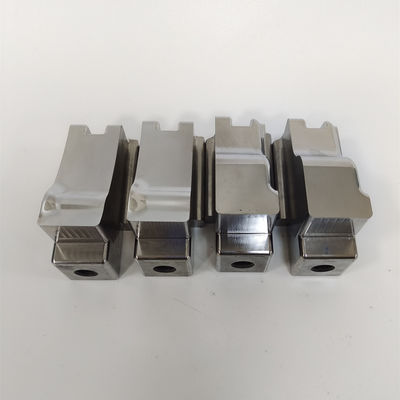

CNC Milling Core Insert Mold Parts with Wire Cutting Processing and HRC58 Hardness for Customizable Injection Tooling

The primary benefit of Core Insert Molding is the addition of strength and stiffness to the finished product. Insert molded products provide the same strength and durability while allowing a decrease in wall thickness versus parts which do not contain Core Inserts when designed for this purpose.

Products with reinforcing Core Inserts are able to absorb higher amounts of stress when compared with those without. They also experience significantly less thermal expansion than their non-insertion counterparts.

In addition, Core Insert Molding can be a cost and time effective process. Adding Core Inserts allows you to incorporate additional functions that perhaps the molded part couldn't provide on its own. It also can create longer lasting products with a higher wear resistance, saving money in both the long and short term.

Specific types of Core Inserts also feature their own unique benefits in addition to the increased strength and stiffness caused by the encapsulation process.

We can provide one stop plastic injection molding service.

• 2D&3D mold design (CAD, UG, Solidworks, ProE, etc, 2D drawing: DXF, DWG, PDF file, 3D model: IGS, PRT, X-T, e-drawing for free.)
• Dimensional report
• ISIR (Sample Inspection Report)
• Pilot production
• Mass production
• Assembly
• Packing & Delivery arrangement
