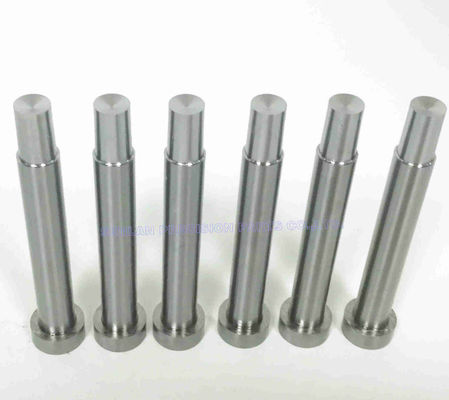

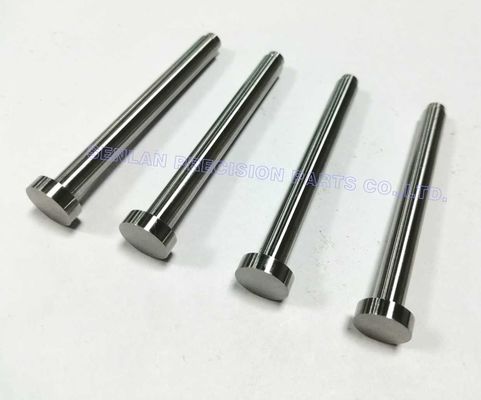

1.2379 Die Steel Ejector Pin with Exact Tolerance +/-0.005mm and Nitriding Treatment for Injection Molds

Ejector pins are essential components in injection molding, functioning as the mechanism that applies force to eject finished parts from molds. During the molding process, once the mold opens, these pins extend into the cavity to push the part out before retracting, allowing the mold to close and be refilled for the next cycle.

The ejection phase represents the final step in plastic injection molding, and its execution quality directly impacts the final product quality. Proper ejection ensures plastic products are retained on the correct mold half (typically the core) and released efficiently using the ejector mechanism.

• Balanced Ejection Force: Ensure balanced force distribution across complex structures by increasing the number of ejector pins where necessary
• Strategic Placement: Position ejector pins in effective locations including ribs, columns, steps, metal inserts, and other complex structural elements. Arrange symmetrically around ribs and columns whenever possible
• Avoid Inclined Surfaces: Refrain from placing ejector pins on slanted surfaces or oversteps. Maintain smooth top surfaces and position in structurally sound rubber areas
• Flat Ejector Selection: Utilize flat ejector pins for deep ribs (depth ≥20mm) or where dome ejector placement is challenging. Consider insert forms to facilitate processing
• Structural Integrity: Avoid placement near sharp or thin steel sections. Ensure ejector pin top surfaces do not contact cavity sides
• Cooling System Consideration: Maintain appropriate distance between ejector pins and water channels to prevent processing issues and water leakage
• Exhaust Function: Position ejector pins in areas prone to vacuum formation to facilitate exhaust during ejection, particularly in larger cavity planes
• Appearance Considerations: Avoid placement on appearance surfaces for cosmetic parts and in light transmission areas for transparent plastic components

SENLAN Mold Part Co., Ltd specializes in manufacturing high-precision mold accessories from our facility in Guangdong, China. We are dedicated to research, development, and production of precision mold parts compliant with JIS, DIN, and AISI standards.

Our product range covers DME, DME-EOC, MEUSBURGER, HASCO, CUMSA, STRACK, RABOURDIN, PROGRESSIVE, SUPERIOR and other major brands. Our manufacturing capabilities include 10 CNC machines, 8 EDM machines, and 6 WEDM machines from industry leaders including MAKINO, OKUMA, FANUC, and SODICK, complemented by OKAMOTO grinding machines, TAKISAWA lathes, and Hexagon CMM measurement systems.

Committed to becoming a global leading supplier for one-stop mold parts solutions, we uphold a "win-win cooperation" philosophy to create lasting value for clients, employees, and society.
