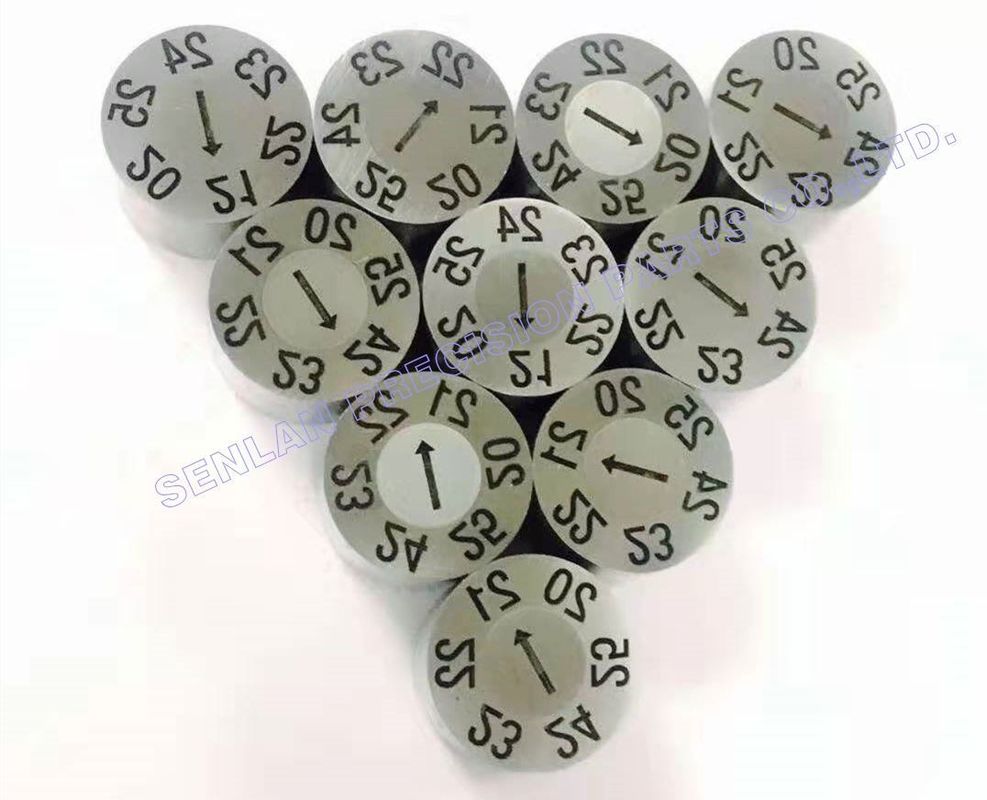

SUS420 Material Injection Mold Date Stamp 0.01mm Verticality ISO9001
Standard Mold Date Code Stamp / Replaceable Mold Date Insert for Year and Month
We manufacture European Spanish Standard, Germany Standard, American Standard, Japanese Standard, OPITZ Standard. We provide replaceable date stamps, inner pointer of date stamps, three-layer combined date stamps, inserted renewable date seal, split-type date stamp, recycling inserts, date stamp of screw die casting die, multi date stamp, die casting die date stamp, and traditional date stamps.
Product Specifications
| Material |
SUS420 |
| Hardness |
48-52HRC |
| Heat treatment |
Available |
| Service |
Made-to-order |
| Surface treatment |
/ |
| Closest tolerance |
±0.01mm |
| Polishness |
Ra0.6 |
| Axiality |
0.01mm |
| Verticality |
0.01mm |
Product Features
- Date mark pin can be disassembled, allowing selection of different inner pointer inserts based on time requirements
- Double date stamps enable two different indications on plastic parts without needing two date codes, reducing cost and space
- Can save by periodically changing the central insert during 7 consecutive years
- Reduces costs and space requirements in standard version (12 months + 6 years)
- Lower internal hardness provides excellent toughness for high-temperature mold operating environments
- Special injection conditions allow use without removing mold from position, eliminating need to disassemble mold when changing insert parts
Installation Guidelines
- Use copper or other soft material for installation knocking
- Ensure correct diameter and depth of the hole
- Center hole must not exceed lid range to avoid sinking during ejection
- Pay attention to character direction for aesthetically pleasing plastic products
- Process according to bevel when finding R face or bevel during installation
Manufacturing Capabilities
Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts.
Services
CNC machining, CNC Milling, Sodick EDM, Sodick Wire-cut, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing.
Industries Served
Medical, Packaging, Aerospace, Electronic
Application Fields
Automobile parts, medical devices, daily necessities packaging, cosmetic packaging, and more.
Why Choose Us
- Specialized manufacturer of precision core pins, cavity pins, and insert pins
- 8 years experience in stamping die parts, injection die parts, auto parts, and metal-working products
- Advanced production equipment and experienced operators
- Extensive OEM and ODM experience
- Competitive pricing, high quality, and fast delivery
Technical Advantages
- Highly polished finish 6-8 micro finish
- Precision form ground to close diameter tolerance ±0.005mm
- Common fractional sizes available up to 3 1/2″ long
- M-2 high speed steel 60-63 Rockwell C
- Custom sizes available up to 1″ diameter
- Custom hardness RC 64-65 and triple drawn available on request
Ordering Process
- Send drawing or sample (non-standard parts) or series number (standard parts)
- NDA available for intellectual property and confidential files
- Immediate evaluation of drawing and requirements
- Quotation provided same day
- 50% deposit before order, 50% balance before shipment
- Production time: 10 working days (7 days for samples)
- Shipping options: express, air, or sea
Inquiry Requirements
For efficient processing, please provide: product drawing, required material, dimensions and tolerance, hardness and surface treatment requirements, and order quantity if available.
Payment Terms: T/T, PayPal, Western Union (50% deposit, balance before shipment)
Packaging: Coated with anticorrosive oil, packed in carton box
Shipping Methods: DHL, TNT, Fedex available
