Nitrided Jet Cooling Core Pins | ±pm$0.01mm Concentricity HPDC Mold Parts

Product Overview

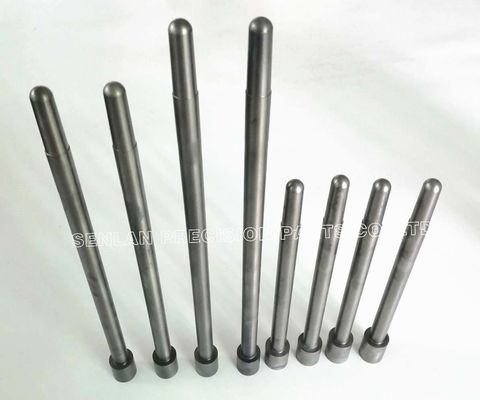

Nitrided jet cooling core pins are precision die casting mold components designed for injection mold applications requiring efficient internal cooling, high wear resistance, and strict concentricity control. Manufactured through precision CNC machining, controlled heat treatment, and nitriding processes, these core pins achieve concentricity up to 0.01 mm. All parts are custom produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• Precision jet cooling core pin design for enhanced heat dissipation

• Nitriding surface treatment to improve wear resistance and service life

• Concentricity control up to 0.01 mm for stable mold alignment

• Internal cooling channel accuracy for consistent thermal performance

• Stable geometry under high pressure and thermal cycling

• Suitable for multi-cavity and high-cycle mold systems

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These nitrided jet cooling core pins are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging and syringe-related injection molds

• Precision die casting molds requiring active cooling control

They are especially suitable for applications requiring thermal efficiency, dimensional stability, and repeatable molding performance.

Mold Structure & Design Description

Jet cooling core pins are installed on the core side of injection or die casting molds and incorporate internal cooling channels to regulate mold temperature.
Key design considerations include:

• Precise concentricity between outer geometry and internal cooling channels

• Accurate jet outlet positioning for effective heat transfer

• Proper sealing and alignment within the mold structure

• Structural strength to withstand injection pressure and thermal stress

All core pins are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures nitrided jet cooling core pins using advanced CNC machining and precision finishing technologies.
Our production facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• High-accuracy CNC turning and milling for core pin geometry

• Precise machining of internal cooling channels

• Stable concentricity control up to 0.01 mm

• Consistent surface finish prior to nitriding

• Reliable repeatability across production batches

Nitriding is applied after machining to enhance surface hardness while maintaining core toughness.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production from 2D drawings or 3D models

• Customized cooling channel layouts and pin geometries

• Material selection and nitriding parameter control

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold core pins

Technical communication is maintained throughout the project to ensure accurate execution of specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision operates a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional and concentricity inspection

• Cooling channel verification and surface treatment inspection

• Final inspection prior to shipment with full documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Precision mold core pins

• Jet cooling mold inserts

• Nitrided mold sleeves

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Can 0.01 mm concentricity be consistently achieved?
Yes. Concentricity up to 0.01 mm can be achieved depending on geometry and design, verified through precision inspection.

Q2: What is the benefit of jet cooling in core pins?
Jet cooling improves heat dissipation efficiency, helping to stabilize mold temperature and reduce cycle time.

Q3: Are these core pins manufactured strictly according to drawings?
Yes. All core pins are produced strictly based on customer-provided drawings and technical specifications.

Q4: Can replacement jet cooling core pins be manufactured for existing molds?
Yes. Replacement and interchangeable core pins can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding nitrided jet cooling core pins with 0.01 mm concentricity, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
