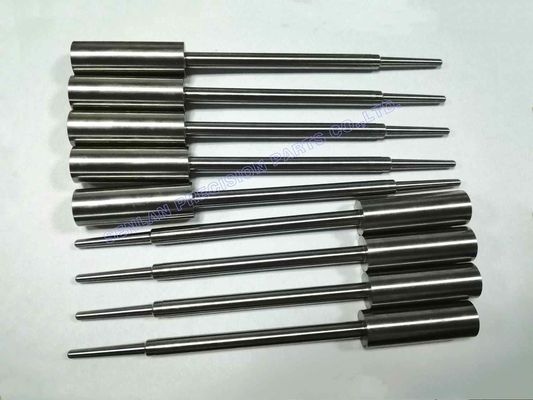

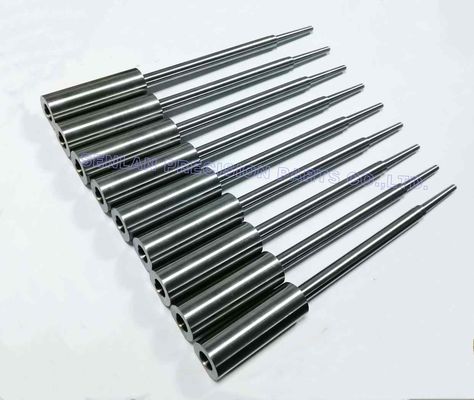

H13 Metric Core Pins with Internal Cooling | High-Efficiency HPDC Mold Parts

Product Overview

Durable metric core pins with integrated cooling systems are precision die casting mold components designed for injection molds requiring controlled thermal performance and reliable dimensional alignment. Manufactured through CNC machining and precision finishing, these core pins achieve concentricity up to 0.2 mm while supporting efficient internal cooling. All components are custom produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• Metric core pin design for standardized mold assemblies

• Integrated cooling system to improve thermal regulation

• Concentricity control up to 0.2 mm for stable alignment

• Durable construction for repeated molding cycles

• CNC machined geometry for consistent fit and function

• Compatible with multi-cavity mold configurations

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These metric core pins with cooling systems are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging and syringe-related injection molds

• Industrial die casting molds requiring controlled cooling

They are suitable for applications where thermal stability, durability, and repeatable mold performance are required.

Mold Structure & Design Description

Metric core pins with cooling systems are installed on the core side of injection or die casting molds to form internal product features while assisting heat dissipation.
Key design considerations include:

• Alignment between external pin geometry and internal cooling channels

• Controlled concentricity for reliable mold assembly

• Effective coolant flow for temperature regulation

• Structural strength to withstand injection pressure

All components are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures metric core pins using advanced CNC machining and precision finishing technologies.
Our production facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• Accurate CNC turning and milling for metric dimensions

• Controlled machining of internal cooling channels

• Stable concentricity control up to 0.2 mm

• Consistent surface finish across production batches

• Reliable repeatability for customized and replacement mold parts

Machining routes are selected based on geometry complexity, tolerance requirements, and cooling design.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production from 2D drawings or 3D models

• Customized metric sizes, cooling layouts, and tolerances

• Flexible material and process selection

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold components

Technical communication is maintained throughout the project to ensure accurate execution of specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision applies a structured quality control process:

• Incoming material inspection and traceability

• In-process dimensional and concentricity inspection

• Cooling channel verification

• Final inspection prior to shipment with complete documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Precision mold core pins

• Cooling core inserts

• Mold cavity inserts

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Can 0.2 mm concentricity be consistently achieved?
Yes. Concentricity up to 0.2 mm can be achieved depending on geometry and design and is verified during inspection.

Q2: What is the function of the cooling system in core pins?
The cooling system assists heat dissipation, helping stabilize mold temperature during production.

Q3: Are these metric core pins manufactured strictly according to drawings?
Yes. All components are produced strictly based on customer-provided drawings and technical specifications.

Q4: Can replacement core pins be manufactured for existing molds?
Yes. Replacement and interchangeable core pins can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding metric core pins with integrated cooling systems and 0.2 mm concentricity, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
