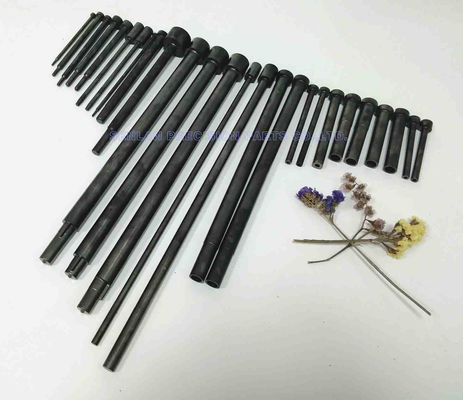

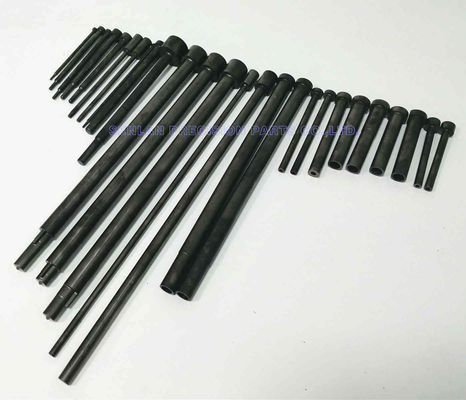

H13 (1.2344) Corrosion Resistant Core Pins |±pm$0.01mm Precision Mold Sleeves

Product Overview

Corrosion-resistant core pins and sleeves are precision die casting mold components designed for injection mold applications requiring tight dimensional tolerances and stable performance in demanding environments. Manufactured through precision CNC machining and controlled finishing processes, these components achieve tolerances up to ±0.01 mm. All parts are custom produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• Corrosion-resistant material options for extended service life

• Precision CNC machining with tolerance control up to ±0.01 mm

• Stable concentricity and fit between core pins and sleeves

• Consistent surface quality for reliable molding and demolding

• Suitable for high-cycle and multi-cavity mold systems

• Reliable interchangeability for replacement components

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These corrosion-resistant core pins and sleeves are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging and syringe-related injection molds

• Industrial die casting and precision injection mold assemblies

They are especially suitable for applications requiring tight tolerances, corrosion resistance, and repeatable mold performance.

Mold Structure & Design Description

Core pins and sleeves are installed as matched functional components within injection and die casting molds, forming internal geometries while maintaining precise alignment.
Key design considerations include:

• Accurate diameter and concentricity control between pin and sleeve

• Proper clearance and fit for smooth mold operation

• Structural stability under injection pressure

• Compatibility with modular and multi-cavity mold designs

All components are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold performance.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures corrosion-resistant mold core pins and sleeves using advanced CNC machining and precision finishing technologies.
Our facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• High-accuracy CNC turning and milling

• Stable tolerance control up to ±0.01 mm

• Consistent surface finish for functional interfaces

• Reliable repeatability across production batches

Machining routes are optimized according to geometry, tolerance requirements, and mold application.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production from 2D drawings or 3D models

• Customized core pin and sleeve sizes, tolerances, and geometries

• Flexible material and process selection

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold components

Technical communication is maintained throughout the project to ensure accurate execution of specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision applies a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional and concentricity inspection

• Final inspection prior to shipment

• Complete inspection records and technical documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Precision mold core pins

• Mold sleeves and bushings

• Mold cavity inserts

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Can ±0.01 mm tolerance be consistently achieved?
Yes. Tolerance up to ±0.01 mm can be achieved depending on geometry and design and is verified during inspection.

Q2: Are these core pins and sleeves manufactured strictly according to drawings?
Yes. All components are produced strictly based on customer-provided drawings and technical specifications.

Q3: What materials are available for corrosion resistance?
Material selection can be adjusted based on mold environment and customer requirements.

Q4: Can replacement core pins and sleeves be manufactured for existing molds?
Yes. Replacement and interchangeable components can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding corrosion-resistant die casting mold core pins and sleeves with ±0.01 mm tolerance, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
