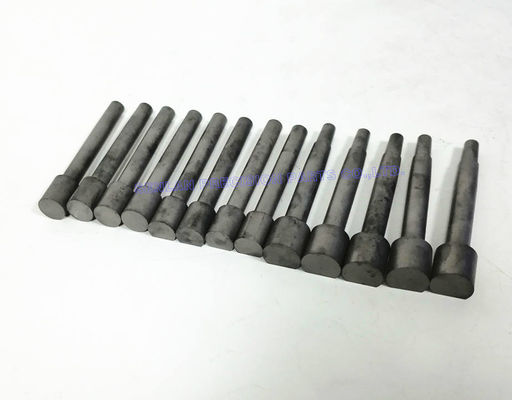

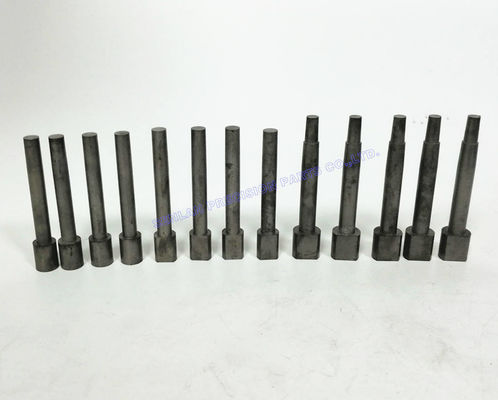

H13 (1.2344) Headed Core Pins | Custom Die Casting Mold Components | ±pm$0.01mm

Product Overview

Customized size die casting mold parts, including cut head core pins, are precision components used in injection and die casting mold assemblies where accurate geometry and stable performance are required. Manufactured through CNC turning and precision machining processes, these components provide consistent dimensional accuracy and reliable operation. All parts are produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• Precision-manufactured cut head core pins and die casting mold parts

• Fully customized dimensions and geometries based on drawings

• CNC turning combined with precision machining

• Stable dimensional accuracy for functional mold areas

• Consistent surface quality for reliable molding and demolding

• Suitable for high-cavity and long-run mold applications

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These customized die casting mold components are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging molds and syringe-related tooling

• Industrial molds requiring custom core pin structures

They are particularly suitable for applications requiring non-standard sizes, precise cut head geometry, and repeatable mold performance.

Mold Structure & Design Description

Cut head core pins are typically installed on the core side of die casting or injection molds and are responsible for forming internal features or specific functional geometries.
Key design considerations include:

• Accurate head shape and dimensional control

• Proper alignment and fit within mold assemblies

• Structural strength to withstand injection pressure and repeated cycles

• Compatibility with multi-cavity and interchangeable mold designs

All components are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures customized die casting mold parts using advanced CNC machining technologies.
Our production facilities are equipped with high-precision machining centers and CNC lathes from MAKINO (Japan) and HARDINGE (USA), along with other internationally recognized equipment, enabling:

• Stable machining tolerances for precision core pins

• Accurate control of cut head geometry and concentricity

• Consistent surface quality across production batches

• Reliable repeatability for customized and replacement mold parts

Machining routes are selected according to part geometry, tolerance requirements, and mold function.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production based on 2D drawings or 3D models

• Customized sizes, head shapes, and functional features

• Flexible material selection and processing routes

• Small-batch prototyping and volume production

• Long-term supply of spare and replacement mold components

Technical communication is maintained throughout the project to ensure accurate execution of customer specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision operates a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional inspection during machining

• Final inspection prior to shipment

• Complete inspection records and technical documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Precision mold core pins

• Mold cavity inserts

• Die casting mold inserts

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are cut head core pins manufactured strictly according to drawings?
Yes. All components are produced strictly based on customer-provided drawings and specifications.

Q2: Can non-standard sizes and head shapes be supported?
Yes. Customized dimensions, head profiles, and functional features are fully supported.

Q3: What machining tolerance can be achieved?
Depending on part geometry, tight machining tolerances suitable for precision mold applications can be achieved.

Q4: Can these parts be supplied as replacement components for existing molds?
Yes. Replacement and interchangeable mold parts can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding customized size die casting mold parts and cut head core pins, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
