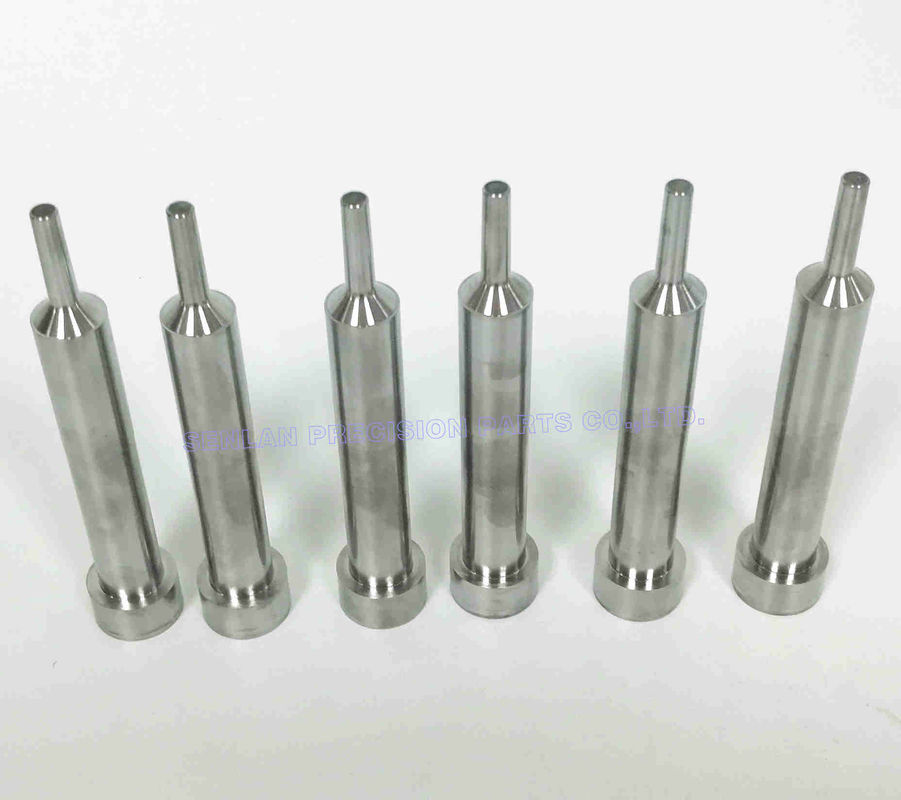

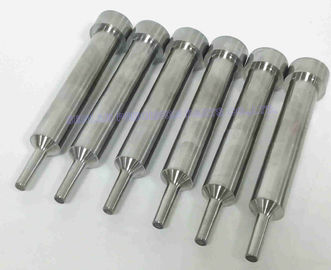

ISO9001 High Precision Punch Pins with 47-49 HRC for Stamping Die
Our precision customized punch pins achieve tolerances of ±0.005mm, enabling the production of high-precision stamped components. When you require superior precision and extended lifespan punches, our solutions deliver exceptional performance.
Product Specifications
| Material |
SKD61 |
| Hardness |
47-49 HRC |
| Heat Treatment |
Available |
| Service |
Made-to-order |
| Surface Treatment |
TiCN, TiN, TiALM, Ticrn, nitriding, Black oxygened, Black coating etc. |
| Closest Tolerance |
±0.05mm |
| Polishness |
Ra0.6 |
| Axiality |
0.005mm |
| Verticality |
0.005mm |
Product Performance
Wear resistance, deformation resistance, fracture resistance, fatigue resistance, occlusion resistance, thermal softening resistance, thermal melt damage resistance, erosion resistance, thermal stability, tempering stability, thermal fatigue resistance, fracture toughness, high temperature wear resistance, and antioxidant properties.
Applications
Medical, Packaging, Aerospace, Electronics, Die casting dies, Bottle cap, Automotive, Cosmetic, and various industrial applications.
Technical Support
We accept drawing formats: PDF, DWG, DXF, IGS, STEP, and others.
Manufacturing Advantages
- Clean and organized production facility
- Strict quality management with skilled technicians
- Comprehensive material selection (imported and domestic)
- High-precision equipment including surface grinding and wire-cutting
- Quality control throughout all production processes
- Multilingual support in English and Japanese
Our Services
- Specialized in precision mold parts with prompt response (within 24 hours)
- Advanced facilities and experienced engineering team
- Guaranteed quality with superior material selection
- Customer-oriented cost control solutions
- Comprehensive one-stop service support
- 100% inspection of all parts before shipment
Product Range
Core pins, cavity pins, insert pins, HSS punches, precision punches, special-shaped punches, ejector pins, ejector sleeves, two-stage ejector pins, guide pillars, guide bushings, guide post sets, slide core units, latch locks, and locating series.
We welcome your inquiries and questions. Our team will respond promptly to discuss your specific requirements and provide customized solutions.
