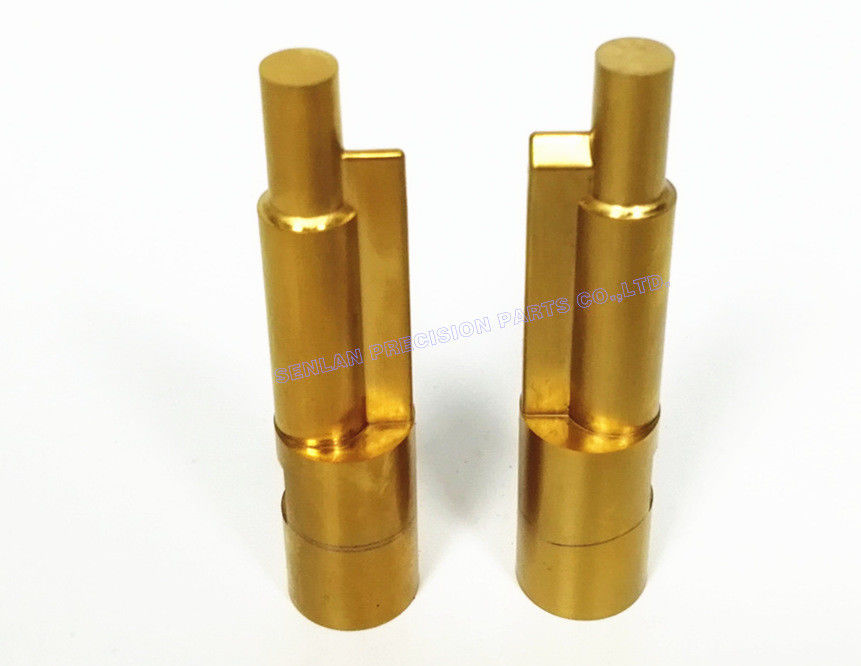

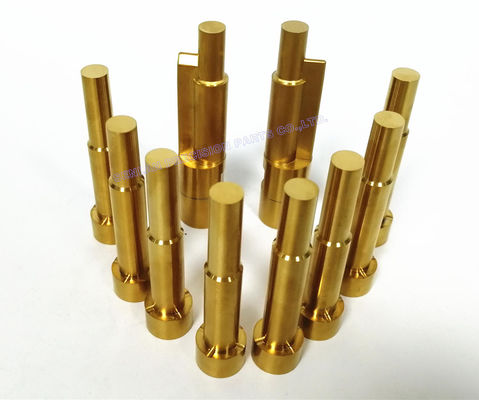

TiN Coated H13 (1.2344) Die Casting Parts | Custom Automotive Mold Components

Product Overview

Custom tin-coated die casting mold parts manufactured from AISI 1.2344 steel are designed for demanding industrial tooling environments. Senlan Precision supplies built-to-print mold components with controlled hardness, stable dimensions, and surface coatings engineered to improve wear resistance and thermal stability in high-cycle die casting operations.

Core Features & Technical Advantages

• Built-to-Print manufacturing based strictly on customer drawings

• AISI 1.2344 hot-work tool steel with stable heat treatment control

• Tin (TiN) coating to reduce friction and surface adhesion

• Improved resistance to wear, soldering, and thermal fatigue

• Suitable for high-pressure and high-temperature die casting molds

• Consistent dimensional accuracy for replaceable mold components

Applications & Industry Use

These tin-coated die casting mold parts are widely used in:

• Industrial metal die casting tooling systems

• High-cycle die casting molds for precision components

• Multi-cavity and modular mold structures

• Tooling systems requiring coated wear surfaces

• Export-oriented industrial mold and tooling projects

All applications are industrial tooling related, not consumer or end-use products.

Mold Structure & Design Description

Die casting mold parts typically function as:

• Core inserts

• Cavity inserts

• Wear plates and functional mold components

Design considerations include:

• Thermal load distribution and heat transfer

• Clearance control between mating mold parts

• Coating thickness compatibility with tolerances

• Replaceable insert structure to extend mold life

All parts are produced exactly according to approved drawings without design alteration unless requested.

Manufacturing Capability & CNC Machining

Senlan Precision operates precision machining centers from MAKINO (Japan) and HARDINGE (USA) to ensure repeatable quality.

Manufacturing processes include:

• CNC milling and turning

• EDM machining for complex geometries

• Precision grinding for tight tolerance surfaces

• Controlled heat treatment coordination

• TiN surface coating via qualified partners

Each process step follows defined inspection standards.

Custom Development & OEM Cooperation Process

We support OEM / Built-to-Print cooperation with a transparent workflow:

1. Technical drawing and specification review

2. Machining and coating feasibility analysis

3. Precision manufacturing and finishing

4. Dimensional and visual inspection

5. Export packaging and delivery

Both prototype and series production are supported.

Quality Control & Export Experience

Quality assurance includes:

• Incoming material verification

• In-process dimensional control

• Final inspection before shipment

• Optional inspection reports on request

Senlan Precision has extensive experience supplying die casting mold parts to international customers with stable export logistics.

Related Products

• Die casting mold core pins

• Mold cavity inserts

• Hot-work tool steel mold components

• Coated mold wear parts

All related products are available on a customized / OEM / Built-to-Print basis.

Technical FAQ

Q1: Do you offer standard die casting mold parts?
No. All parts are custom manufactured according to customer drawings.

Q2: Is TiN coating thickness considered in machining tolerances?
Yes. Coating allowance is evaluated during machining to ensure final dimensional accuracy.

Q3: Can you supply replacement inserts for existing molds?
Yes. Replacement mold parts can be produced based on drawings or verified samples.

Q4: What information is required for quotation?
2D drawings, material requirements, hardness range, coating specifications, and quantity.

Request a Quotation

For custom tin-coated 1.2344 die casting mold parts, please submit your drawings and technical requirements.
Our engineering team will provide a detailed technical evaluation and quotation.
