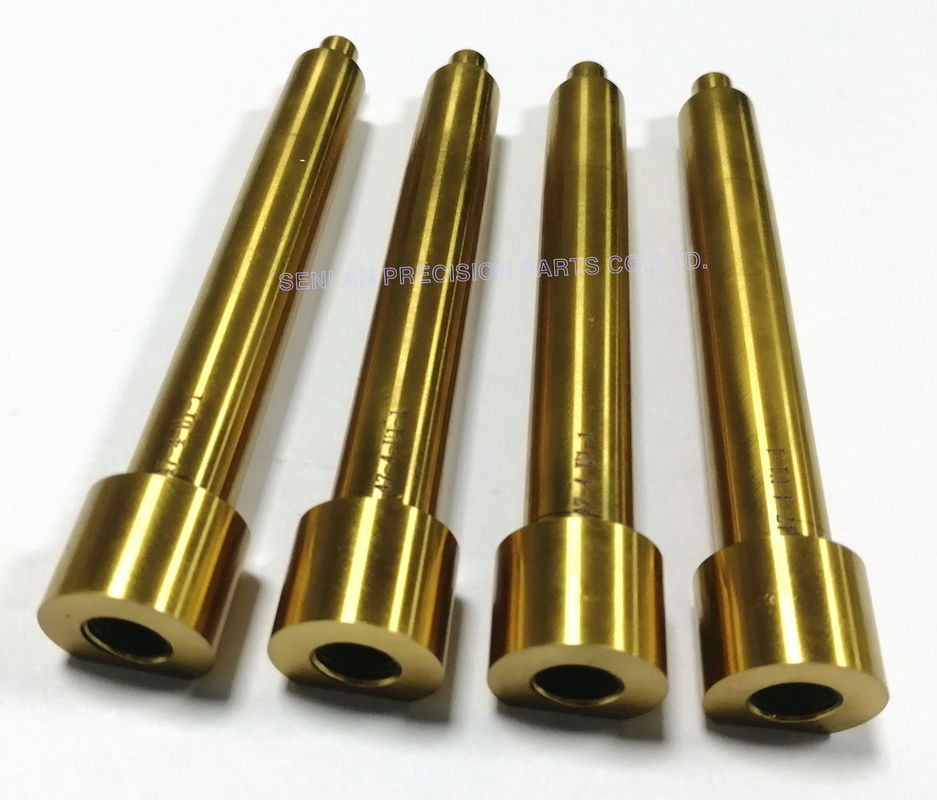

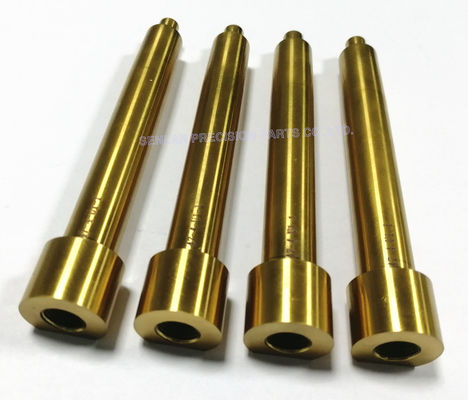

Custom TiN Coated Die Casting Parts | Engraved Mold Components for Traceability

Product Overview

Customized dimension die casting mold parts with TiN coating and engraving are precision-engineered components manufactured for high-load molding and tooling systems. These parts are produced strictly according to customer drawings, focusing on dimensional accuracy, surface protection, and traceability marking. Senlan Precision supplies these mold components under a built-to-print OEM model for industrial injection and die casting tooling applications.

Core Features & Technical Advantages

• Custom dimensions manufactured strictly to technical drawings

• TiN (Titanium Nitride) coating for improved wear resistance

• Laser or mechanical engraving for identification and traceability

• Stable dimensional accuracy after coating process

• Suitable for high-pressure and repetitive molding environments

• Precision CNC machining and finishing

• OEM / custom manufacturing without standard off-the-shelf parts

Application Scenarios / Industry Applications

These customized TiN-coated mold parts are applied in:

• Industrial injection molding tooling systems

• Die casting molds requiring enhanced surface durability

• Multi-cavity molds with strict dimensional consistency

• Packaging mold tooling for caps, closures, and containers

• Medical and industrial molding tools requiring part identification

All applications are industrial and technical, focusing on tooling performance and lifespan.

Mold Structure & Design Description

Customized die casting mold parts typically function as load-bearing or wear-critical components within the mold structure.

Design considerations include:

• Dimensional accuracy before and after TiN coating

• Controlled coating thickness to maintain functional tolerances

• Engraving position defined to avoid stress concentration

• Compatibility with cavity, core, and insert assemblies

• Structural stability under repeated thermal and mechanical load

All design inputs are supplied by the customer and manufactured accordingly.

Manufacturing Capability & CNC Machining

Senlan Precision provides complete in-house machining and finishing for coated mold components.

Manufacturing capabilities include:

• CNC milling and turning for complex geometries

• Precision grinding for functional surfaces

• Controlled heat treatment prior to TiN coating

• TiN surface coating with thickness consistency control

• Engraving by laser or mechanical marking

High-precision equipment from MAKINO (Japan) and HARDINGE (USA) ensures machining stability and repeatability.

Custom Development / OEM Cooperation Process

All parts are produced under a Custom / OEM / Built-to-Print workflow.

Standard cooperation process:

1. Drawing and specification review

2. Material and coating requirement confirmation

3. CNC machining and heat treatment

4. TiN coating and engraving execution

5. Dimensional inspection and final quality check

Both prototype and batch production are supported.

Quality Control & Export Experience

Quality control focuses on dimensional integrity and coating reliability:

• Incoming material verification

• In-process dimensional inspection

• Coating thickness and adhesion monitoring

• Final inspection after engraving

• Export-ready packaging for international delivery

Senlan Precision has experience supplying precision mold components to global industrial customers.

Related Products

• Die casting mold cores and cavity inserts

• TiN-coated core pins and ejector pins

• Precision CNC machined mold inserts

• Customized wear-resistant mold components

All related products are available on a built-to-print basis.

Technical FAQ

Q1: Are these mold parts available in standard sizes?
No. All parts are custom-manufactured according to customer drawings.

Q2: Will TiN coating affect dimensional accuracy?
Coating thickness is controlled and considered during machining to maintain functional tolerances.

Q3: What is the purpose of engraving?
Engraving is used for part identification, traceability, and internal management.

Q4: Can coating and engraving be combined in one process?
Yes. The sequence is defined based on technical requirements and drawings.

Request a Quotation

For Customized Dimensions Die Casting Mold Parts with TiN Coating and Engraving, please provide your drawings, material specifications, and coating requirements.
Our engineering team will evaluate your project and offer a technical quotation accordingly.
