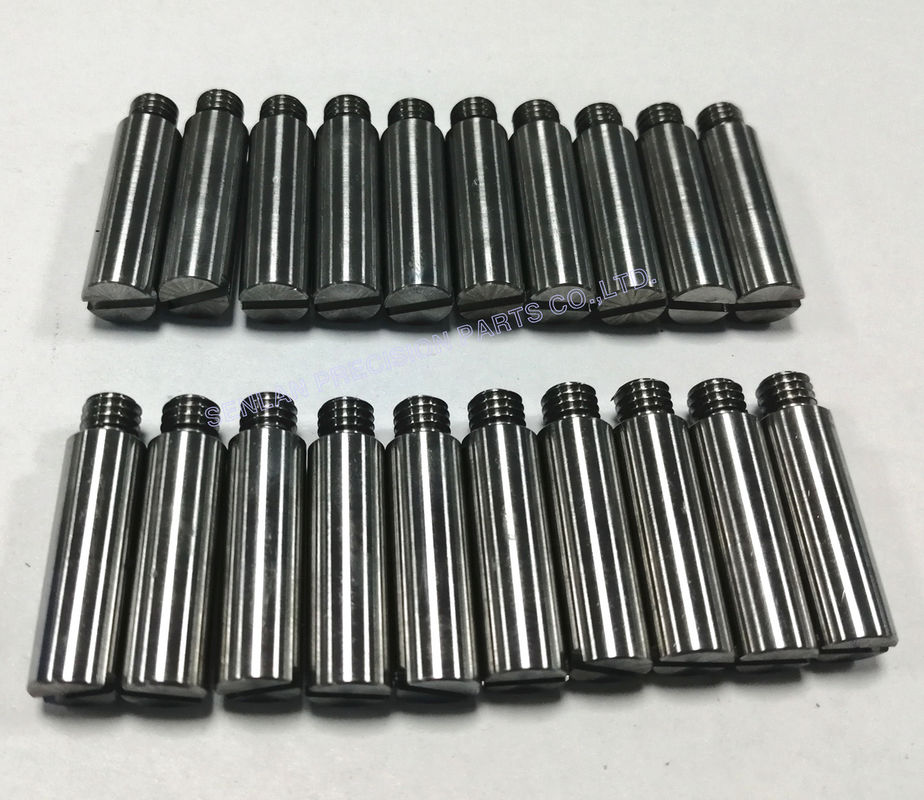

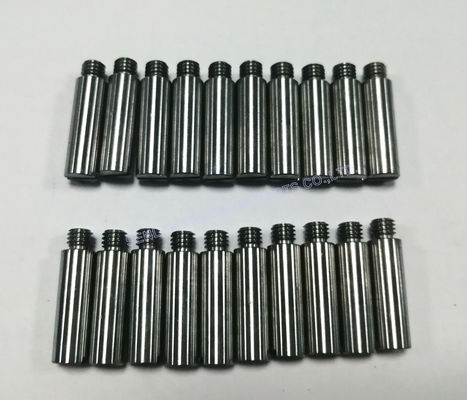

1.2344 Positioning Pins for Multi-Cavity Precision Molds
In multi-cavity precision molds, reliable alignment is critical. Our 1.2344 positioning pins are precision mold alignment components manufactured to customer drawings to support repeatable location, stable mold closing, and consistent production performance.
1.2344 (H13-class hot-work tool steel) is selected for positioning and alignment parts that must withstand repeated cycling and contact stress. We machine and finish positioning pins with strict control of diameter tolerance, straightness, seating interfaces, and surface finish, supporting both new mold builds and replacement programs for high-cavity tooling.
Product Function & Design
What Positioning Pins Do
- Ensure repeatable plate-to-plate and insert-to-plate positioning
- Maintain stable alignment of shut-offs and cavity/core relationships
- Reduce mismatch and protect precision edges from impact wear
- Support interchangeable maintenance by keeping datums consistent across replacements
Typical Design Features
- Precision ground cylindrical body for accurate fit
- Seating shoulder or locating section for repeatable installation
- Lead-in/chamfer for smooth engagement
- Threaded end or retention feature for mounting/removal
Why 1.2344 Material is Used
- High toughness to resist cracking and chipping
- Good thermal fatigue resistance under repeated cycling
- Reliable heat-treatment response for durable working hardness
- Stable performance in demanding mold environments
Final hardness, tolerance class, and surface finish are manufactured to your drawing and mold requirements.
Applications
1.2344 positioning pins are used in multi-cavity precision molds, including:
- High-cavity injection molds requiring consistent alignment across cavities
- Mold plates and insert systems needing repeatable datum positioning
- Tooling programs where interchangeable spare parts are required
- Mold maintenance and refurbishment projects replacing worn locating pins
Precision & Manufacturing Capabilities
Manufacturing Processes
- Precision CNC turning for basic geometry and threaded sections
- Grinding for critical diameters, straightness, and seating surfaces
- Heat treatment coordination for target hardness and stability
- Fine finishing/polishing for smooth engagement and reduced wear
- Deburring and edge control for safe handling and consistent assembly
Key Quality Controls
- Diameter tolerance control for correct fit (clearance/interference as specified)
- Straightness control to avoid binding and uneven contact
- Seating shoulder verification for repeatable positioning
- Surface finish control to reduce galling and wear
- Thread quality verification where threaded ends are specified
Inspection & Documentation
- Dimensional inspection reports available (key dimensions)
- Material certificates and heat treatment records upon request
- Marking/traceability options for set management (if needed)
Customer Value for Multi-Cavity Mold Consistency
More Consistent Part Quality
Accurate positioning keeps cavity/core relationships stable, reducing mismatch and improving repeatability across all cavities.
Less Wear on Precision Components
Correct alignment reduces impact and uneven loading, extending the life of expensive core/cavity components.
Faster Maintenance and Predictable Replacement
Consistent datums and controlled fits enable drop-in replacement, reducing hand fitting and downtime.
Better Stability in High-Cycle Production
Durable materials and stable finishing help maintain alignment performance over long production runs.
What We Need for Quotation
To quote 1.2344 positioning pins accurately, please provide:
- 2D drawing (PDF/DWG) and/or 3D CAD (STEP/IGES)
- Quantity and required lead time
- Pin style: straight/stepped, shoulder details, threaded end requirements
- Critical dimensions: diameter, length, fit class, seating interface dimensions
- Material requirement: 1.2344 (confirm acceptable equivalents if any)
- Heat treatment/hardness requirement
- Surface finish requirement (if specified)
- Mating hole/bushing dimensions (helpful for fit confirmation)
- Inspection/document needs (report format, traceability)
Frequently Asked Questions
What's the difference between a positioning pin and a guide post?
A guide post (leader pin) guides the mold through the opening/closing stroke. A positioning pin is typically used for precise, repeatable location of plates/inserts at assembly interfaces.
Why do positioning pins wear or cause alignment issues?
Common causes include incorrect fit clearance, insufficient hardness, poor surface finish, contamination, or damaged mating holes. Proper material selection and precision grinding reduce these risks.
Can you manufacture positioning pins to match existing molds?
Yes. If you provide drawings or mating interface dimensions, we can manufacture replacement pins for drop-in compatibility.
Do you provide inspection reports and certificates?
Yes. Inspection reports and material/heat treatment certificates are available upon request.
Send us your drawings (STEP/2D), quantities, fit requirements, target hardness, and required delivery date for 1.2344 positioning pins. We'll reply quickly with a clear quotation, lead time, and available quality documentation options (inspection report, material certificate, heat treatment record, traceability options).
