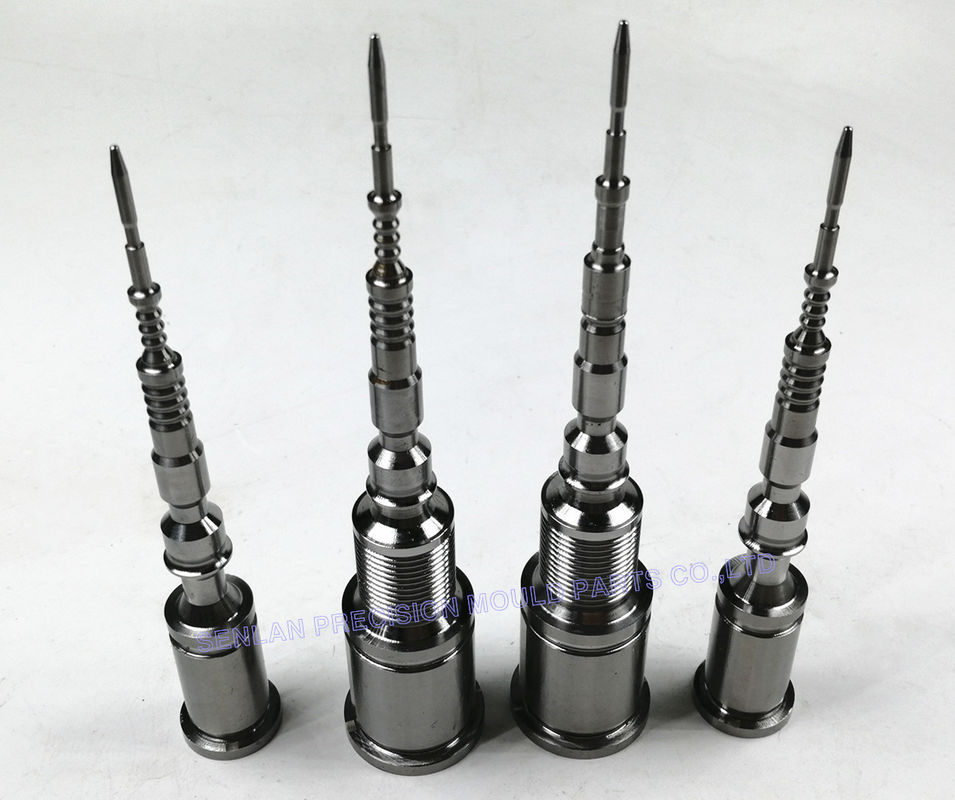

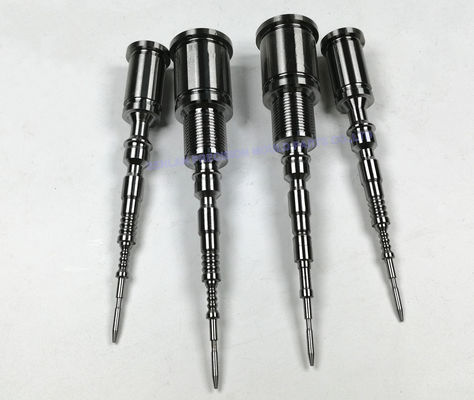

Multi-Cavity Mold Components | Precision Parts for Plastic Insert Molding

Product Overview

Our Special Shape Multi-Cavity Plastic Mould Parts are specifically designed for plastic insert molding applications. With exceptional precision and built-to-last durability, these mould components are ideal for high-volume production of complex, multi-cavity moulds. Manufactured to meet the highest standards, they are engineered to handle challenging molding applications with ease, ensuring high performance and superior product quality in sectors like packaging, medical devices, and automotive parts.

Core Features & Advantages

• Special Shape Design: Custom-engineered mould parts designed to accommodate specific shapes and requirements, enhancing flexibility and precision in plastic insert molding.

• Multi-Cavity Molding Capability: Enables efficient production of multiple parts in a single mould cycle, reducing cycle times and increasing production efficiency.

• High-Quality Materials: Crafted using durable materials, such as high-grade steel and alloy, providing exceptional strength, longevity, and wear resistance.

• Precision Machining: Manufactured with advanced CNC machining processes, ensuring tight tolerances (±0.02mm) and exceptional dimensional accuracy.

• Optimized for High-Volume Production: Designed for industries that require high output and consistent quality, these parts are perfect for multi-cavity injection moulding and insert moulding processes.

Applications & Industry Use

Our special shape multi-cavity mould parts are widely used in various industries, such as:

• Packaging Industry: Used for the production of high-precision mould parts for bottle caps, seals, and closures, enhancing packaging efficiency.

• Medical Industry: Ideal for medical device manufacturing, including components like syringes, vials, and other consumables, where accuracy and reliability are critical.

• Automotive Industry: Essential in producing automotive components, such as brackets, mounting systems, and connectors, which require precision and high durability.

• Consumer Electronics: Suitable for the production of parts for electronic housings, connectors, and other intricate components.

Mould Structure & Design Explanation

• Multi-Cavity Structure: The moulds are designed with multiple cavities, allowing for simultaneous production of several parts, reducing cycle time and improving production efficiency.

• Special Shape Inserts: These inserts are designed to precisely fit into complex moulds, ensuring uniformity in insert molding and plastic injection molding processes.

• Threaded and Non-Threaded Options: Whether your design requires threaded inserts for a secure fit or non-threaded inserts for general use, we can customize these features based on your needs.

• Optimized Cooling System: Integrated cooling channels for efficient temperature management, enhancing production consistency and reducing cycle times.

Manufacturing Capabilities & CNC Machining Expertise

• Advanced CNC Machining: Our CNC turning and milling services ensure that each mould part is crafted with the highest precision, offering exceptional consistency and repeatability in production.

• Material Expertise: We use a variety of high-performance materials, including steel, stainless steel, and specialized alloys, tailored to suit the specific demands of your application.

• Custom Prototyping: Prototypes are designed and tested before mass production to ensure that all parts meet your specifications and performance requirements.

• Scalable Production: Whether you're ordering small runs or high-volume production, we have the capacity to meet your requirements with fast turnaround times.

Custom Development / OEM Process

1. Consultation & Design: Start with a consultation where we gather your specific requirements, such as material selection, design specifications, and application needs for multi-cavity moulds and insert moulding.

2. Prototype & Testing: Our engineering team will create a prototype based on your design specifications. This prototype undergoes thorough testing to verify fit, function, and durability.

3. Production & CNC Machining: Once approved, we move forward with full-scale CNC machining to produce your special shape mould parts with exact precision.

4. Quality Control: Throughout the production process, we implement strict quality control measures, including dimensional checks, material testing, and surface finish inspection.

5. Shipping & Delivery: After passing all inspections, we ensure timely delivery of your parts with worldwide shipping options to meet your production timelines.

Quality Control & Export Experience

• ISO 9001 Certified: Our manufacturing facility adheres to ISO 9001 quality management standards, ensuring that all parts meet rigorous quality criteria and performance expectations.

• Rigorous Testing: Each mould part undergoes multiple quality checks, including dimensional inspection, surface finish analysis, and hardness testing, ensuring long-term performance.

• Global Shipping & Export: With years of experience in international export, we ensure compliance with global standards, providing hassle-free shipping to customers worldwide.

Related Products (Internal Links)

• Custom Plastic Injection Mould Parts

• High Precision CNC Machined Components

• Automotive Mould Components

• Medical Mould Inserts

Frequently Asked Questions (FAQ)

Q1: What materials are used for your special shape multi-cavity mould parts?
We offer a variety of high-performance materials, including steel, stainless steel, and alloys, based on your application requirements such as strength, durability, and thermal resistance.

Q2: Can you customize mould parts for specific applications?
Yes, we provide custom-designed mould parts tailored to meet your specific production needs, including special shapes, sizes, and features like threaded inserts.

Q3: What industries do you serve with these mould parts?
Our parts are commonly used in the packaging, medical, automotive, and consumer electronics industries for multi-cavity moulding, insert moulding, and high-precision plastic components.

Q4: How do you ensure the quality of the mould parts?
Our quality control process includes dimensional checks, material testing, and surface finish inspection, ensuring the final product meets the highest standards of precision and durability.

Get a Quote

Ready to optimize your plastic moulding process with high-quality multi-cavity mould parts? Contact us today to request a custom quote. Our team of experts is here to support you with precision-engineered solutions tailored to your needs.
