1.2343 Die Casting Core Pins | 44-48 HRC | Precision Mold Parts

Product Overview

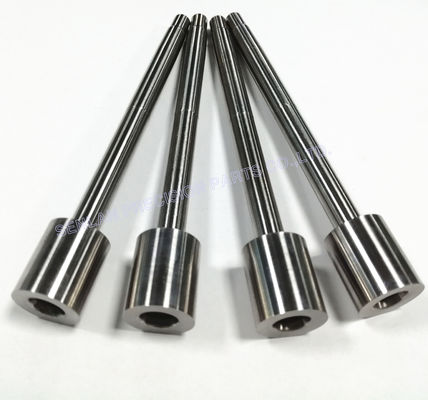

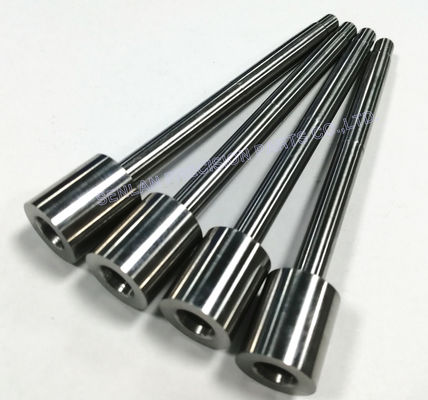

Our 1.2343 Die Casting Mold Parts Core Pins are precision-engineered for die casting applications, designed to withstand the high-stress environment of molding processes. These core pins are made from high-quality 1.2343 tool steel, offering 44-48 HRC hardness, ideal for creating durable, high-performance molded components in industries like packaging, medical devices, and automotive.

Core Features & Advantages

• Material Quality: Made from 1.2343 tool steel, ensuring superior toughness, wear resistance, and high thermal conductivity for demanding die casting environments.

• Hardness Range: The core pins are heat-treated to achieve 44-48 HRC, striking the perfect balance between hardness and toughness for extended tool life.

• Precision Engineering: Manufactured with tight tolerances to ensure a perfect fit in your molds, minimizing defects and improving the efficiency of your molding processes.

• Customizable Design: We provide tailored solutions for your specific mold and casting needs, with options for custom sizes and features.

• Long-Lasting Durability: Designed for high-volume production, our core pins are engineered for maximum durability and performance, even under the most challenging conditions.

Applications & Industry Use

Our 1.2343 Die Casting Mold Parts Core Pins are widely used in the following industries:

• Packaging: Ideal for molding bottle caps, closures, and other packaging components requiring precision and durability.

• Medical Devices: Essential for medical consumables, including syringe components, vials, and medical housings, ensuring the highest quality standards are met.

• Automotive: Used in the production of automotive parts that require both strength and resistance to high temperatures.

• Consumer Goods: Employed in the manufacture of consumer electronics and other products that require fine precision and robust materials.

Mold Structure & Design Explanation

• Core Pin Design: Our core pins feature an optimized structure to handle the high pressures and temperatures typical of die casting applications. The precision design ensures a tight fit with the mold components, resulting in reduced wear and tear.

• Surface Treatments: We offer heat treatments to ensure the parts achieve the desired hardness and surface integrity for high-performance applications.

• Customization: Whether it’s length, diameter, or specific features, we work with you to design the ideal core pin configuration for your molds.

Manufacturing & CNC Machining Capabilities

• Precision CNC Machining: Our CNC turning and milling services ensure high-precision parts, made to your exact specifications. We work with advanced machining equipment to provide excellent tolerances.

• Heat Treatment & Hardening: Each core pin undergoes a heat treatment process to achieve the specified hardness range (44-48 HRC), optimizing the tool for long-term use in die casting applications.

• Prototyping & Testing: Before full production, we offer prototyping services to ensure the design and fit meet your exact requirements. Performance testing is done to guarantee the quality of the final product.

Custom Development / OEM Collaboration Process

1. Consultation & Design: We start by discussing your requirements and designing the core pins to your exact needs, including material selection and part features.

2. Prototyping & Approval: A prototype is created for your approval, allowing you to assess fitment, functionality, and performance before production.

3. Manufacturing: Once approved, we move to full-scale manufacturing using CNC machining and heat treatment for precision and durability.

4. Inspection & Testing: Rigorous quality control ensures that every part meets the highest standards of dimensional accuracy, hardness, and performance.

5. Delivery: After testing and final approval, we ensure the parts are properly packaged and delivered according to your schedule.

Quality Control & Export Experience

• ISO Certified: Our processes are ISO 9001 certified, ensuring the highest standards of quality and consistency in every part.

• Global Delivery: With extensive export experience, we offer reliable international shipping and customs handling for seamless global delivery.

• Comprehensive Testing: Every part is subjected to rigorous quality checks, including hardness testing, dimensional inspection, and performance evaluation to guarantee that they meet your specifications.

• Customer Service: Our dedicated team ensures your satisfaction with on-time delivery, continuous support, and clear communication throughout the process.

Related Products (Internal Links)

• Custom Mold Core Pins

• High-Precision CNC Machining Parts

• Die Casting Mold Components

• Medical Molding Parts

Frequently Asked Questions (FAQ)

Q1: Can you customize the core pins to my specific mold requirements?
Yes, we offer full customization for core pins, including adjustments to length, diameter, and other specifications to suit your molds.

Q2: What material is used for the core pins?
Our core pins are made from 1.2343 tool steel, known for its high resistance to wear and tear, thermal stability, and excellent mechanical properties for die casting applications.

Q3: How do you ensure the quality of your core pins?
All core pins undergo rigorous quality checks during and after manufacturing, including hardness testing (44-48 HRC) and dimensional accuracy verification.

Q4: What is the lead time for custom die casting core pins?
Lead time typically ranges from 2 to 6 weeks, depending on the complexity of the design and order volume. Prototypes can be delivered faster for testing and approval.

Get a Quote

Ready to get started with your custom core pins? Contact us today for a personalized quote and to discuss your requirements. Our team is here to support you in developing the perfect solution for your die casting molds.
