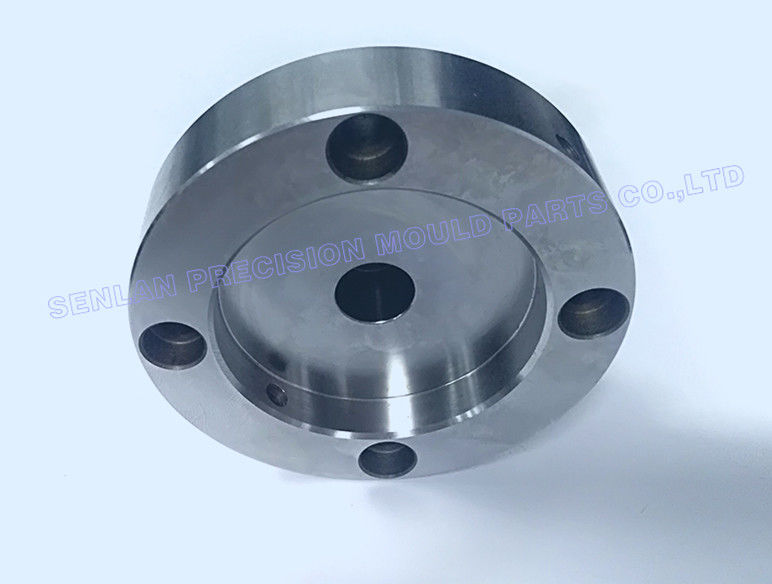

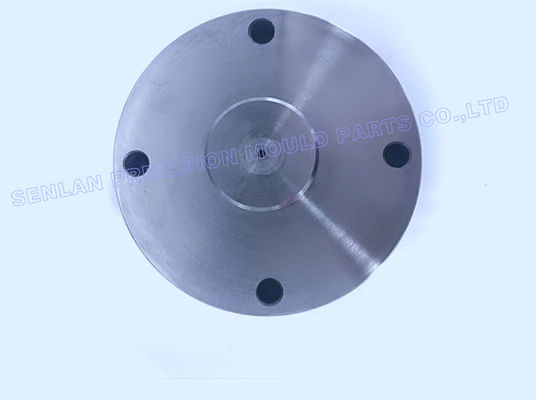

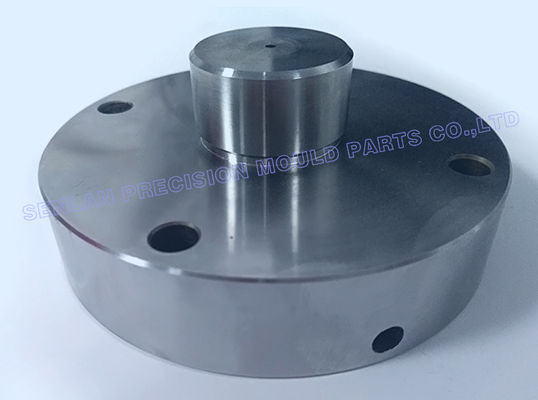

High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts

High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts
High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts

Large Image :  High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-007
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

High Heat Resistance SKD61 Sprue Bushing HASCO Standard Injection Mould Parts

Description
Material: SKD61 Hardness: HRC46-50
Application: Plastic Injection Mould Tolerance: +/-0.01mm
Merits: Long-life Heat Treatment: Vacuumed
Highlight:

sprue bushing injection molding

,

mold bushings

High Heat Resistance Sprue Bushing HASCO Standard Injection Mould Parts
Sprue bushings are flow path components that allow molten plastic material to be injected from the nozzle of the injection molding machine into the interior of the mold. The bolt-type nozzle is secured by two bolts to prevent dislodgement due to injection pressure.
Common sprue bushing models include A type, B type, C type, D type, and E type, with A, B, and C being the most frequently used. Manufactured from SKD61 hot work die steel, these nozzles offer excellent heat-resistant and wear-resistant properties. The feed port is designed with an R arc angle to prevent plastic material leakage. Domestic plastic mold parts manufacturers currently achieve precision and durability at internationally leading levels.
Company Capabilities
With extensive experience and established credibility, we operate as a customer-focused industry. Our client-centric approach enables us to offer customized products and ensure timely deliveries. We maintain a comprehensive distribution network that addresses client needs and requirements. Committed to quality, we source materials from reliable vendors and conduct rigorous checks at every production stage to deliver exceptional products.
Product Specifications
Material Properties
Material Inner Hardness Surface Hardness Heat Treatment
S45C SR HRC50~55 Partial -
SKD11 HRC58~62 HRC58~62 Vacuumed
SKD61 HRC34~38 HV900~1100 Nitrided
- HRC50~54 HRC50~54 Vacuumed
Technical Details
  • Finish: Plain
  • Polishness: Ra0.6
  • Tolerance: ±0.002mm, or according to customer requirements
  • Drawing Format: PDF/DWG/DXF/IGS/STEP, etc.
  • Certificate: ISO9001-2008
Shipping & Packaging
Available shipping methods: DHL, FedEx, UPS, TNT, or by Sea. Inner packaging includes recycled plastic boxes with anti-corrosive oil, outer packaging with sponge and PE bags, or customized according to customer requirements.
Quality Assurance
Inspection equipment includes: CMM, Altimeter, Calipers, Micrometer, 2.5D, Projector, Hardness Tester, and more.
Application Fields
  • Automation equipment parts
  • Cosmetic packaging
  • Medical equipment
  • Daily necessities packaging
Team Philosophy
Leadership is maintained through teamwork. Team spirit represents our company's core competitiveness. Only through strong teamwork can we lead the way and progress further.
Product Range
SENLAN manufactures a comprehensive line of standard and customized components including ejector pins, punches, insert pins, cavity pins, core pins, mold cores, and other mold accessories and die parts.
Frequently Asked Questions
Q: How can I get the quotation?
A: Please provide us with the following information for a quote: drawing, material, weight, quantity, and specific requirements.
Q: If we don't have a drawing, can you make one for me?
A: Yes, we can create drawings from your samples and duplicate the samples accordingly.
Q: When can I get the sample?
A: Typically 5-10 days. The exact timeframe depends on your specific product requirements.
Q: What is your main order time?
A: Standard order time is 7-20 days after payment. The precise duration depends on your product specifications.
