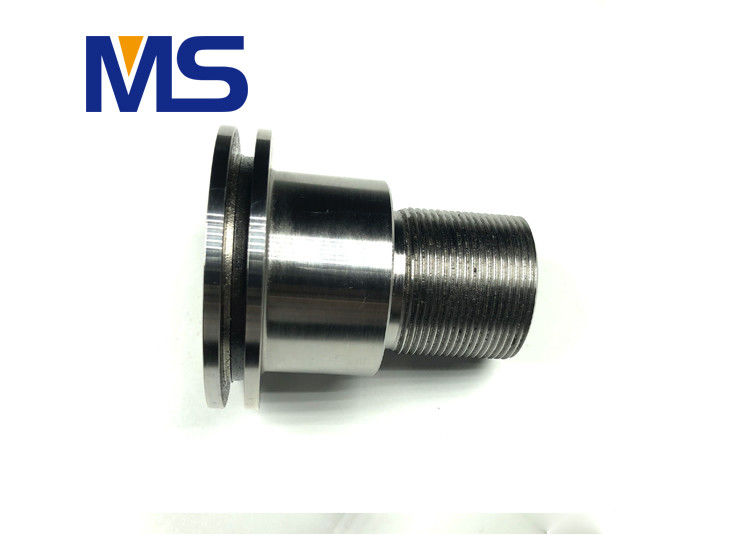

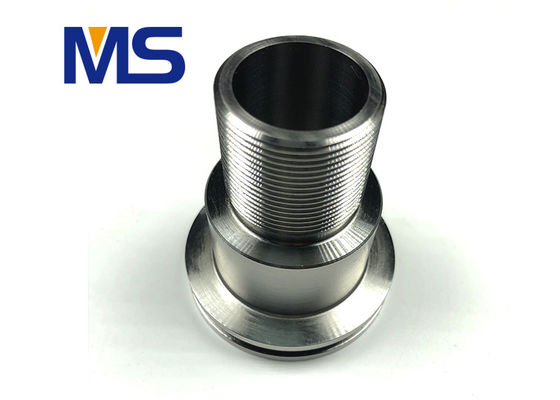

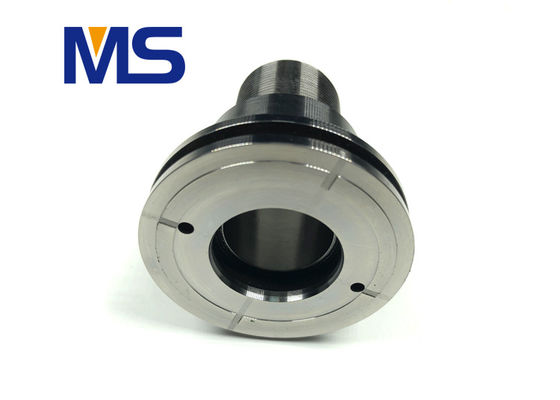

OEM Thread SUS420 Precision CNC Machined Parts Punch Forming Processing
Thread CNC Turning Parts Precision CNC Machined Parts Customized Parts
Material Specifications
Materials
SKD61/DAC/8407/S136/SUS420/STAVAX and more
Hardness
48-52 HRC or depends on processing materials
Technical Specifications
- Size tolerance within ±0.002mm
- Axiality within 0.005mm
- Surface Roughness within Ra0.6
- Verticality within 0.005mm
- The multi-cavity is well-matched
- Further dimensions, lengths and materials available on request
Company Profile
- Founded in March 2010
- Specialized in manufacturing precision mould parts and CNC machining parts
- Temperature-controlled workshop with around 40 skillful operators
- Design software: AutoCAD2008/2014/2017, UG NX8.0, Solidwork2012, Pro Engineer Wildfire4.0
- Working hours: 6 days per week including day and night shift with 20 hours in total
- Minimum fabrication precision: 0.002mm
- Best fabrication surface finish: Ra0.4
- Full lead time (General): 7-15 days
Business Range
Manufacturing & Inspection Capacity
Steel, stainless and copper materials for precision mould parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts
Services
CNC machining, CNC Milling, Sodick EDM, Sodick Wire-cut, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing
Industries Served
Medical, Packaging, Aerospace, Electronics
Equipment List
| Equipment Type |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| CHMER |
G435 |
- |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
Sodick-AM30LS |
0.003mm |
2 |
Japan |
| MAKIMO |
EDGE2 |
- |
0.002mm |
1 |
Japan |
| Desktop lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| Desktop lathe |
JINGCHENG |
YB-25 |
0.05mm |
2 |
China |
| OD grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centeless grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| Surface Grinder |
SHUGUANG |
618 |
0.001mm |
2 |
China |
| EDM drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Quality Advantages
Good Quality
Comprehensive quality control including machining, surface treatment, specification, and packing
Technical Support
Professional suggestions on materials, surface treatments, and design improvements during machining
Cost Efficiency
Optimized processes for machining hardened metals to reduce tool damage and overall costs
After-Sales Service
Comprehensive solutions and consideration of customer feedback if requirements are not met
Payment & Shipping
Payment Terms
T/T, Paypal, Western Union - 50% deposit, balance before shipment available
Shipping Methods
DHL, TNT, Fedex available
Quality Assurance
| Testing Equipment |
Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester |
| Quality Control Process |
- Technicians self-check in production
- Engineer spot check in production
- QC inspects after mass production finished
- International sales technical spot check before shipping
|
| Main Markets |
North America, South America, Eastern Europe, West Europe, North Europe, South Europe, South Asia, Africa |
Packaging & Delivery
| Package |
Coated with anticorrosive oil, packed in carton box with bubble wrap, together with QA report |
| Express Options |
DHL, FedEx, UPS, TNT, by Sea |
If you are interested, please do not hesitate to contact us! Thank you!
