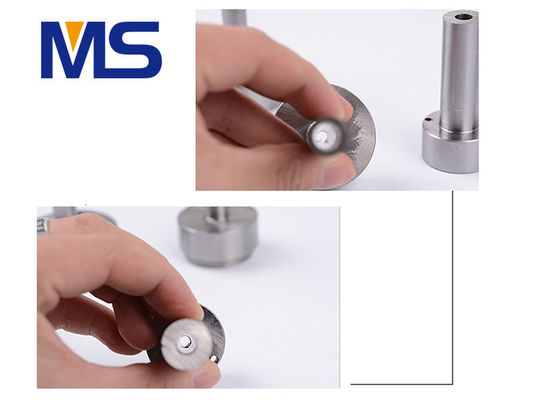

DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould

DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould
DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould

Large Image :  DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould

Description
Material: Skd61 Hardness: HRC48-52
Accuracy: +/-0.01mm Standard: HASCO,MISUMI,JIS,DME,DIN
Application: Plastic Injection Mould Heat Treatment: Vacuumed
Highlight:

dme sprue bushing

,

mold bushings

DIN 16752 Sprue Bushing / Gate Bush Inner Hole Good Polishing Mould Nozzle

Gate Bush DIN 16752 Sprue Bushing with inner hole good polishing mould nozzle.

Product Features
  • High-quality sprue bushing
  • Available materials: S45C, SKD11, SKD61
  • Customization available
Material Specifications
Material Inner Hardness Surface Hardness Heat Treatment
S45C HRC50~55 HRC50~55 Partial
SKD11 HRC58~62 HRC58~62 Vacuumed
SKD61 HRC34~38 HV900~1100 Nitrided
SKD61 HRC50~54 HRC50~54 Vacuumed
DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould 0
Main Products

SENLAN manufactures a full line of standard and customized ejector pins, punches, insert pins, cavity pins, core pins, mold core, and other mould accessories and die parts.

Why Choose Us
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8 years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment and experienced operators
  • Extensive experience with OEM and ODM for customers
  • Competitive pricing, high quality, and on-time delivery
DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould 1 DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould 2 DIN 16752 Standard SKD61 Material Sprue Bushing with HRC48-52 Hardness for Plastic Injection Mould 3
Equipment List
Equipment Type Brand Model Precision Quantity Origin
CNCTAKISAWANEX-1080.002mm4Japan
WEDMSODICKAQ400LS0.003mm2Japan
WEDMCHMERG4350.005mm1Taiwan
EDMCREATORCJ-2350.005mm4Taiwan
Mirror EDMSODICKSodick-AM30LS0.003mm2Japan
Mirror EDMMAKIMOEDGE20.002mm1Japan
Desktop latheJINGCHENGYB-150.05mm4China
Desktop latheJINGCHENGYB-250.05mm2China
OD grinderHOTMANFX-030.002mm5China
ID grinderHOTMANFX-050.002mm3China
Centeless grinderHOTMANFX-12S0.001mm2China
Surface GrinderSHUGUANG6140.001mm4China
Surface GrinderSHUGUANG6180.001mm2China
EDM drillingZENBANGZB-030.01mm1Taiwan
MillerTOPINRAVA0.01mm2Taiwan
Payment Terms

Payment methods: T/T, PayPal, Western Union (50% deposit, balance before shipment available)

Shipping methods: DHL, TNT, FedEx available

Quality Control & Markets
Category Details
Testing Equipment Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester
Quality Control 1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production
4) International sales technical spot check before shipping
Main Markets North America, South America, Eastern Europe, West Europe, Northern Europe, South Asia, Africa
Packing & Delivery
Category Details
Package Coated with anticorrosive oil, packed in carton box with bubble wrap, together with QA report
Express DHL, FedEx, UPS, TNT, by Sea

Contact Us Today!

If you are interested, please do not hesitate to contact us! Thank you!
