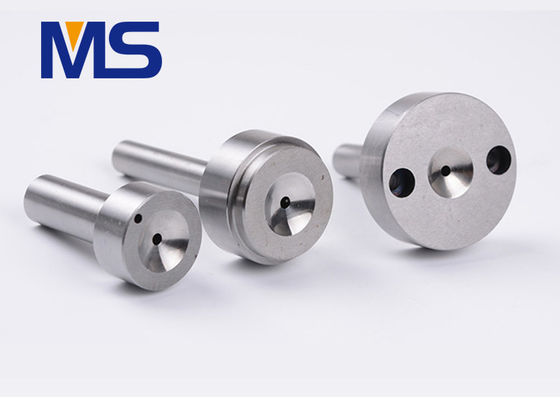

DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould

DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould
DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould
DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould

Large Image :  DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould

Description
Material: Skd61 Hardness: HRC48-52
Accuracy: +/-0.01mm Standard: HASCO,MISUMI,JIS,DME,DIN
Application: Plastic Injection Mould Heat Treatment: Vacuumed
Highlight:

sprue bushing injection molding

,

mold bushings

DME Standard Type B Sprue Bush Good Polishing Skd61 Material For Plastic Mould
Product Overview

DME Standard Type B Sprue Bushing with excellent polishing quality, designed specifically for plastic mould applications.

Key Features
  • High-quality sprue bushing construction
  • Available in S45C, SKD11, and SKD61 materials
  • Customization options available
Material Specifications
Material Inner Hardness Surface Hardness Heat Treatment
S45C HRC50~55 HRC50~55 Partial
SKD11 HRC58~62 HRC58~62 Vacuumed
SKD61 HRC34~38 HV900~1100 Nitrided
SKD61 HRC50~54 HRC50~54 Vacuumed
DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould 0
Product Range

SENLAN manufactures a comprehensive line of standard and customized components including ejector pins, punches, insert pins, cavity pins, core pins, mold cores, and other mould accessories and die parts.

Why Choose SENLAN
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8 years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment with experienced operators
  • Extensive OEM and ODM experience
  • Competitive pricing, high quality standards, and reliable on-time delivery
DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould 1 DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould 2 DME Standard Type B Sprue Bushing with SKD61 Material and Good Polishing for Plastic Mould 3
Production Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
Desktop lathe JINGCHENG YB-25 0.05mm 2 China
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3 China
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Payment & Shipping

Payment Terms: T/T, PayPal, Western Union - 50% deposit, balance before shipment

Shipping Methods: DHL, TNT, FedEx available

Quality Assurance
Testing Equipment Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester
Quality Control Process
  • Technicians self-check during production
  • Engineer spot checks during production
  • QC inspection after mass production completion
  • International sales technical spot check before shipping
Main Markets North America, South America, Eastern Europe, Western Europe, Northern Europe, South Asia, Africa
Packaging & Delivery
Packaging Coated with anti-corrosive oil, packed in carton box with bubble wrap, includes QA report
Delivery Options DHL, FedEx, UPS, TNT, Sea freight

Interested in our products? Please don't hesitate to contact us for more information!
