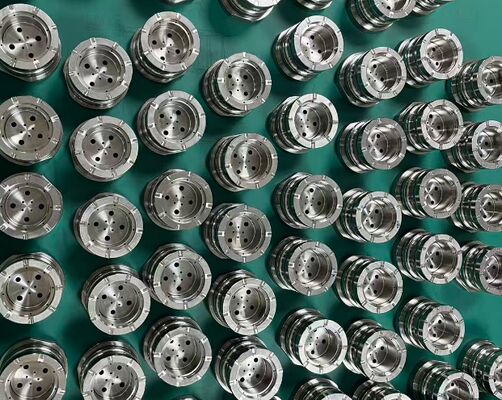

Multi-cavity mold inserts are precision components used in packaging injection molds to enable high-output, stable, and repeatable mass production.
They play a critical role in maintaining cavity-to-cavity consistency, part quality, and long-term mold performance.

We manufacture custom multi-cavity mold inserts strictly according to customer-supplied drawings and specifications.
All inserts are produced on a Built-to-Print / OEM basis and are widely used in injection molds for packaging applications, including caps, closures, and thin-wall plastic parts.

The focus of these inserts is not only dimensional accuracy, but also batch consistency, wear behavior, and reliability in high-cycle production environments.

Why Multi-Cavity Insert Quality Matters

In packaging injection molding, production efficiency depends heavily on mold stability.

When multi-cavity inserts are not manufactured or matched correctly, common issues include:

• Part weight and dimension variation between cavities

• Uneven filling or cooling behavior

• Increased scrap rate in high-speed production

• Frequent mold adjustments and unplanned downtime

High-quality multi-cavity inserts help ensure that each cavity behaves the same way, allowing molds to run longer with fewer interventions and more predictable output.

Typical Applications

Our multi-cavity mold inserts are commonly used in:

• Packaging injection molds
  Caps, closures, lids, and thin-wall containers

• High-output injection molding systems
  Where cycle time and cavity balance are critical

• Modular mold designs
  Requiring replaceable inserts for maintenance or product changes

• Long-life production molds
  Designed for continuous, high-cycle operation

Key Manufacturing Focus

Multi-cavity inserts require more than individual part accuracy.
The real challenge lies in consistency across all cavities.

Cavity-to-Cavity Consistency

• Tight control of critical dimensions across multiple inserts

• Consistent datum definition to ensure repeatable installation

• Controlled matching of inserts within the same mold set

This reduces variation between cavities and improves overall part uniformity.

Machining Stability and Surface Quality

• Precision machining to maintain stable geometry

• Surface finish executed according to functional requirements

• Controlled edge treatment to prevent wear and damage during operation

Surface and edge quality directly affect mold wear and part appearance over long production runs.

Dimensional Stability for High-Cycle Use

• Machining sequences optimized to minimize internal stress

• Heat treatment applied when required, followed by finish machining

• Emphasis on dimensional stability during long-term mold operation

The goal is to maintain performance after thousands or millions of molding cycles, not just at initial assembly.

Materials & Manufacturing Process

Materials are selected based on mold design and production requirements, including:

• Tool steels commonly used for packaging injection molds

• Customer-specified materials according to drawing requirements

Typical manufacturing process:
CNC machining → Heat treatment (if required) → Finish machining / grinding → Inspection

All processes follow customer drawings and technical specifications.

Manufacturing Equipment & Capability

To ensure machining accuracy and process stability, we use internationally recognized machining equipment, including:

• High-precision CNC machining centers from MAKINO

• CNC turning and milling systems from HARDINGE

These machines support tight tolerances, stable repeatability, and consistent quality for multi-cavity mold components.

Quality Control & Inspection

Quality control focuses on functional consistency, not just individual dimensions.

• Inspection of critical dimensions and fitting surfaces

• Verification of cavity-related features

• Process consistency checks during production

• Inspection records available upon request

Each insert is verified before delivery to ensure compatibility within the mold assembly.

Custom Manufacturing Model (OEM / Built-to-Print)

All multi-cavity mold inserts are manufactured strictly according to customer drawings.

• 2D drawings and 3D models supported

• Prototype, small batch, and serial production available

• Engineering review of cavity layout and critical features

• Support for replacement inserts and long-term spare supply

Our role is to provide stable, repeatable manufacturing, aligned with the requirements of high-output injection molding.

Related Mold Components

• Multi-cavity mold inserts

• Core and cavity inserts

• Mold wear parts and replaceable inserts

• Injection mold spare components

Technical FAQ

Q1: Are these inserts fully customized?
Yes. All multi-cavity mold inserts are manufactured strictly according to customer drawings and specifications.

Q2: Are these inserts suitable for high-cycle packaging molds?
Yes. They are designed and manufactured for long-term, high-output injection molding applications.

Q3: Can inserts be supplied as replacement parts for existing molds?
Yes. Replacement and spare inserts can be manufactured based on drawings or reference samples.

Q4: Do you support tight cavity-to-cavity tolerance requirements?
Yes. Consistency between cavities is a key manufacturing focus for this product type.

Request a Quotation

To receive a quotation, please provide:

• 2D drawings and/or 3D models

• Material and heat treatment requirements

• Quantity and cavity count

• Target delivery schedule

A technical review and quotation will be prepared based on your mold design and production requirements.
