Precision Die Casting Punch Pins | Custom Cooling Hole (SR-Type) Mold Parts

Product Overview

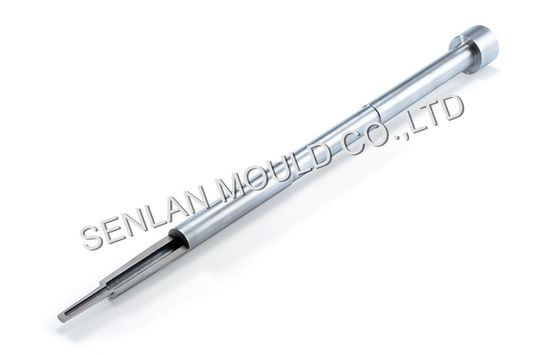

Portable Die Casting Mold Parts – Precision Punch Pins with SR-Cooling Hole are high-accuracy mould components designed for efficient heat dissipation and stable forming performance in injection mould systems. Manufactured by Senlan Precision, these punch pins are produced strictly on a Built-to-Print (OEM) basis, integrating internal SR-type cooling holes to support thermal control and dimensional stability during continuous moulding operations.

Key Features & Advantages

• Precision punch pins with integrated SR cooling hole design

• Improved heat dissipation to reduce thermal deformation

• Stable dimensional accuracy under repeated mould cycles

• Suitable for portable and compact mould structures

• Custom materials, hardness, and surface finish per drawing

• Designed for long service life in high-cycle mould applications

Applications / Industry Use

• Injection mould punch and forming systems

• Packaging moulds for bottle and cap components

• Multi-cavity moulds requiring thermal balance

• Medical consumable mould tooling

• Precision mould assemblies requiring controlled cooling

Mould Structure & Design Description

Punch pins with internal SR cooling holes are engineered to manage localized heat concentration during moulding. By integrating internal cooling channels, thermal gradients around the pin tip are reduced, helping maintain consistent forming dimensions and surface quality.

Key design considerations include:

• Accurate positioning of cooling holes relative to the working tip

• Controlled wall thickness to maintain mechanical strength

• Compatibility with mould cooling circuits

• Optimized geometry for stable ejection and forming

All punch pins are manufactured strictly according to customer-supplied drawings and technical specifications.

Manufacturing Capability & CNC Machining

Production of precision punch pins follows a controlled machining workflow:

• CNC turning and milling for structural accuracy

• Deep hole drilling or EDM for SR cooling hole formation

• Precision grinding to meet tight tolerance requirements

• Optional heat treatment and surface finishing

• Final dimensional verification before shipment

Manufacturing is supported by advanced equipment from MAKINO and HARDINGE, ensuring repeatable quality suitable for export-grade mould components.

Custom Development / OEM Cooperation Process

1. Receipt of drawings and technical requirements

2. Engineering review and manufacturability confirmation

3. Material selection and process planning

4. CNC machining and cooling hole fabrication

5. In-process and final inspection

6. Protective packaging and export delivery

All components are supplied as custom OEM / Built-to-Print mould parts.

Quality Control & Export Experience

• ISO-compliant quality management system

• Incoming material inspection

• In-process dimensional and positional checks

• Final inspection reports available upon request

• Extensive experience supplying precision mould components for overseas customers

Related Products

• Precision core pins and sleeves

• Mold ejector pins and punch pins

• Injection mould inserts and cavities

• Multi-cavity mould spare parts

• Custom CNC-machined mould components

FAQ – Technical & Purchasing

Q1: Are these punch pins standard catalogue items?
No. All punch pins are custom-manufactured according to customer drawings.

Q2: Can the cooling hole size and position be customized?
Yes. SR cooling hole geometry is produced strictly per design requirements.

Q3: What tolerance levels can be achieved?
Tolerance capability depends on design and material; requirements are reviewed during engineering evaluation.

Q4: Are these suitable for multi-cavity moulds?
Yes. They are commonly used in multi-cavity mould systems requiring thermal stability.

Request a Quote

For pricing, lead time, or technical confirmation of Precision Punch Pins with SR-Cooling Hole, please submit your drawings or specifications.
Senlan Precision specializes in OEM manufacturing of high-accuracy injection mould components for packaging, cosmetic, and medical mould applications.
