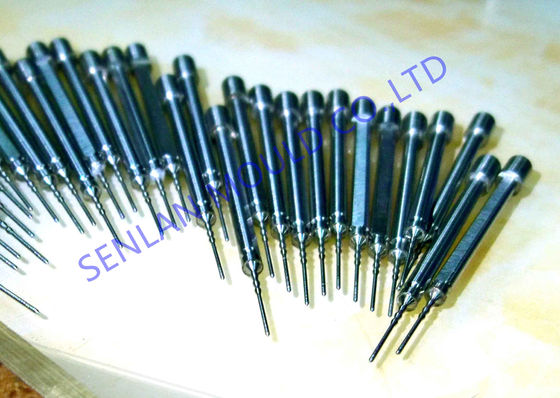

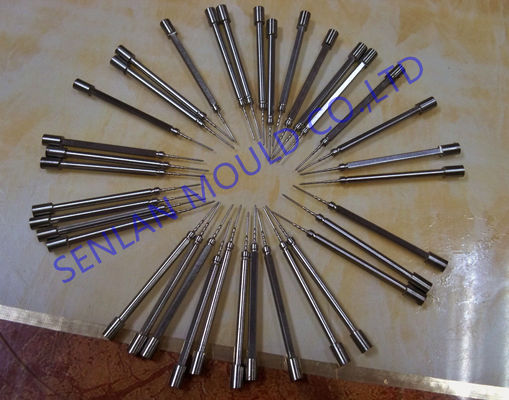

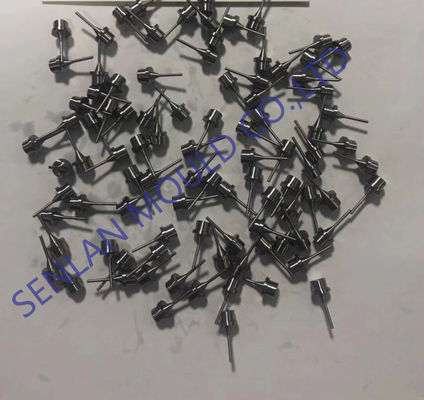

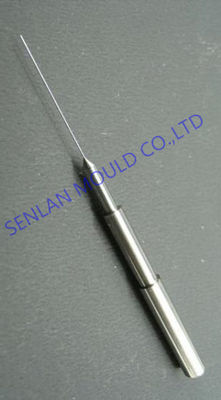

48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components

48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components
48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components 48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components 48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components 48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components

Large Image :  48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components

Description
Material :: SKD61/DAC/8407/S136/SUS420/STAVAX Hardness:: 48-52HRC
Application:: Medical Part Injection Plastic Mould
Highlight:

precision mold parts

,

injection molded parts

,

Small Core Pins Precision Mould Parts

Small Core Pins Precision Mould Parts for Medical Part Injection Plastic Mould
Material Options

SKD61, DAC, 8407, S136, SUS420, STAVAX and more

Hardness Specifications

48-52 HRC or customized based on processing materials

Technical Specifications
  • Size tolerance within ±0.002mm
  • Axiality within 0.005mm
  • Surface roughness within Ra0.6
  • Verticality within 0.005mm
  • Multi-cavity well-matched
  • Further dimensions, lengths and materials available on request
Company Profile
  • Founded in March 2010
  • Specialized in precision mould parts and CNC machining parts
  • Temperature-controlled workshop with approximately 40 skilled operators
  • Design software: AutoCAD 2008/2014/2017, UG NX8.0, Solidworks 2012, Pro Engineer Wildfire 4.0
  • Working hours: 6 days per week including day and night shifts (20 hours total)
  • Minimum fabrication precision: 0.002mm
  • Best fabrication surface finish: Ra0.4
  • Full lead time (general): 7-15 days
Business Range
Manufacturing & Inspection Capacity

Steel, stainless and copper materials for precision mould parts, cavity pins, core pins, punches, ejector sleeves, CNC machining parts

Services

CNC machining, CNC milling, Sodick EDM, Sodick wire-cut, OD grinding, ID grinding, surface grinding, thread grinding, polishing

Industries Served

Medical, Packaging, Aerospace, Electronics

Workshop
48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components 0
Equipment
48-52HRC Hardness Core Pins with 0.002mm Tolerance for Medical Grade Injection Mold Components 1
Quality Assurance
Testing Equipment Digital Height Gauge, caliper, Coordinate Measuring Machine, projection machine, roughness tester, hardness tester
Quality Control Process
  • Technicians self-check during production
  • Engineer spot checks during production
  • QC inspection after mass production completion
  • International sales technical spot check before shipping
Main Markets North America, South America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, South Asia, Africa
Packaging & Delivery
Package Coated with anti-corrosive oil, packed in carton box with bubble wrap, includes QA report
Express Options DHL, FedEx, UPS, TNT, Sea freight
If you are interested, please do not hesitate to contact us! Thank you!
