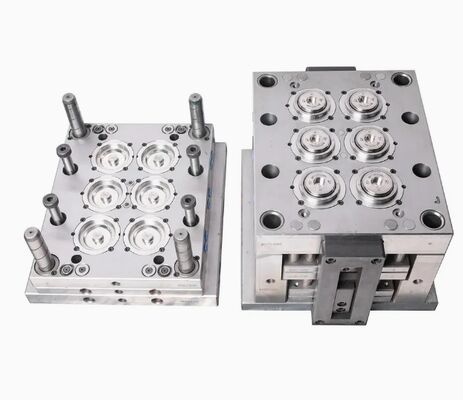

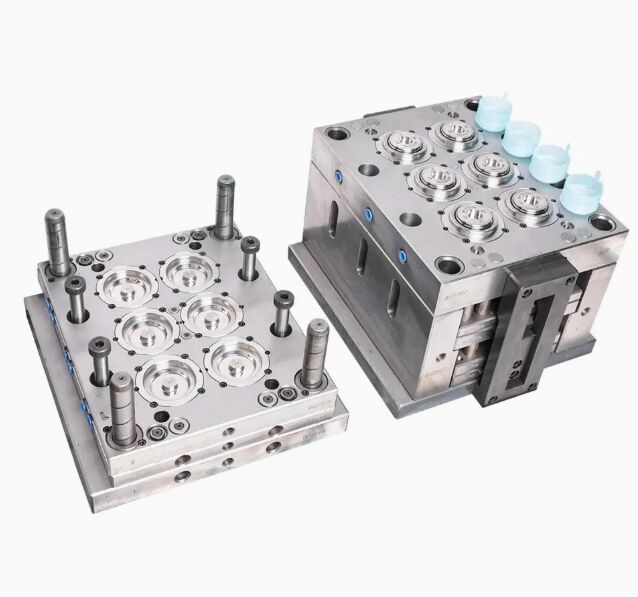

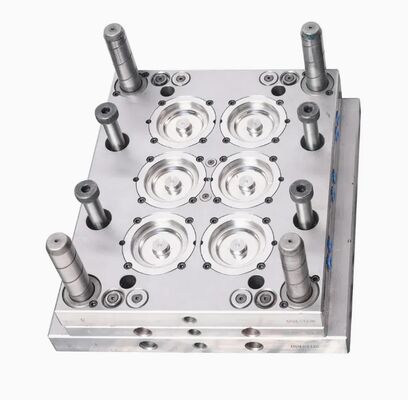

Multi-Cavity 5 Gallon Water Bottle Cap Mold | High-Speed Injection Tooling
The multi-cavity 5 gallon water bottle cap injection mold is engineered for high-speed, stable production of large-format water bottle closures. Designed to withstand high injection pressure and long production cycles, this tooling emphasizes cavity balance, structural rigidity, and efficient cooling. All molds are custom designed and manufactured strictly according to customer drawings, neck standards, and production requirements.
Key Features & Technical Advantages
- Multi-cavity configuration optimized for 5 gallon cap production
- High-rigidity mold structure for large-diameter closures
- Balanced cavity layout to ensure consistent part weight
- High-speed injection capability with stable cycle time
- Optimized cooling channels for uniform temperature control
- Replaceable core and cavity inserts for extended mold life
- Fully customized / OEM / Built-to-Print mold manufacturing
Applications & Industries
This injection mold is widely used in:
- 5 gallon water bottle cap manufacturing
- Large-volume drinking water packaging systems
- Industrial and commercial water container closure production
- High-output injection molding lines for large closures
It is suitable for applications where structural strength, dimensional consistency, and long-term production stability are critical.
Mold Structure & Design Description
The 5 gallon water bottle cap mold is typically designed with a reinforced and modular structure to handle larger part size and injection load.
Key design considerations include:
- Precision-aligned core and cavity inserts
- Balanced runner or hot runner system (as specified)
- Reinforced mold base to maintain alignment under pressure
- Uniform cooling layout to reduce cycle time and warpage
All mold structures are engineered according to customer specifications and validated during technical review.
Manufacturing Capability & CNC Machining
Senlan Precision manufactures large-format, multi-cavity cap molds using advanced CNC machining and precision assembly processes.
Our facilities are equipped with high-precision machining centers from MAKINO (Japan) and HARDINGE (USA), enabling:
- High-accuracy machining of large mold cores and cavities
- Stable tolerance control for multi-cavity mold systems
- Consistent surface finish for functional mold components
- Reliable repeatability for heavy-duty injection tooling
Machining strategies are optimized based on cavity count, cap geometry, and required production speed.
Custom Development & OEM Cooperation
We provide full custom mold development and OEM cooperation, including:
- Mold design based on 5 gallon cap drawings and neck finish standards
- Custom cavity numbers and layout optimization
- Cooling and runner system engineering
- Mold trial, validation, and serial tooling delivery
- Long-term spare parts supply and technical support
All projects are executed strictly based on confirmed technical documentation.
Quality Control & Export Experience
With more than 20 years of experience in exporting injection molds and precision mold components, Senlan Precision applies a structured quality control system:
- Incoming material inspection and traceability
- Dimensional inspection during machining and assembly
- Mold trial verification prior to shipment
- Complete inspection records and export documentation
We are familiar with international packaging industry requirements and professional engineering communication.
Related Mold Solutions
- Multi-cavity water bottle cap molds
- Large-diameter closure injection molds
- Mold core and cavity inserts for cap tooling
- High-speed mold spare parts and wear components
All related tooling solutions are available on a custom manufacturing basis.
Technical FAQ
Q1: Can the cavity number be customized for 5 gallon caps?
Yes. Cavity count and layout are fully customized based on production capacity and machine specifications.
Q2: Is the mold suitable for high-speed injection molding machines?
Yes. The mold is designed for stable operation under high-speed and high-pressure injection conditions.
Q3: Can replacement core and cavity inserts be supplied?
Yes. Replaceable inserts and spare parts can be manufactured for long-term production support.
Q4: Is mold design included in the OEM project scope?
Yes. Mold design, engineering review, and validation are included as part of OEM cooperation.
Request a Quotation
For pricing, lead time, or technical discussion regarding multi-cavity 5 gallon water bottle cap injection molds and high-speed tooling, please provide your cap drawings, neck finish details, and production requirements.
Our engineering team will review your project and provide a professional quotation.
