Special Sizes Available For Plastic Injection Mould Locating Block
Locating blocks, also known as block locking or square locating blocks, provide chain, auxiliary, and fine positioning functions. Installed on the side surface of molds, they offer easy loading and unloading with simple mounting hole machining on templates. Ideal for connectors, electronic components, and other applications requiring precision positioning.
Product Specifications
| Product Name |
Locator Block Sets |
| Material |
SKD11, SK2, YK30, 55# Steel etc |
| Hardness |
HRC58-60 Customized OEM |
| Size |
Special sizes can be customized |
| Shaping Mode |
Plastic Injection Mould |
| MOQ |
1 set |
Important Note
Maintain minimal spacers clearance to avoid clamping collisions. Must be used with precision guide pillars and square-shaped spacers. Keep clearance between punch and block as small as possible during processing and arrangement.
Quality Assurance & Testing
| Testing Equipment |
Digital Height Gauge, Caliper, Coordinate Measuring Machine, Projection Machine, Roughness Tester, Hardness Tester |
| Quality Control Process |
- Technicians self-check during production
- Engineer spot checks during production
- QC inspection after mass production completion
- Technical sales team pre-shipping inspection
|
| Main Markets |
North America, South America, Europe, Asia, Africa |
Ordering Process
- Send us drawings or standard code & size specifications
- Receive quotation within 1 business day
- Agree on pricing and sign PO or Contract
- Make advance payment
- Sample production if required (free samples with freight collect)
Why Choose Our Locating Blocks
Consistent Quality Control
- Experienced staff ensure exact dimensional control during production
- Comprehensive QC inspection guarantees 100% high-quality products
Quick Delivery Time
Standard delivery within 6 days (quantity dependent)
Made-to-Order Service
Custom parts available beyond standard HASCO, MISUMI, DME, MOELLER, DAYTON, FIBRO, MEUSBURGER, DIN, ISO specifications
Excellent Customer Support
Comprehensive pre-sales, in-sales, and after-sales service available
Competitive Pricing
Reasonable calculation-based pricing to support customer competitiveness
Delivery, Payment & Packaging
| Payment Terms |
T/T, PayPal, Western Union (50% deposit, balance before shipment) |
| Shipping Methods |
DHL, TNT, FedEx available |
| Outer Packaging |
Cartons with foam or wooden boxes |
| Inner Packaging |
Sponge with plastic bag protection |
| Delivery Options |
Air or sea freight |
Service Guidelines
Most products are customized according to customer drawings or designs. Please provide your specifications for production feasibility assessment and accurate pricing.

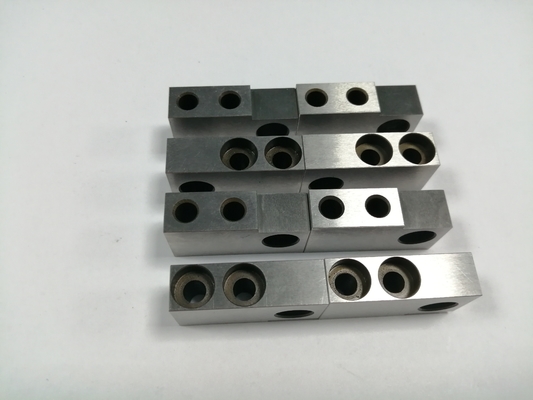

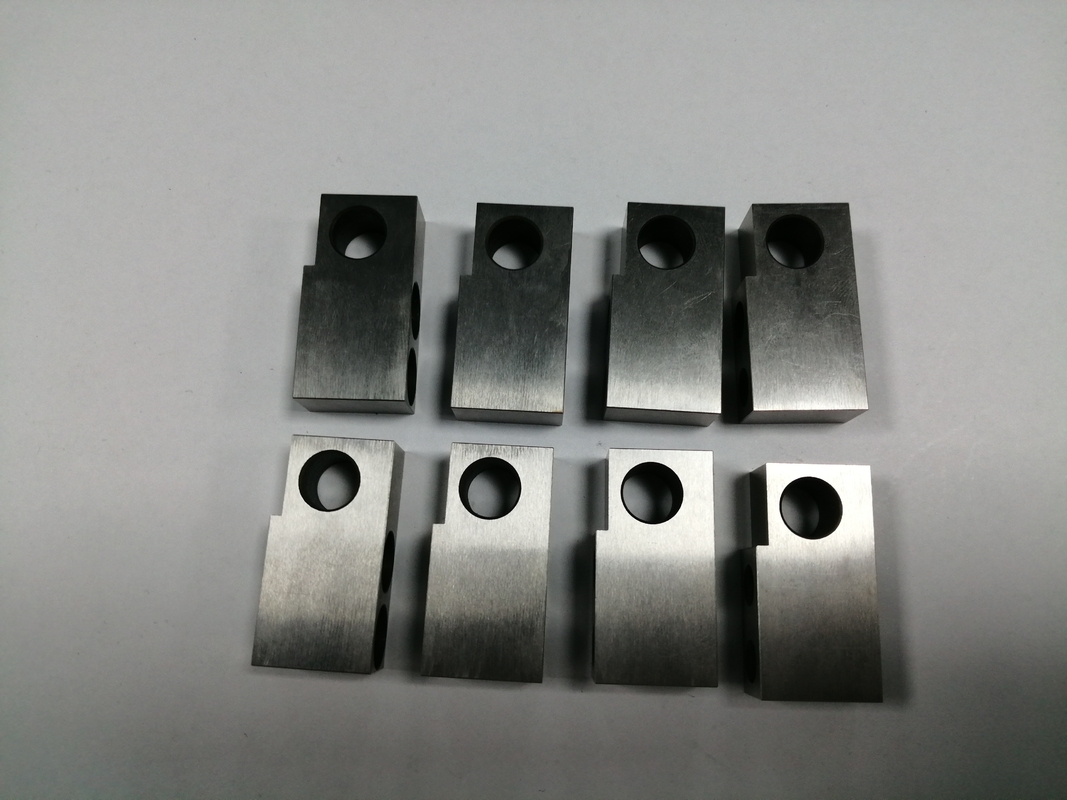

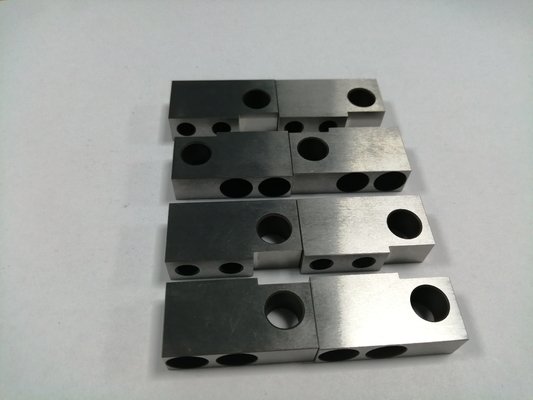

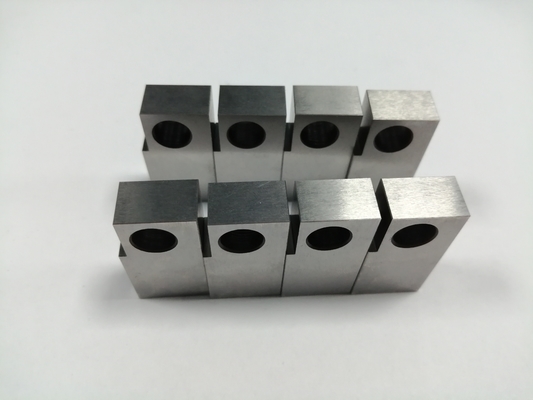

Product Images
Frequently Asked Questions
Q1: Are You Trading Company Or Manufacturer?
A: We are factory.
Q2: Do You Supply Customized Service?
A: Yes, we supply customized service including quantity adjustments and LOGO printing.
Q3: Are The Pictures The Same As The Real Products?
A: Yes, but pictures show representative samples. Contact us for specific size or special design requirements.
Q4: Do You Provide Samples?
A: Yes, we can provide samples (free samples with freight collect).
Q5: How About The Price Range?
A: Pricing depends on raw material costs, exchange rates, and quality specifications. Please send an inquiry for current pricing.
