Product Overview

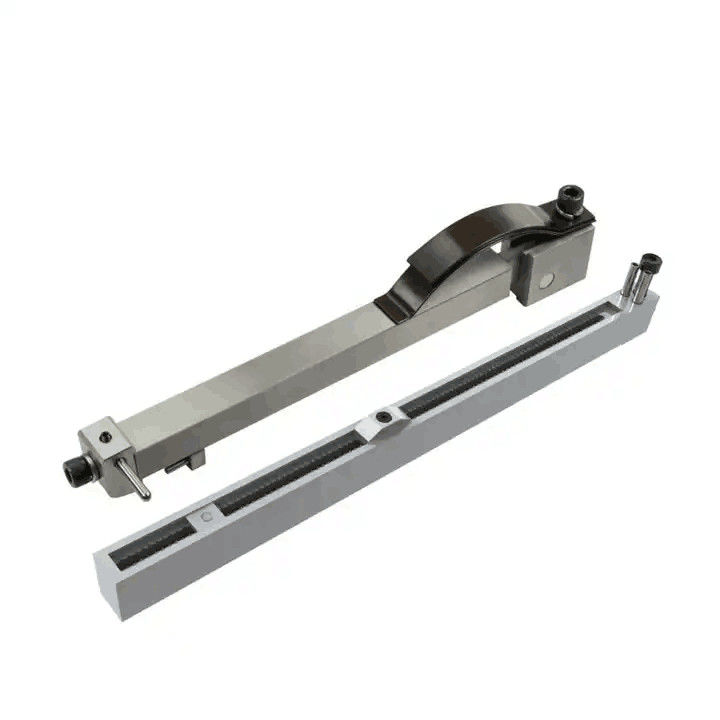

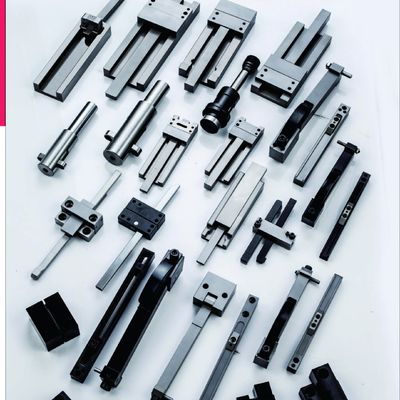

The DIN standard mold locking buckle (KL latch clamp) is a precision mold accessory designed for secure and repeatable locking of plastic injection molds.
Manufactured according to customer drawings or DIN specifications, this latch locking component ensures accurate mold alignment, stable clamping force, and reliable operation in multi-cavity injection molding applications for packaging and medical products.

Key Features & Technical Advantages

• Manufactured to DIN standard or customer drawings (built-to-print)

• Precision latch locking mechanism for plastic injection molds

• Provides stable and repeatable mold locking force

• Improves mold alignment and reduces flash risk

• Suitable for multi-cavity and high-cycle injection molds

• Designed for continuous operation in automated molding systems

Applications & Industries

This mold locking buckle is widely used in plastic injection molds for:

• Bottle caps and closure molds

• Packaging containers and functional plastic components

• Medical disposable and syringe-related molds

• Injection molds requiring precise and repeatable locking

Typical customers include packaging manufacturers, cap and closure producers, medical consumable factories, and OEM injection mold makers.

Mold Structure & Design Description

The KL latch clamp is installed on the mold base to provide controlled locking and secure clamping during mold closing.
It helps maintain precise mold alignment, prevents mold shifting during injection, and improves overall mold stability.
Design considerations include locking force capacity, wear resistance, installation accuracy, and compatibility with multi-cavity mold structures.

Manufacturing & CNC Machining Capability

All mold locking buckles are manufactured in-house using precision CNC machining and controlled finishing processes.

Manufacturing capabilities include:

• Precision CNC milling and turning

• Machining of functional locking surfaces with tight tolerance control

• Precision grinding for consistent clamping accuracy

• Stable and repeatable machining processes for mold accessories

In-house inspection equipment is applied throughout production to ensure dimensional accuracy and functional reliability.

Custom Development & OEM Cooperation Process

We provide full OEM and built-to-print manufacturing support for DIN standard latch clamps:

1. Review of customer drawings or DIN specification requirements

2. Engineering evaluation and manufacturability confirmation

3. Precision CNC machining and component finishing

4. Dimensional and functional inspection

5. Packaging and delivery for overseas mold assembly

All products are non-standard or semi-standard components manufactured according to customer specifications.

Quality Control & Export Experience

Quality control is integrated throughout the manufacturing process, including:

• Incoming raw material inspection

• In-process dimensional and functional checks

• Final inspection prior to shipment

Our mold locking components are widely supplied for export-oriented packaging and medical mold projects, supporting overseas mold assembly and international manufacturing standards.

Related Products (Internal Links)

• Precision Mold Locking Devices

• Injection Mold Latch Locking Units

• Multi-Cavity Injection Mold Components

• CNC Machined Mold Accessories

Frequently Asked Questions (FAQ)

Q1: Can you manufacture KL latch clamps according to DIN standards?
Yes. We manufacture latch clamps according to DIN standards or strictly based on customer drawings.

Q2: Are these mold locking buckles suitable for multi-cavity molds?
Yes. They are designed to provide stable and repeatable locking performance in multi-cavity injection molds.

Q3: What materials and surface treatments are available?
Material selection and surface treatments can be customized based on mold design and operating conditions.

Q4: Do you support overseas mold projects and export delivery?
Yes. Our latch clamps are commonly supplied for export mold projects and overseas injection molding production lines.

Request a Technical Quotation

Please send us your drawings or DIN specification requirements to receive a professional technical evaluation and quotation for custom mold locking buckles and KL latch clamps.
