Product Overview

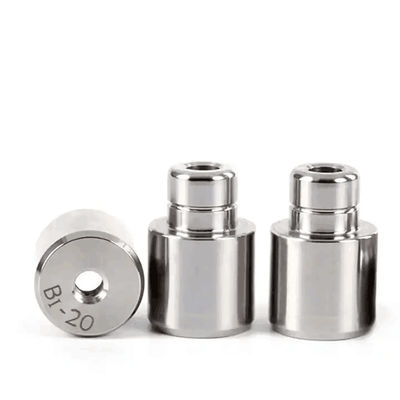

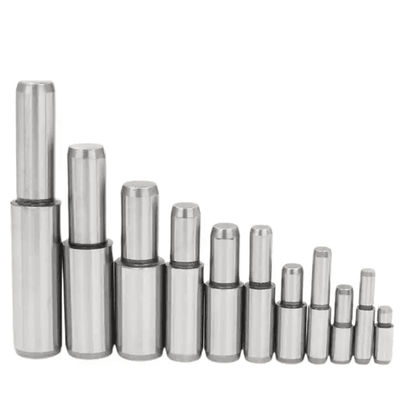

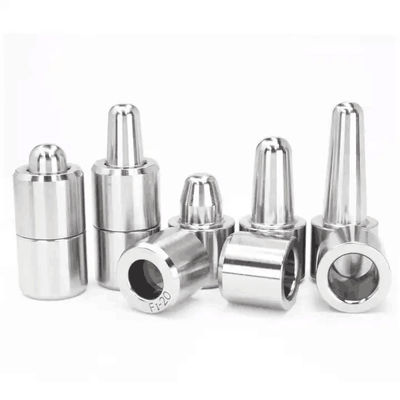

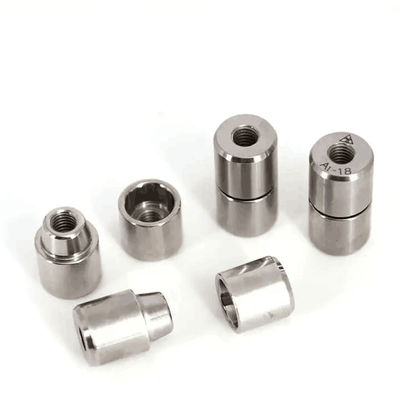

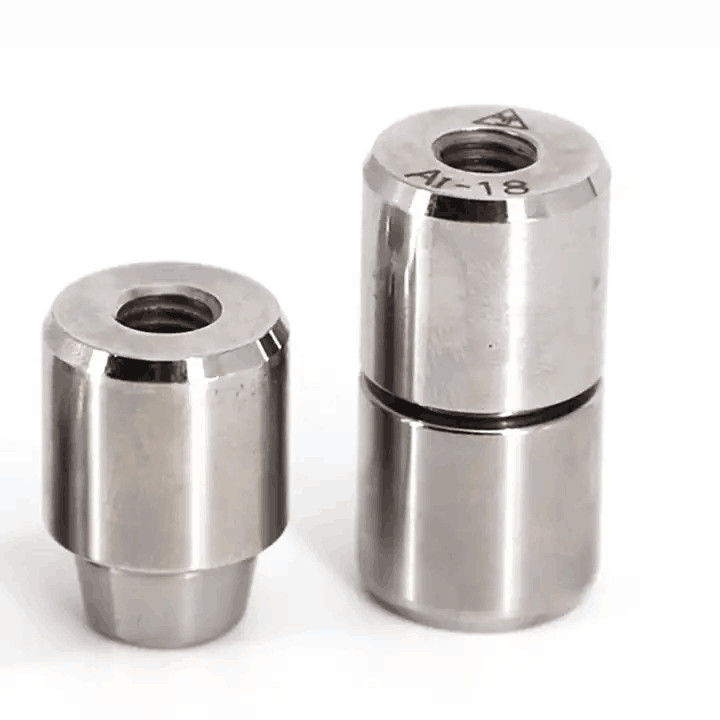

The 62HRC round interlock taper lock locating unit is a precision plastic injection mold component designed for accurate mold alignment and repeatable positioning.
Manufactured according to DME and DIN standards or strictly to customer drawings, this high-hardness locating unit ensures stable mold guidance, reduced wear, and reliable performance in multi-cavity, high-cycle injection molding applications for packaging and medical products.

Key Features & Technical Advantages

• Manufactured to DME / DIN standard or built-to-print specifications

• High surface hardness up to 62 HRC for improved wear resistance

• Round interlock taper lock design for precise mold alignment

• Ensures repeatable mold closing and accurate cavity positioning

• Suitable for multi-cavity and high-cycle injection molds

• Stable performance in automated and continuous molding operations

Applications & Industries

This round interlock taper lock locating unit is widely used in plastic injection molds for:

• Bottle caps and closure molds

• Packaging containers and functional plastic components

• Medical disposable and syringe-related molds

• Injection molds requiring high-precision locating and guiding systems

Typical customers include packaging manufacturers, cap and closure producers, medical consumable factories, and OEM injection mold makers.

Mold Structure & Design Description

The round interlock taper lock functions as a mold locating and guiding element installed between mold halves.
Its tapered locking structure ensures accurate centering during mold closing, minimizes lateral displacement, and improves overall mold stability.
Key design considerations include taper accuracy, surface hardness, wear resistance, and compatibility with multi-cavity mold structures.

Manufacturing & CNC Machining Capability

All locating units are manufactured in-house using precision CNC machining and controlled heat treatment processes.

Manufacturing capabilities include:

• Precision CNC milling and turning

• Taper surface machining with tight tolerance control

• Controlled heat treatment to achieve up to 62 HRC hardness

• Precision grinding for accurate fit and repeatability

In-house inspection equipment is applied throughout production to ensure dimensional accuracy and functional reliability.

Custom Development & OEM Cooperation Process

We provide full OEM and built-to-print manufacturing support for mold locating units:

1. Review of DME / DIN standard requirements or customer drawings

2. Engineering evaluation and manufacturability confirmation

3. Precision CNC machining and heat treatment

4. Dimensional and functional inspection

5. Packaging and delivery for overseas mold assembly

All products are manufactured strictly according to customer specifications or standard requirements.

Quality Control & Export Experience

Quality control is integrated throughout the manufacturing process, including:

• Incoming raw material inspection

• In-process dimensional and hardness verification

• Final inspection prior to shipment

Our mold locating components are widely supplied for export-oriented packaging and medical mold projects, supporting overseas mold assembly and international manufacturing standards.

Related Products (Internal Links)

• Precision Mold Locking Devices

• Injection Mold Interlock and Locating Units

• Multi-Cavity Injection Mold Components

• CNC Machined Standard Mold Parts

Frequently Asked Questions (FAQ)

Q1: Can you manufacture round interlock taper locks according to DME or DIN standards?
Yes. We manufacture locating units according to DME / DIN standards or strictly based on customer drawings.

Q2: Is 62 HRC hardness suitable for high-cycle injection molds?
Yes. High surface hardness significantly improves wear resistance and service life in high-cycle applications.

Q3: What materials and surface treatments are available?
Material selection and heat treatment processes can be customized based on mold design and operating conditions.

Q4: Do you support overseas mold projects and export delivery?
Yes. Our mold locating units are commonly supplied for export mold projects and overseas injection molding production lines.

Request a Technical Quotation

Please send us your drawings or DME / DIN standard requirements to receive a professional technical evaluation and quotation for custom round interlock taper lock locating units.
