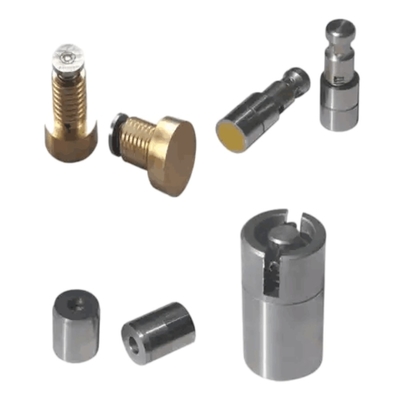

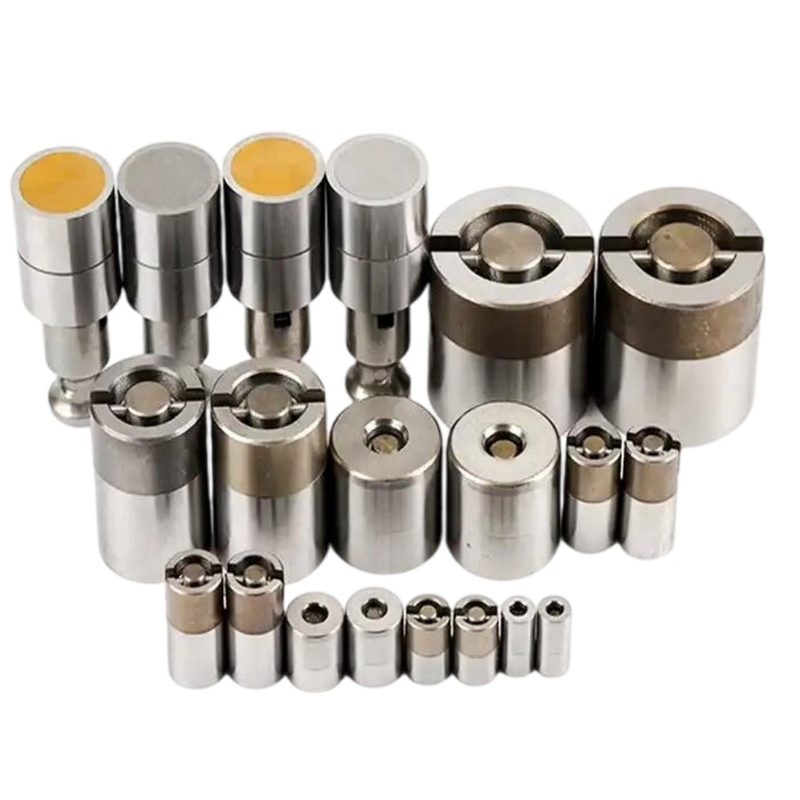

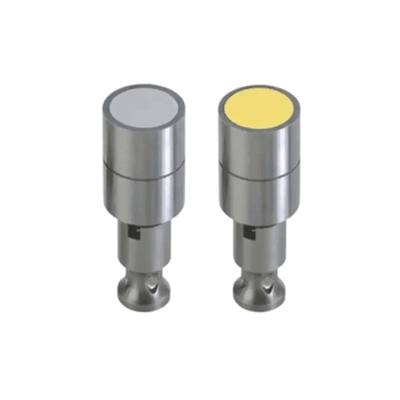

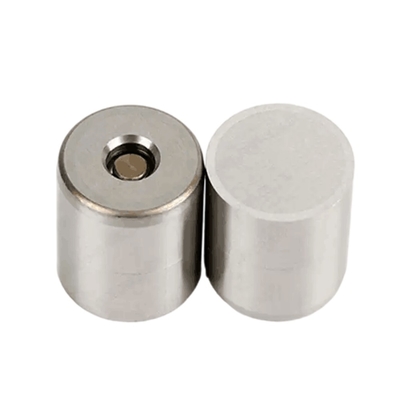

CUMSA Standard Air Valves

Precision Air Poppet Valve for Injection Molds

Product Overview

Our CUMSA standard air valves (air poppet valves) are precision mold components designed for controlled air-assisted ejection in plastic injection molds.

These valves are typically installed in the cavity or core area to introduce compressed air during mold opening or part ejection.
Their purpose is to:

Reduce part sticking

Improve demolding efficiency

Prevent vacuum formation

Minimize part deformation

Manufactured according to CUMSA standard specifications or strictly based on customer drawings, these air valves are suitable for high-cycle and multi-cavity injection molds.

Typical Applications

Air poppet valves are widely used in molds for:

Bottle caps and closures

Thin-wall packaging containers

Medical disposable components

Syringe and pharmaceutical parts

Technical parts requiring air-assisted demolding

They are particularly effective in molds where part geometry creates vacuum or strong adhesion to cavity surfaces.

Engineering Function

During mold opening or ejection, the air valve:

Activates under controlled timing

Releases compressed air into the cavity/core surface

Breaks vacuum between part and steel surface

Assists smooth part release

This reduces mechanical stress on ejector pins and improves part surface quality.

Key Engineering Focus

Performance depends on sealing accuracy, internal passage precision, and response stability.

1) Precision Internal Machining

Critical areas include:

Internal air channel geometry

Valve seat precision

Poppet alignment

Concentric sealing surfaces

Dimensional stability ensures reliable opening and closing without leakage.

2) Sealing Reliability

Air poppet valves must maintain:

Tight sealing under injection pressure

Controlled air release timing

Stable performance under high-cycle operation

Precision grinding of sealing surfaces is essential to prevent air leakage.

3) Multi-Cavity Compatibility

In multi-cavity molds:

Air flow must remain consistent

Valve response timing must be stable

Maintenance access should be simplified

Proper installation positioning is evaluated during mold design.

Technical Specifications

Product Type: Air Poppet Valve / Mold Air Valve

Standard: CUMSA standard or Built-to-Print

Installation: Cavity or core area

Function: Air-assisted ejection

Manufacturing: Custom CNC machining

Inspection: Dimensional and functional verification

Material and surface treatments are selected according to mold operating conditions.

Manufacturing Capability

All air valve components are produced in-house using:

CNC turning and milling

Precision grinding

Internal air passage machining

Assembly and functional testing

Dimensional verification is performed using calibrated inspection equipment.

Quality Control

Each air valve undergoes:

Raw material verification

Dimensional inspection

Functional testing for air response

Final inspection before shipment

Inspection reports can be provided upon request.

OEM / Built-to-Print Manufacturing

We support:

Manufacturing according to CUMSA standard

Full customization based on customer drawings

Replacement-compatible components

Integration into export mold projects

All production follows customer technical specifications.

Related Applications

Air valves are commonly integrated with:

Multi-cavity injection molds

Packaging mold systems

Medical mold components

Precision mold core and cavity assemblies

Technical FAQ

Q1: Can you manufacture fully compatible CUMSA standard air valves?
Yes. Production follows CUMSA standard dimensions or customer-provided drawings.

Q2: Are these suitable for high-cycle molds?
Yes. Designed for stable operation in continuous production environments.

Q3: Can materials be customized?
Yes. Material and surface treatments can be adjusted according to application requirements.

Q4: Is air leakage tested before shipment?
Yes. Functional inspection is performed to ensure sealing reliability.

Q5: Are these compatible with multi-cavity packaging molds?
Yes. Commonly used in multi-cavity cap and packaging molds.

Request a Technical Quotation

Please provide:

CUMSA standard reference or technical drawings

Mold type and application details

Operating air pressure

Required quantity

Our engineering team will review your project and provide a technical proposal.
