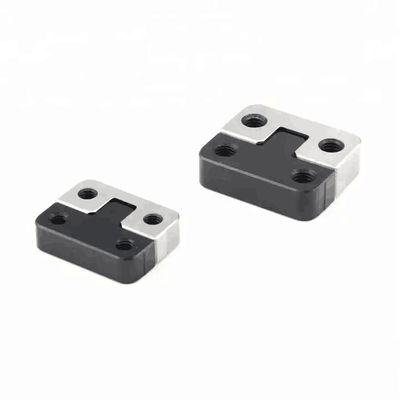

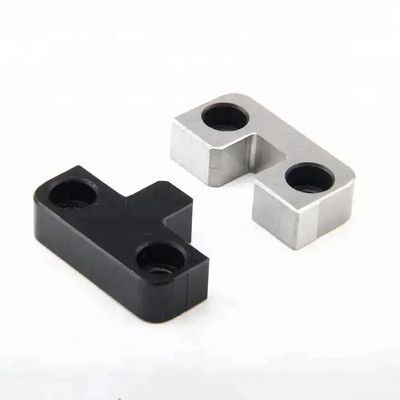

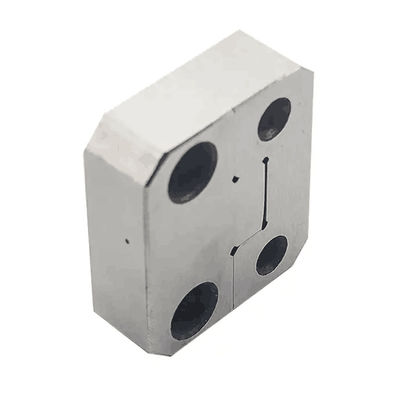

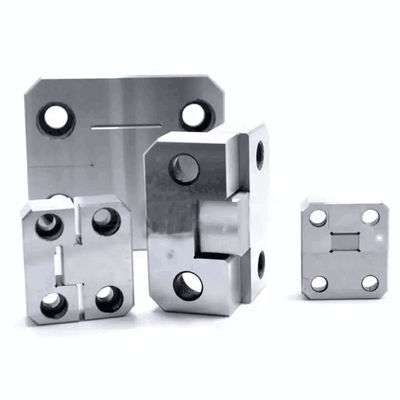

62HRC TSSB Square Interlocks | HASCO / DME / Misumi Standard

The TSSB square interlock for plastic molds is a precision mold standard part designed to ensure accurate mold positioning and alignment.
Manufactured according to HASCO, DME, and Misumi standards or strictly based on customer drawings, this square interlock offers enhanced performance with 62HRC hardness, ensuring durability and precise positioning in high-cycle plastic injection molds for packaging and medical industries.

• Manufactured to HASCO, DME, and Misumi standard specifications or built-to-print requirements
• 62HRC hardness for improved wear resistance and durability
• Square interlock design for secure mold alignment and positioning
• Suitable for multi-cavity, high-cycle injection molds
• Compatible with automated molding systems and continuous production lines
• Designed for stable, repeatable mold closing and alignment throughout injection cycles

The TSSB square interlock is widely used in plastic injection molds for:

• Bottle caps and closures
• Packaging containers and functional plastic components
• Medical disposables and syringe-related products
• Injection molds requiring precise alignment for undercuts or complex geometries

Typical customers include packaging manufacturers, cap and closure producers, medical consumable factories, and OEM injection mold manufacturers.

The TSSB square interlock functions as a mold positioning component that ensures the mold halves are securely aligned during the mold opening and closing cycles.
It maintains precise alignment, reducing the risk of misalignment and preventing flash during the injection process.
Design considerations include tolerance control, wear resistance, and compatibility with multi-cavity mold configurations for stable and repeatable mold function.

All TSSB square interlocks are manufactured in-house using precision CNC machining and heat treatment processes to achieve optimal hardness.

Manufacturing capabilities include:

• Precision CNC milling and turning of mold components
• Tight tolerance control for precise alignment surfaces
• Heat treatment to achieve 62HRC hardness for wear resistance
• Precision grinding for accurate fit and repeatability

In-house inspection equipment is used throughout production to ensure dimensional accuracy and high-performance standards.

We provide full OEM and built-to-print manufacturing support for TSSB square interlocks:

1. Review of HASCO, DME, and Misumi standard requirements or customer drawings
2. Engineering evaluation and manufacturability confirmation
3. Precision CNC machining, heat treatment, and finishing
4. Dimensional and functional inspection to ensure alignment and performance
5. Packaging and delivery for overseas mold assembly

All products are manufactured according to specific customer requirements or standard specifications.

Quality control is integral to our manufacturing process, ensuring each component meets the highest standards:

• Incoming raw material inspection
• In-process dimensional verification
• Final inspection to confirm dimensional accuracy and functional reliability

Our square interlocks are widely supplied for export-oriented packaging and medical mold projects, supporting overseas mold assembly and international manufacturing standards.

• Precision Mold Core and Cavity Components
• Injection Mold Slide Components
• Multi-Cavity Injection Mold Parts
• CNC Machined Mold Standard Parts

Q1: Can you manufacture TSSB square interlocks according to customer drawings?
Yes. We offer full custom manufacturing based on customer drawings or industry standards such as HASCO, DME, and Misumi.

Q2: Is 62HRC hardness suitable for high-cycle mold applications?
Yes. 62HRC hardness improves wear resistance and durability, making it ideal for high-cycle injection molding.

Q3: Are these interlocks compatible with multi-cavity molds?
Yes. The TSSB square interlock is designed to ensure precise mold alignment and stable performance in multi-cavity molds.

Q4: Do you support overseas mold projects and export delivery?
Yes. We have extensive experience in supporting overseas mold projects and international shipping for our mold components.

Please send us your drawings or standard requirements to receive a detailed technical evaluation and quotation for custom TSSB square interlocks and mold positioning components.
