Hot Runner Multi-Cavity Bottle Cap Mold for Plastic Closure Manufacturing

Product Overview

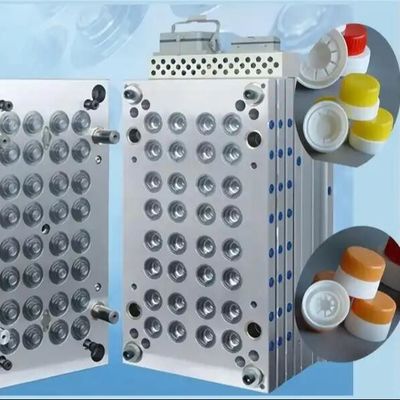

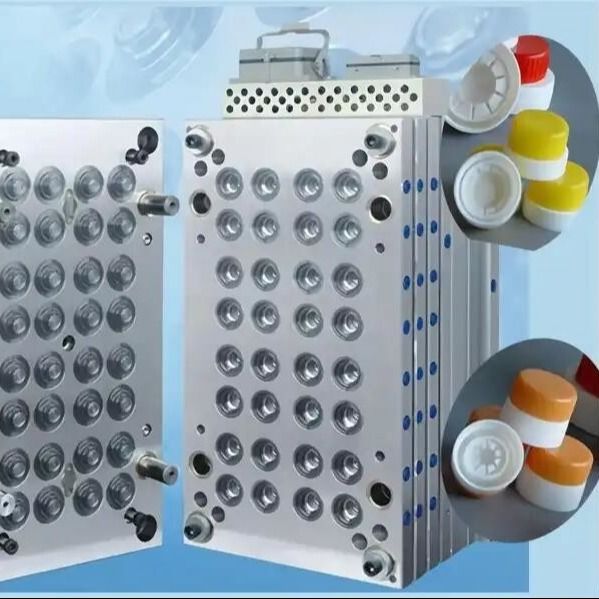

A Hot Runner Multi-Cavity Bottle Cap Mold is a high-precision injection mold designed for mass production of plastic bottle caps and closures used in beverage, food, cosmetic, and pharmaceutical packaging.

This mold integrates advanced hot runner technology with multi-cavity design, enabling high production efficiency, reduced material waste, and consistent product quality.

Our bottle cap molds are engineered for high-speed injection molding machines and are widely used by packaging manufacturers worldwide. With precision machining, high-quality tool steel, and optimized cooling systems, the mold ensures long service life and stable production performance.

Product Description

The multi-cavity bottle cap injection mold is specifically designed for high-volume manufacturing of plastic closures. The hot runner system distributes molten plastic evenly to each cavity, eliminating cold runners and improving material efficiency.

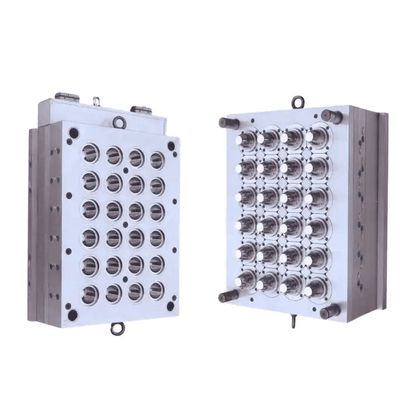

Typical cavity configurations include:

• 16 Cavity Cap Mold

• 24 Cavity Cap Mold

• 32 Cavity Cap Mold

• 48 Cavity Cap Mold

• 64 Cavity Cap Mold

Key design features include:

• Precision core and cavity inserts

• Balanced hot runner distribution system

• Optimized cooling channels

• High-polish cavity surfaces

• Excellent thread forming accuracy

These features ensure consistent cap dimensions, smooth surface finish, and reliable sealing performance.

Applications

The plastic bottle cap mold is widely used in packaging manufacturing industries, including:

Beverage Industry

• Mineral water bottle caps

• Soft drink caps

• Sports drink closures

Food Packaging

• Sauce bottle caps

• Cooking oil caps

• Condiment closures

Cosmetic Packaging

• Shampoo bottle caps

• Lotion bottle caps

• Flip-top cosmetic closures

Pharmaceutical Packaging

• Medicine bottle caps

• Child-resistant closures

The mold is suitable for processing common thermoplastics, such as:

• PP (Polypropylene)

• PE (Polyethylene)

• HDPE

Precision & Manufacturing Capabilities

Our manufacturing facility is equipped with advanced equipment to produce high-precision injection molds and mold components.

Key capabilities include:

• High-precision CNC machining centers

• Wire EDM processing

• Mirror EDM for complex cavities

• Precision grinding and polishing

• Professional heat treatment processes

• Dimensional tolerance up to ±0.005 mm

Each mold is carefully inspected and tested before shipment to ensure stable performance during mass production.

Why It Matters for Packaging Manufacturers

Choosing a high-quality bottle cap mold directly affects production efficiency, product quality, and manufacturing costs.

Our molds deliver key benefits:

Higher Production Efficiency

Multi-cavity design increases output per injection cycle.

Reduced Material Waste

Hot runner technology eliminates cold runner waste.

Consistent Product Quality

Precision machining ensures uniform cap threads and sealing surfaces.

Longer Mold Service Life

High-grade mold steel and heat treatment improve durability.

Lower Maintenance Cost

Optimized mold structure reduces wear and downtime.

What We Need for Quotation

To provide an accurate quotation, please send us the following information:

• Bottle cap 3D drawing or product sample

• Cap diameter and thread specification

• Required number of cavities

• Plastic material used (PP / HDPE, etc.)

• Target production capacity

• Injection molding machine details (optional)

Our engineering team will analyze your project and recommend the most suitable mold design.

FAQ

What cavity numbers can be designed for bottle cap molds?

Common cavity options include 16, 24, 32, 48, and 64 cavities, depending on production requirements.

What mold materials are used?

We typically use high-quality mold steels such as:

• S136

• H13

• SKD61

These materials provide excellent wear resistance and corrosion resistance.

Can the mold be customized?

Yes. All molds are fully customized based on your product drawings, samples, and production requirements.

What hot runner systems are supported?

We can integrate various hot runner systems, including:

• YUDO

• Synventive

• Husky

• Chinese hot runner brands

Do you test molds before delivery?

Yes. All molds undergo trial runs and inspection before shipment to ensure proper performance.

Contact Our Engineering Team

If you are looking for a reliable bottle cap mold manufacturer, our engineering team is ready to assist.

Send us your drawings or samples, and we will provide:

• Professional mold design suggestions

• Competitive quotation

• Efficient manufacturing solutions

Contact us today to start your bottle cap mold project.
