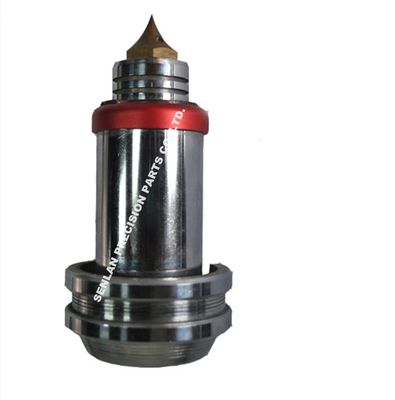

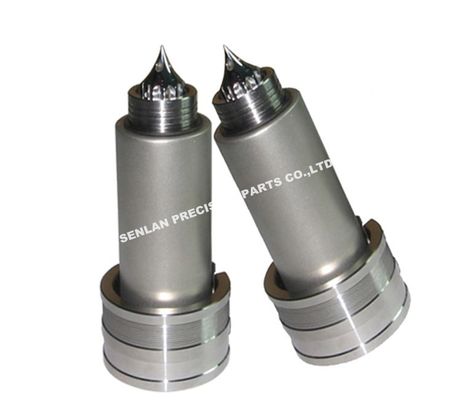

Plastic Mould Parts Hot Runner System Hot Runner Nozzle For Plastic Injection Mold

Product Overview

Hot runner nozzles are critical components of plastic injection mold hot runner systems, responsible for delivering molten plastic accurately into mold cavities. Senlan Precision manufactures hot runner nozzles through precision CNC machining to ensure stable flow control, thermal reliability, and dimensional consistency. All nozzles are custom manufactured strictly according to customer drawings and system specifications for integration into various hot runner configurations.

Key Features & Technical Advantages

• Precision CNC machined hot runner nozzles for injection molds

• Designed for stable melt flow and thermal balance

• Accurate nozzle geometry for consistent cavity filling

• Reliable performance under continuous high-temperature operation

• Compatible with multi-cavity hot runner mold systems

• Consistent surface quality for reduced material degradation

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These hot runner nozzles are widely used in:

• Injection molds for packaging caps and closures

• Multi-cavity molds for bottle caps and sealing components

• Medical packaging and syringe-related injection molds

• Precision plastic injection molds requiring hot runner systems

They are especially suitable for applications requiring stable melt delivery, repeatable molding cycles, and high production efficiency.

Mold Structure & Design Description

Hot runner nozzles are installed within the hot runner manifold system and function as the interface between the heated melt channel and the mold cavity.
Key design considerations include:

• Accurate nozzle length, diameter, and tip geometry

• Proper thermal insulation and heat transfer control

• Reliable sealing between nozzle and mold cavity insert

• Compatibility with manifold layout and cavity arrangement

All hot runner nozzles are manufactured strictly according to customer drawings to ensure correct system integration and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures hot runner nozzles using advanced CNC machining and precision finishing technologies.
Our production facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• High-accuracy CNC turning and milling for nozzle components

• Stable dimensional control for critical interfaces

• Consistent surface finish for melt flow paths

• Reliable repeatability for customized and replacement hot runner parts

Machining routes are selected based on nozzle structure, tolerance requirements, and system design.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production from 2D drawings or 3D models

• Customized hot runner nozzle designs and dimensions

• Material selection based on processing temperature and resin type

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare hot runner components

Technical communication is maintained throughout the project to ensure accurate execution of customer specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision applies a structured quality control process:

• Incoming material inspection and traceability

• In-process dimensional inspection during CNC machining

• Final inspection prior to shipment

• Complete inspection records and technical documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Hot runner manifolds

• Hot runner tips and sleeves

• Mold cavity inserts

• Multi-cavity injection mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are hot runner nozzles manufactured strictly according to drawings?
Yes. All hot runner nozzles are produced strictly based on customer-provided drawings and system specifications.

Q2: Can these nozzles be used in multi-cavity hot runner molds?
Yes. The nozzles are suitable for both single-cavity and multi-cavity hot runner systems.

Q3: What machining accuracy can be achieved?
Precision tolerances suitable for hot runner applications can be achieved depending on geometry and design requirements.

Q4: Can replacement hot runner nozzles be manufactured for existing systems?
Yes. Replacement and interchangeable nozzles can be manufactured to match existing hot runner designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding hot runner nozzles for plastic injection molds, please provide your drawings or system specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
