2023 SUS420 Replaceable Core Date Stamp for Injection Mold

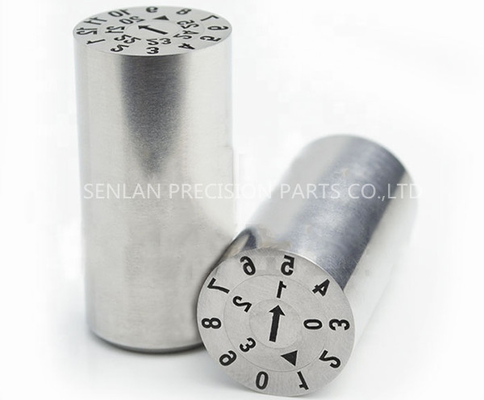

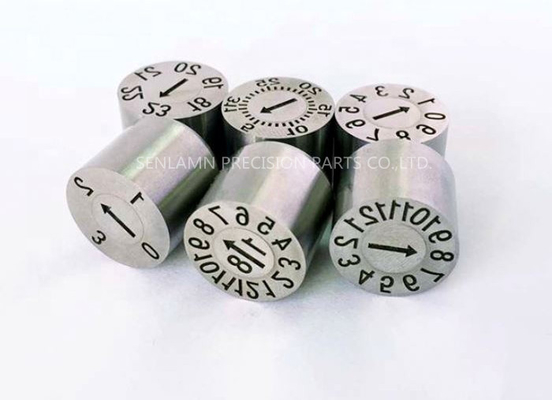

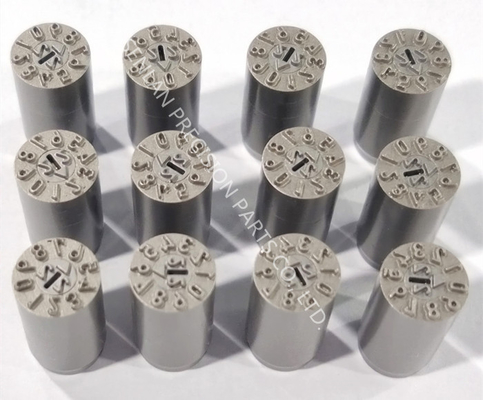

Replaceable Core Mold Date Inserts are specially designed for plastic injection molds. Featuring a unique indexable, snap-in arrow alignment system, these inserts maintain the inner insert flush for three full rotations.
Specifications
| Product Name |
Mold Date Inserts |
| Material |
SUS420 |
| Hardness |
HRC48-54 |
Technical Details: Numerals are 0.2mm deep, arrow is 0.4mm deep. Arrow functions as adjustment slot. Maximum operating temperature is 150°C (300°F).
Installation & Machining: Press-fit installation required. Maintain close tolerance press fit (approximately 0.005mm/.0002″). Too loose could allow insert movement, while too tight might prevent inner insert rotation.
Features & Benefits
- Front removable inserts with replaceable spring to prevent inner insert movement during molding
- Indexable inserts feature "captured spring" in outer insert and ball detent on inner insert for secure locking
- Arrow functions as adjustment slot for easy access
- Easily replace or adjust inner insert while mold is in the press
- Numerals: 0.2mm deep, Arrow: 0.4mm deep
Main Products
- Core pin, cavity pin, insert pin etc.
- HSS punch, Precision punch, Special-shaped punch
- Ejector pins, ejector sleeve, two-stage ejector pins etc.
- Guide pillars, Guide bushings, Guide post set
- Slide Core Units, Latch locks, locating Series
Our Advantages
- Specialized manufacturer of precision mould parts
- 8 years experience in stamping die parts, injection die parts, auto parts, and metal-working products
- Advanced production equipment with experienced operators
- Extensive OEM and ODM experience
- Competitive pricing, high quality standards, and fast delivery
Delivery, Payment & Packaging
Payment Terms: T/T, Paypal, Western Union (50% deposit, balance before shipment)
Shipping: DHL, TNT, Fedex available
Outer Packaging: Cartons with foam packing or wooden boxes
Inner Packaging: Sponge with plastic bag
Delivery Methods: By air or by sea
How to Order
- Send us drawing or standard code & size
- We will quote within 4 hours
- Agree on price and sign PO or Contract
- Make payment in advance
- If sample required, we will make sample first
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are factory.
Q: Do you supply customized service?
A: Yes, we supply customized service including quantity adjustments and LOGO printing.
Q: Are the pictures the same as the real products?
A: Yes, but pictures show only sample products. Contact us for specific size or design requirements.
Q: How about the price range?
A: Pricing depends on raw material costs, exchange rates, and quality specifications. Contact us for current pricing based on your order quantity.
Our enthusiastic customer service team is ready to assist with any questions. Contact us today to discuss your requirements and begin building a long-term partnership.
